8.0 Flue Options
© Baxi Heating UK Ltd 2013
Key Accessory Size Code No
FLUE GROUP A
Concentric Flue System 100mm diameter
A3 Telescopic Internal Flue Kit 315-500mm 5119654
A2 Telescopic Flue (incl elbow) 5118069
A Horizontal Flue Terminal (incl elbow) 5118489
B Flue Extension 1000mm 5111074
C Flue Bend 93° 5111075
D Flue Bend (pair) 135° 5111085
U Pipe Support (painted) 100mmØ 5111080
R Vertical Flue Adaptor 5111070
P Wall Liner 5111067
S Flue Terminal Deflector 5111068
FLUE GROUP N
Twin Flue System 80mm diameter
E Flue Extension (pair) 1000mm 5111087
F Flue Bend (pair) 90° 5111072
G Flue Bend (2 pair) 135° 5111086
J Vertical Flue Boiler Adaptor Kit 720089801
H Vertical Flue Adaptor 5111084
W Pipe Support (pair) 80mm 5111081
Y Flue Termination Kit
(horizontal termination) 80mm 5120172
Z Single Terminal 80mm 5121791
Q Adaptor 60/80 5121792
T Pitched Roof Terminal 25°/45° 5106164
FLUE GROUP G
Flue System 80/125mm diameter
A4 Horizontal Flue Kit 5118580
B Straight Extension Kit 1000mm 5118584
D Bend Kit (pair) 135° 5118597
C Bend 91.5° 5118588
FLUE GROUP A, N, G
Vertical Flue Kits
K Vertical Flue Terminal
(use with 5111070) 5111078
K1 Vertical Flue Terminal 5118576
L Pitch Roof Flashing 25°/50° 5122151
M Roof Cover Plate 246143
N Flat Roof Flashing 246144
A
B
K,K1
R
D
C
N
U,W
S
L
H
J
M
E
G
F
P

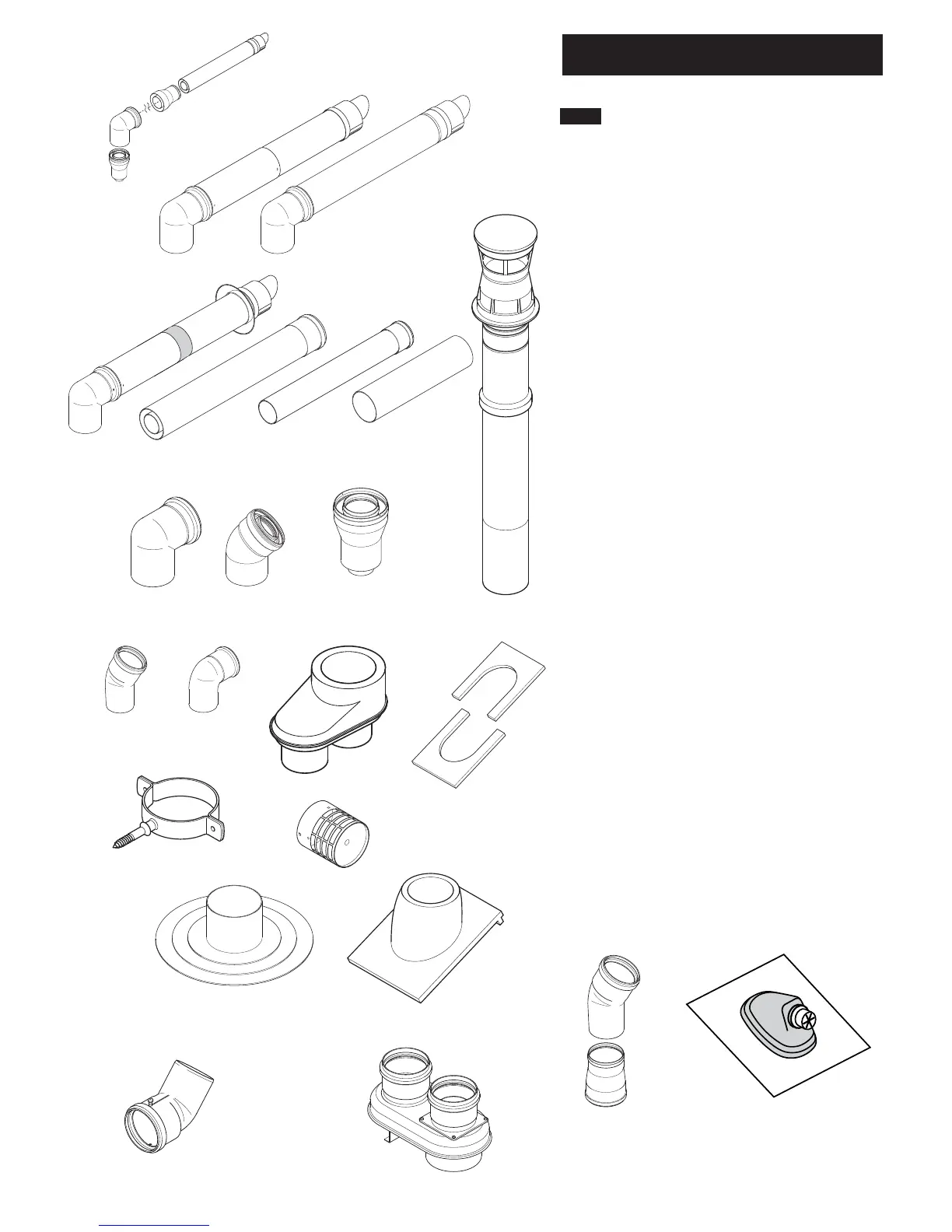

8.3 Flue Accessories
A2
A3
A4
Y,Z
Q
T
