8.0 Flue Options
© Baxi Heating UK Ltd 2013
8.4 Twin Flue Duct Adaptor
1. The kit allows connection of a twin flue system to the
boiler adaptor.
8.5 Twin Flue Connection
1. Engage the twin flue duct adaptor in the boiler adaptor,
making sure that it is pushed down as far as possible.
2. Ensure that the air & flue ducts are connected correctly
and that they are adequately supported (at least once every
metre using the available pipe supports).
3. Ensure that all joints and elbows are fully engaged and
cannot become disconnected during operation.

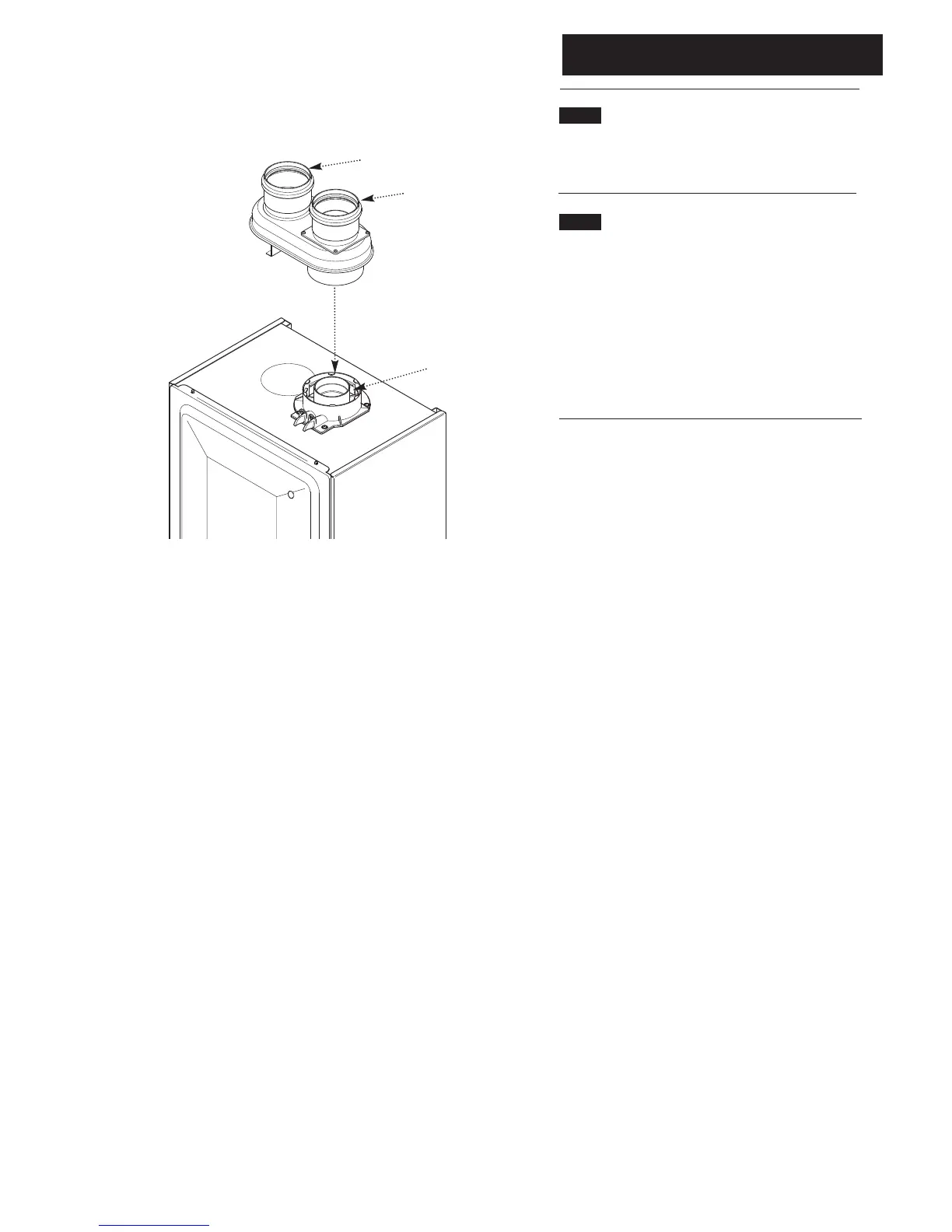

Flue Duct Connection
Boiler Adaptor
Air Duct Connection
