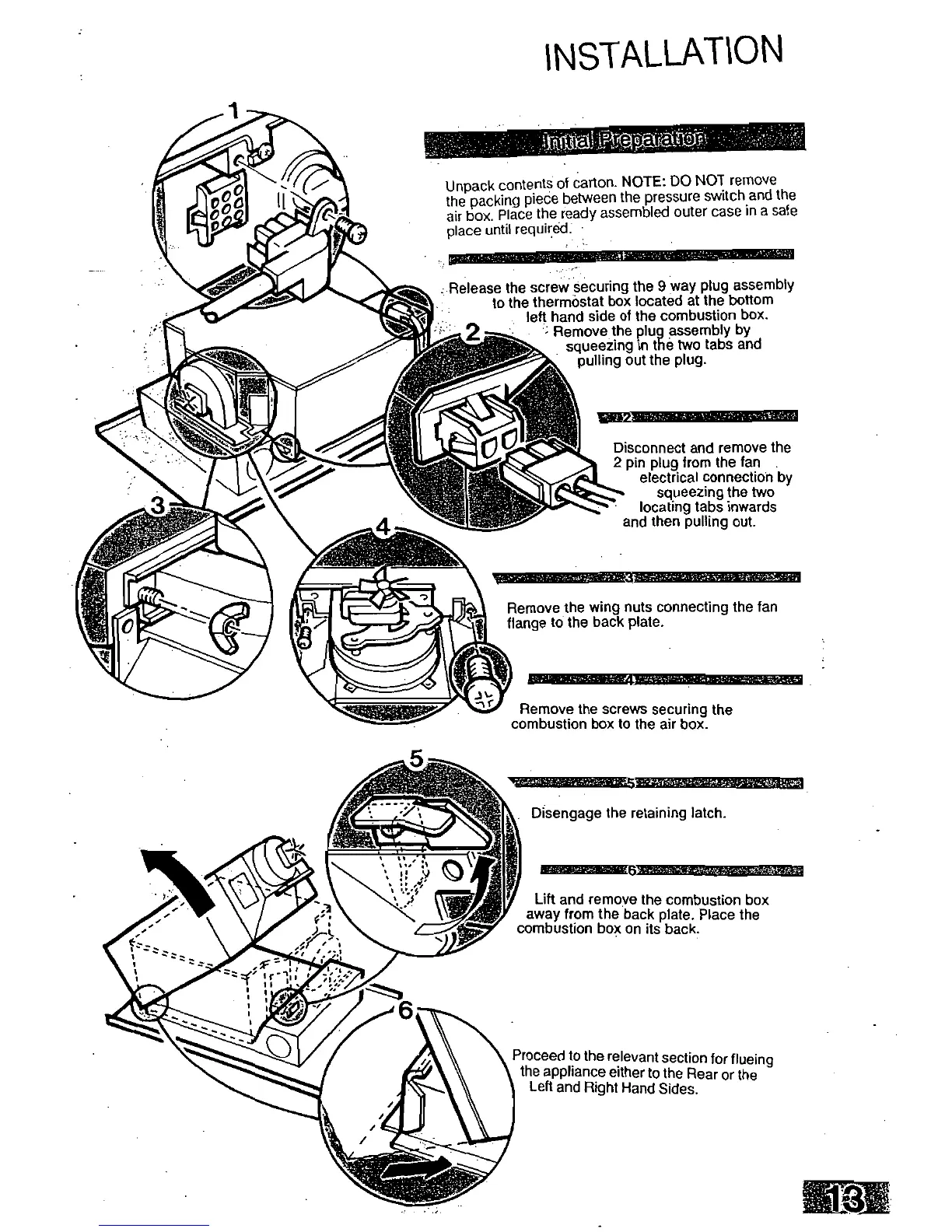

Unpack contents of carton. NOTE: DO NOT remove
the packing piece between the pressure switch and the
air box. Place the ready assembled outer case in a safe
place until required.
Release the screw securing the 9 way plug assembly
to the thermostat box located at the bottom
left hand side of the combustion box.
2
Remove the plug assembly by
squeezing in the two tabs and
pulling out the plug.
Disconnect and remove the
2 pin plug from the fan
electrical connection by
squeezing the two
locating tabs inwards
and then pulling out.
ISSIESIESSZEIMMEIBBEZIEEMBIEBEESES
Remove the wing nuts connecting the fan
flange to the back plate.
Remove the screws securing the
combustion box to the air box.
NEESZESIEMESIIMMEMEUESSMEEME8
Disengage the retaining latch.
MAIMIIITIZEKOZEMEESEZICIER
Lift and remove the combustion box
away from the back plate. Place the
combustion box on its back.
Proceed to the relevant section for flueing
the appliance either to the Rear or the
Left and Right Hand Sides.
INSTALLATION
