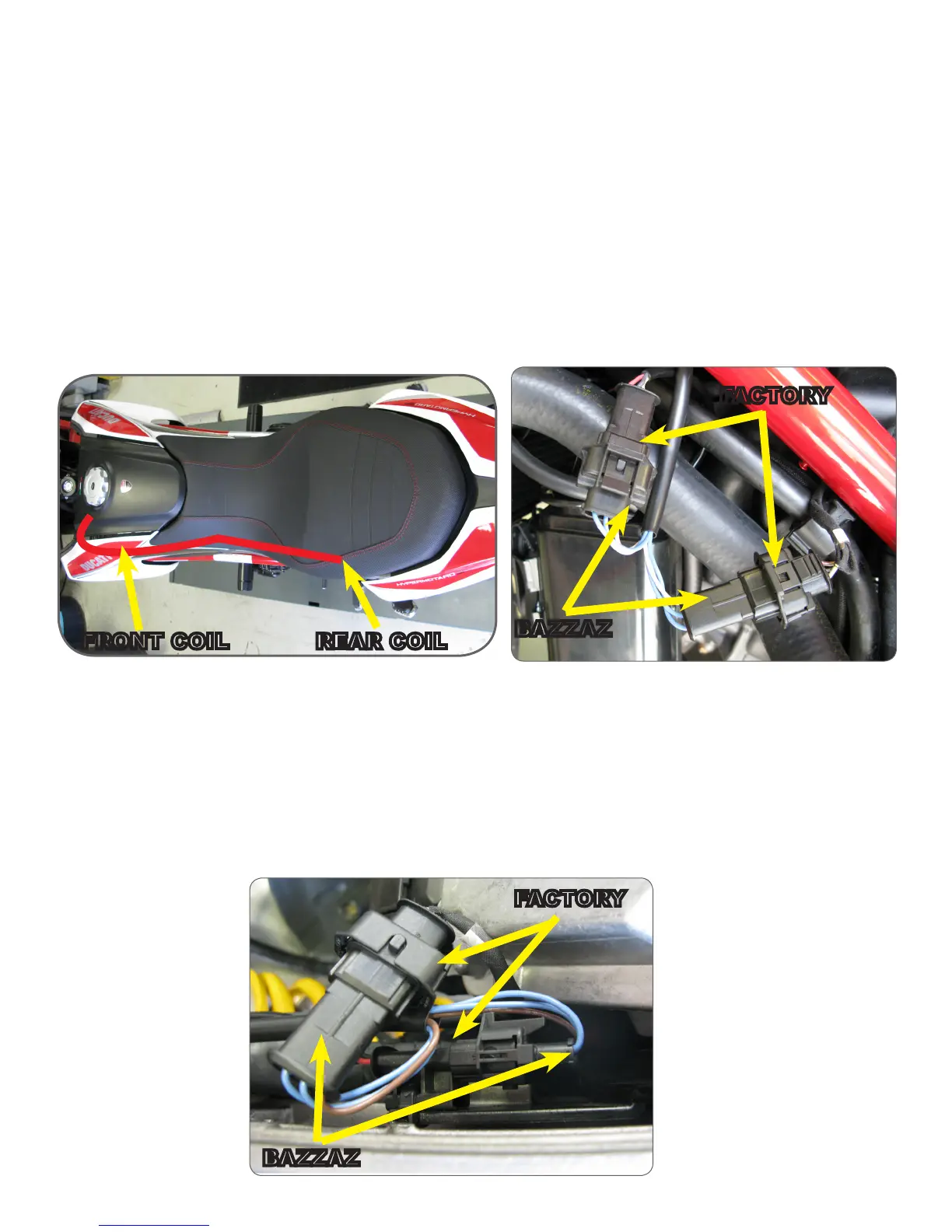

1. Connect the Bazzaz coil harness to the Bazzaz control unit, and begin to route the
harness towards the left side of the bike and back towards the tail section of the
bike.
2. Locate the factory front coil connector, mounted to the lower frame rail.
3. Disconnect the coil factory coil connector and install the Bazzaz front coil connector
inline.
6>CONNECT
(FOR USE WITH Z-FI TC ONLY!)
6.1
1. Locate the factory rear coil connector, which can be found on the left hand side of
the bike near the factory ECU.
2. Disconnect the factory rear coil connector, and install the Bazzaz coil connector
inline.
6.2
FACTORY
BAZZAZ
FACTORY
BAZZAZ
FRONT COIL REAR COIL
