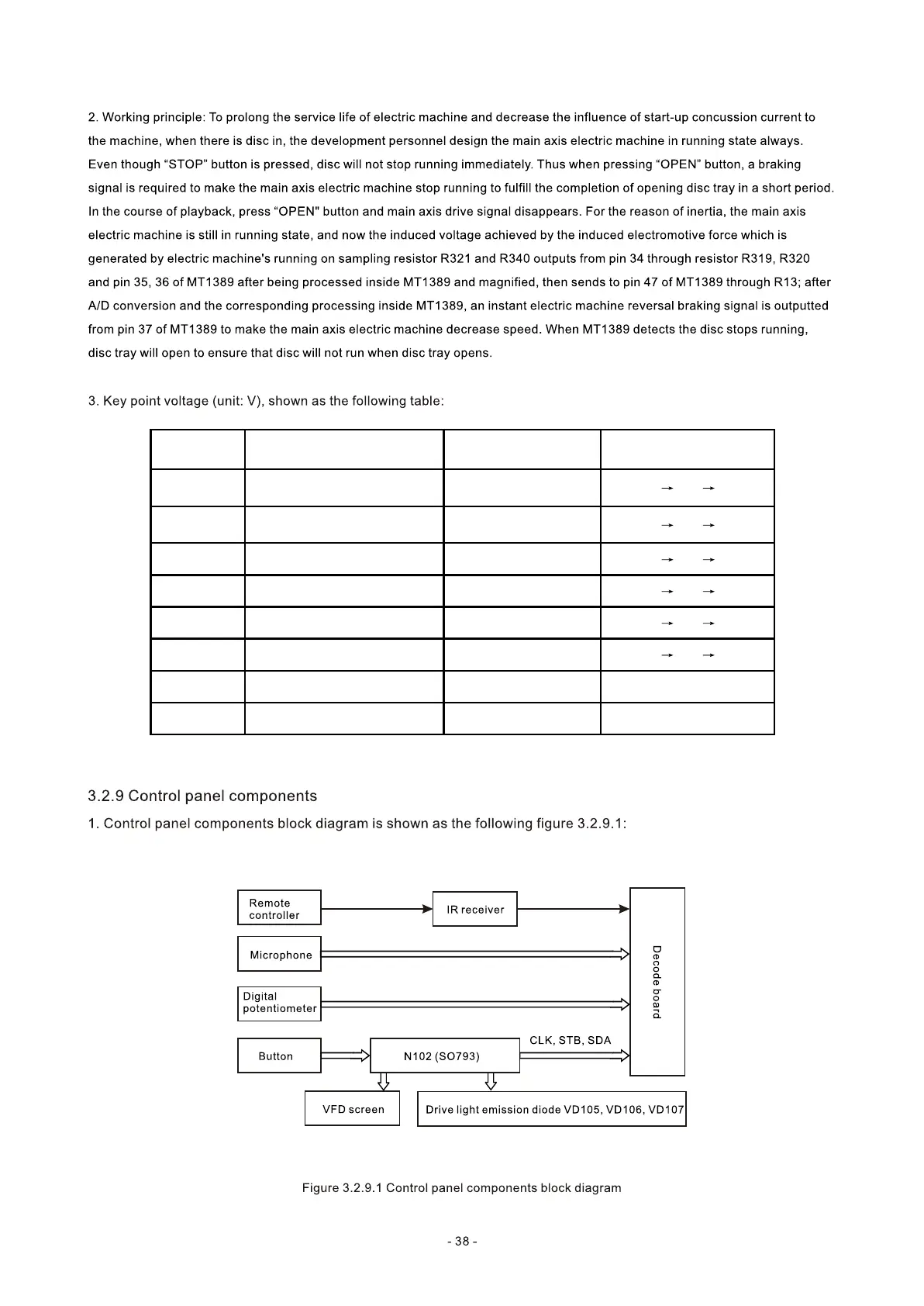

BBK DK1020S - Control Panel Components

Key point Position
Normal working voltage
(V)
Voltage change when disc
out (V)
SP+
Pin 11 of D5954, pin 5 of
XS303
3.79
3.79 0.70 1.80
SP-
Pin 12 of D5954, pin 6 of
XS303
1.38
1.38 3.40 1.80
OP+ Pin 36 of MT1389/B 1.38
1.38 3.10 1.80
OP- Pin 35 of MT1389/A 1.53
1.53 3.08 1.98
OPO Pin 34 of MT1389/C 2.44
2.44 0.40 2.50
ADIN Pin 47 of MT1389/D 2.44
2.41 0.41 2.44
DMSO Pin 5 of D5954 1.42 1.42
VIP4 Pin 30 of MT1389 1.41 1.41
