Chapter 2: Field Service Menu
Date Format
Language
selects a date format of month/day/year.
selects a European date: day/month/year.
Selects the language for all displayed text: English, French,
German, Spanish, or Italian.
NOTE: When the language is changed, you will not see the
display in that language until after you exit the Service
menu. The monitor will power down and the new
language is loaded at power up.
Low ETCO2
Bench V
Bench Temp
Bench P
FiO2 ADC
BattV
inCO2=1 7 RR= 18: т
%O2= 211 HR=1341
0.980 602 36mmHg ΦΟΟ2 6
26.3 CO2 5.1%
728 ki = 1016.0
0375 k2 = 3030.6
7.19 DIEXIT] 96,

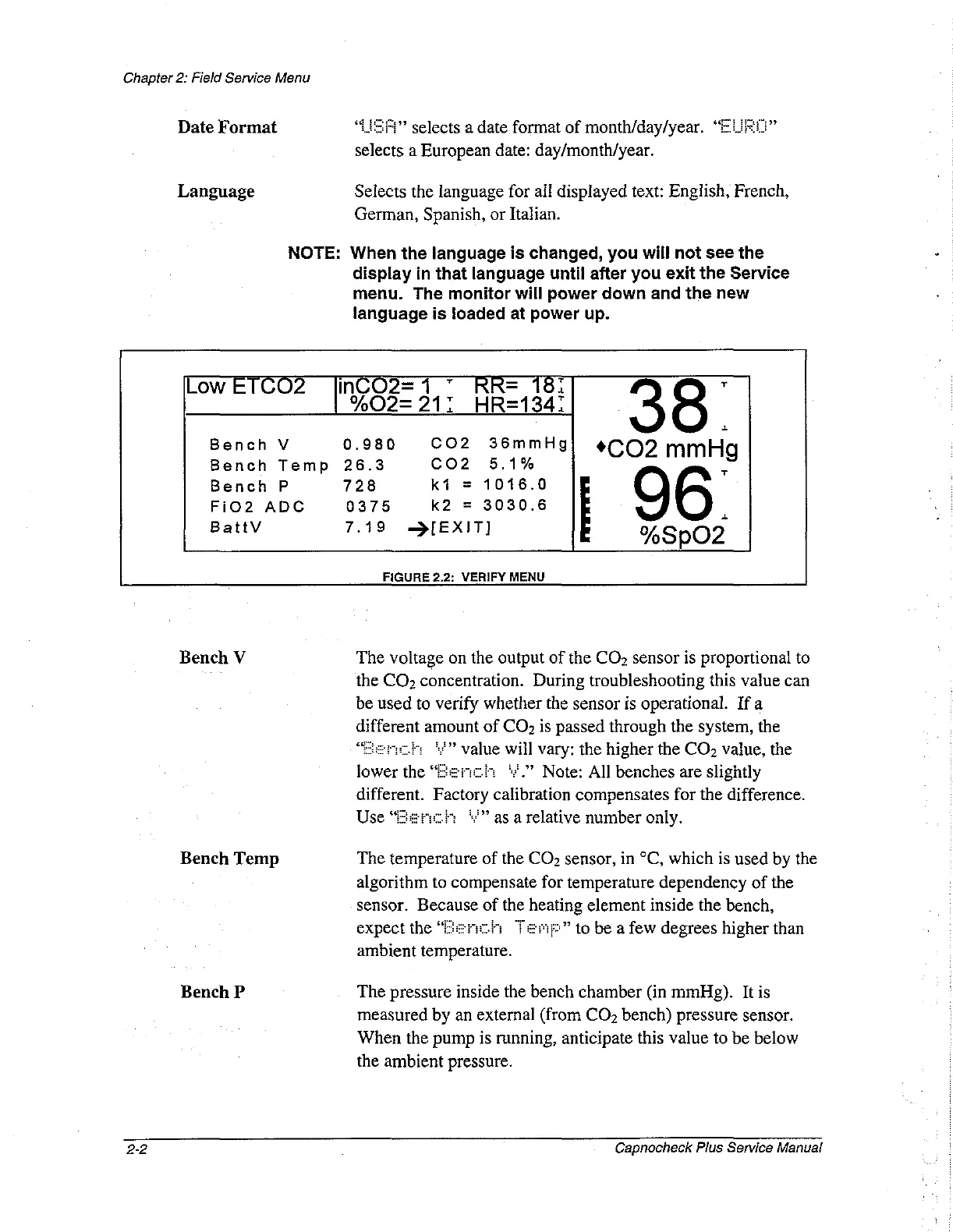

FIGURE 2.2; VERIFY MENU
Bench V
Bench Temp
Bench P
The voltage on the output of the CO; sensor is proportional to
the CO; concentration. During troubleshooting this value can
be used to verify whether the sensor is operational. If a
different amount of CO; is passed through the system, the
*” value will vary: the higher the CO: value, the
lower the 7.” Note: All benches are slightly
different. Factory calibration compensates for the difference.
Use“ “*” as a relative number only.
The temperature of the CO: sensor, in °C, which is used by the
algorithm to compensate for temperature dependency of the
sensor. Because of the heating element inside the bench,
expect the * ” to be a few degrees higher than
ambient temperature.
The pressure inside the bench chamber (in mmHg). Itis
measured by an external (from CO, bench) pressure sensor.
When the pump is running, anticipate this value to be below
the ambient pressure.
