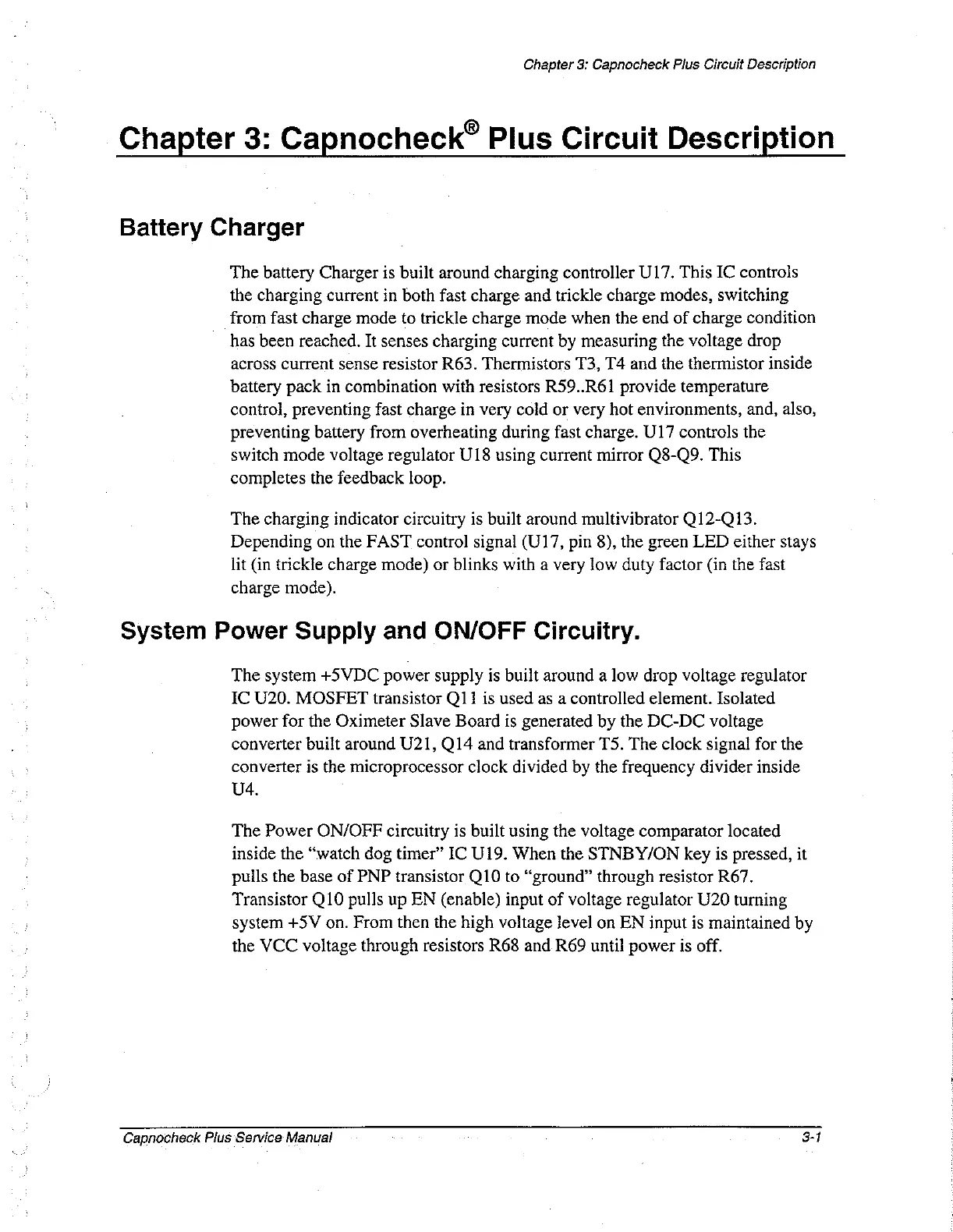

Chapter
3:
Capnocheck
Plus
Circuit
Description
Chapter
3:
Capnocheck®
Plus
Circuit
Description
Battery
Charger
The
battery
Charger
is
built
around
charging
controller
U17.
This
IC
controls
the
charging
current
in
both
fast
charge
and
trickle
charge
modes,
switching
from
fast
charge
mode
to
trickle
charge
mode
when
the
end
of
charge
condition
has
been
reached.
It
senses
charging
current
by
measuring
the
voltage
drop
across
current
sense
resistor
R63.
Thermistors
T3,
T4
and
the
thermistor
inside
battery
pack
in
combination
with
resistors
R59..R61
provide
temperature
control,
preventing
fast
charge
in
very
cold
or
very
hot
environments,
and,
also,
preventing
battery
from
overheating
during
fast
charge.
U17
controls
the
switch
mode
voltage
regulator
U18
using current
mirror
Q8-Q9.
This
completes
the
feedback
loop.
The
charging
indicator
circuitry
is
built
around
multivibrator
Q12-Q13.
Depending
on
the
FAST
control
signal
(U17,
pin
8),
the
green
LED
either
stays
lit
(in
trickle
charge
mode)
or
blinks
with
a
very
low
duty
factor
(in
the
fast
charge
mode).
System
Power
Supply
and
ON/OFF
Circuitry.
The
system
+5VDC
power
supply
is
built
around
a
low
drop
voltage
regulator
IC
U20.
MOSFET
transistor
O11
is
used
as
a
controlled
element.
Isolated
power
for the
Oximeter
Slave
Board
is
generated
by
the
DC-DC
voltage
converter
built
around
U21,
Q14
and
transformer
T5.
The
clock
signal
for
the
converter
is
the
microprocessor
clock
divided
by
the
freguency
divider
inside
Us.
The
Power
ON/OFF
circuitry
is
built
using
the
voltage
comparator
located
inside
the
“watch
dog
timer”
IC
U19.
When
the
STNBY/ON
key
is
pressed,
it
pulls
the
base
of
PNP
transistor
Q10
to
“ground”
through
resistor
R67.
Transistor
Q10
pulls
up
EN
(enable)
input
of
voltage
regulator
U20
turning
system
+5V
on.
From
then
the
high
voltage
level on
EN
input
is
maintained
by
the
VCC
voltage
through
resistors
R68
and
R69
until
power
is
off.
Capnocheck
Plus
Service
Manual
3-1
