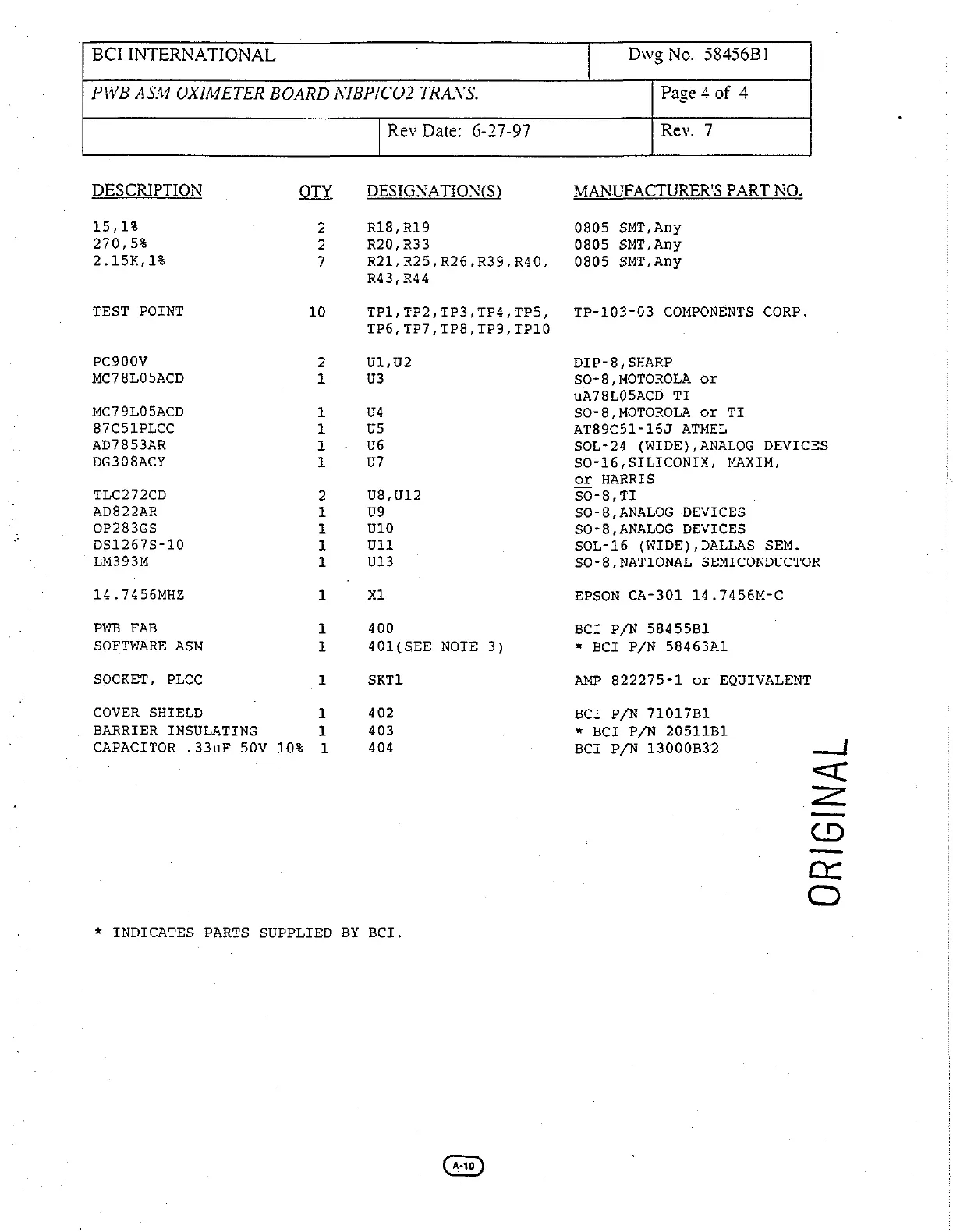

BCI Capnocheck Plus - Page 43

BCI INTERNATIONAL
Dwg No. 58456B1
PWB ASM OXIMETER BOARD NIBPiCO2 TRANS. Page 4 of 4
Rev Date: 6-27-97 ‘Rev. 7
DESCRIPTION QTY DESIGNATION(S) MANUFACTURER'S PART NO,
15,1% 2 R18,R19 0805 SMT,Any
270,5% 2 R20,R33 0805 SMT,Any
2.15K,1% 7 R21,R25,R26,R39,R40, 0805 SHT,Any
R43, R44
TEST POINT 10 TP1,TP2,TP3,TP4,TP5, TP-103-03 COMPONENTS CORP.
TP6,TP7,TP8,IP9,TP10
PC900V 2 U1,02 DIP-8,SHARP
MC78L05ACD 1 U3 SO-8,MOTOROLA or
uA78LO5ACD TI
MC79L05ACD 1 σ4 S0-8,MOTOROLA or TI
87C51PLCC 1 us AT89C51-16J ATMEL
AD7853AR 1 06 SOL-24 (WIDE),ANALOG DEVICES
DG308ACY 1 U7 SO-16,SILICONIX, MAXIM,
or HARRIS
TLC272CD 2 U8,U12 S0-8,TI .
AD822AR 1 ug SO-8, ANALOG DEVICES
0P283GS 1 U10 SO-8,ANALOG DEVICES
DS1267S-10 1 vil SOL-16 (WIDE),DALLAS SEM.
LM393M 1 U13 S0-8,NATIONAL SEMICONDUCTOR
14.7456MHZ 1 x2 EPSON CA-301 14.7456M-C
PWB FAB 1 400 BCI P/N 58455B1
SOFTWARE ASM 1 401(SEE NOTE 3) * BCI P/N 58463A1
SOCKET, PLCC 1 SKT1 AMP 822275-1 or EQUIVALENT
COVER SHIELD 1 402 BCI P/N 71017B1
BARRIER INSULATING 1 403 * BCI P/N 20511B1
CAPACITOR .33uF 50V 10% 1 404 BCI P/N 13000B32
* INDICATES PARTS SUPPLIED BY BCI.
ORIGINAL
