Bdcom S2528-B User Manual

S2528-B Hardware Installation Manual
- 1 -
Chapter 1 S2528-B Introduction
The section describes the characteristics and parameters of S2528-B and gives an
overview of S2528-B.
1.1 Appearance Description for Standard Configuration
The built-in ports of S2528-B are: 24 gigabit Ethernet Base-T ports, 4 gigabit
Ethernet SFP ports and 1 Console port. See table 1-1.
Port
Attribute
Gigabit Ethernet port
Base-T port: 10/100/1000M auto-adaptation, MDI/MDIX
auto-identification, UTP (RJ45) port
Gigabit Ethernet optical port
Optical port: 100/1000M SFP port, Link/Act indicators
Console port
A rate of 9600bps, RJ45 interface
Table 1- 1 Attributes of the built-in port

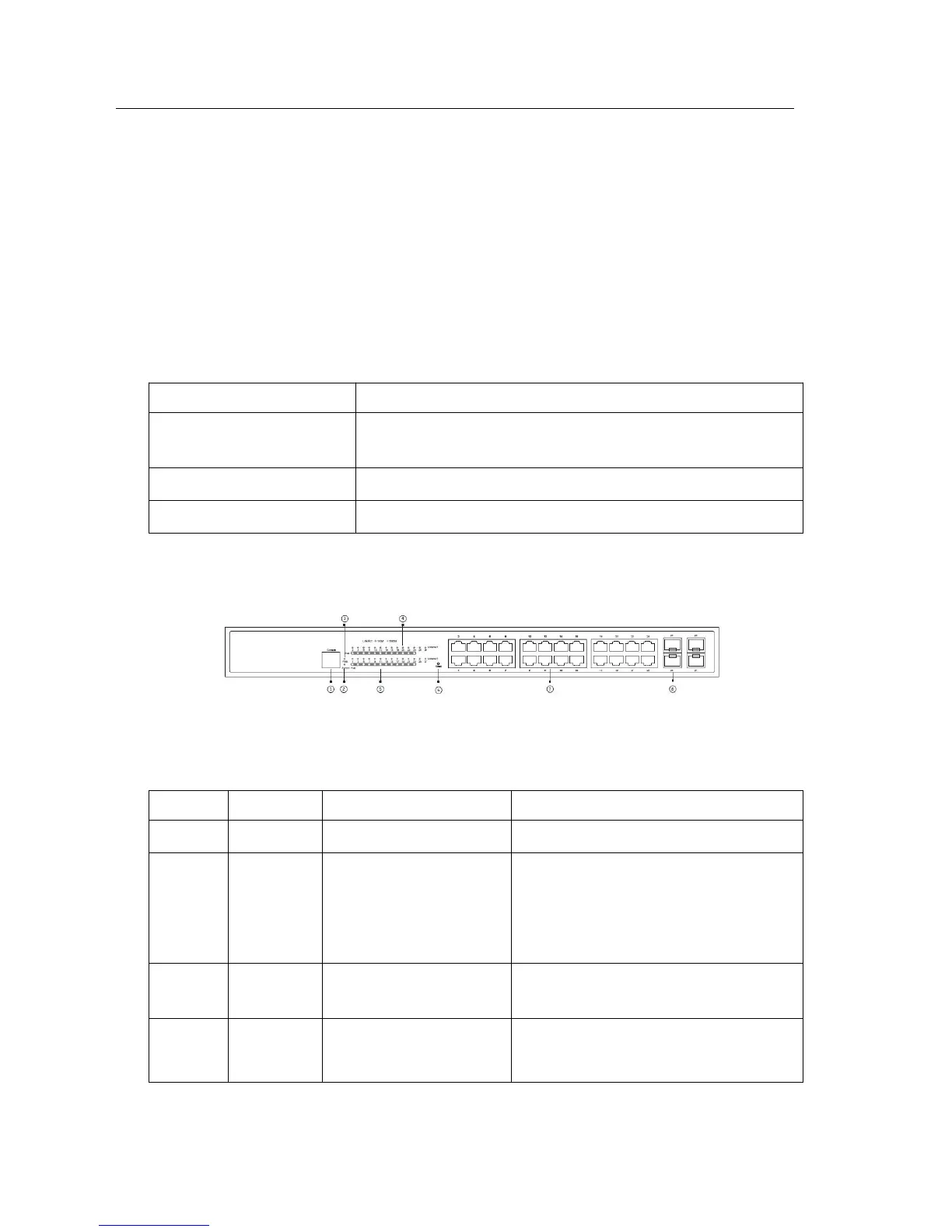

Figure 1-1 Front template of the S2528-B switch
No.
Abbrev.
Name
Description
1
CONSOLE
Console port
Manages the switch locally.
2
SYS
System indicator
If the indicator is always on, the system
is being started.
If the indicator flickers, the system works
normally.
3
PWR
Power indicator
If the switch is powered on, the indicator
is on.
4
Link/ACT
LINK/ACT indicator of
each port
If the indicator is on in orange: 10/100M,
If the indicator is on in green: 1000M

Bdcom S2528-B Specifications

General

Brand	Bdcom
Model	S2528-B
Category	Switch
Language	English
