S2528-B Hardware Installation Manual
- 2 -
If the indicator is not on: no signal is
transmitted.
5
Reset
Reset switch
Return to the factory setting.
6
/
24 gigabit RJ45 ports
Forwards the 10/100M/1000M Ethernet
electric signals
7
/
4 SFP ports
Forwards 1000M Ethernet optical
signals.
Table 1- 2 Parts at the front template of the S2528-B switch
Besides, S2528-B has a grounding column and a power socket at its back.

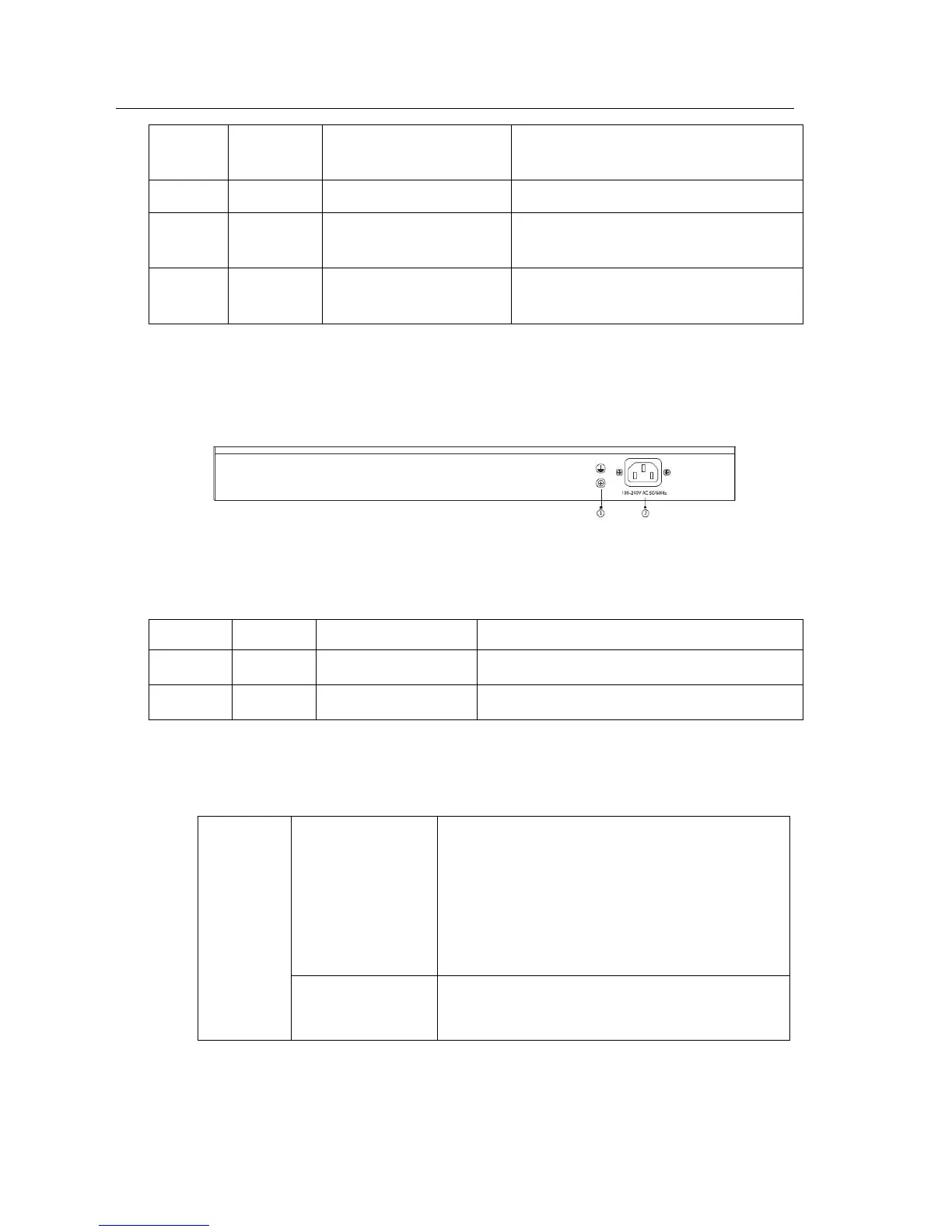

Figure 1- 2 Back template of the S2528-B switch
No.
Abbrev.
Name
Description
1
/
Grounding column
The grounding must be fine.
2
/
AC power socket
100~240V AC
Table 1- 3 Parts at the back template of the S2528-B switch
1.2 S2528-B Systematic Characteristic Parameters
Protocol
standard
Supported
standard
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1q tagged VLAN
IEEE 802.3x Flow control
IEEE 802.3ad Link aggregation
IP routing protocol
standard
RFC 1058 RIP
RFC 1723 RIP v2
