S2528GX Hardware Installation Manual
3.2.1 Installing the Machine Box on the Desk
The S2528GX switch can be directly put on the smooth and safe desk.
Note:
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
3.2.2 Installing the Chassis on the Cabinet
The chassis of the switch is fixed on the cabinet through the brackets. When you fix
the brackets, the front template of the switch faces forward. The detailed operations
are shown in Figure 3-1.

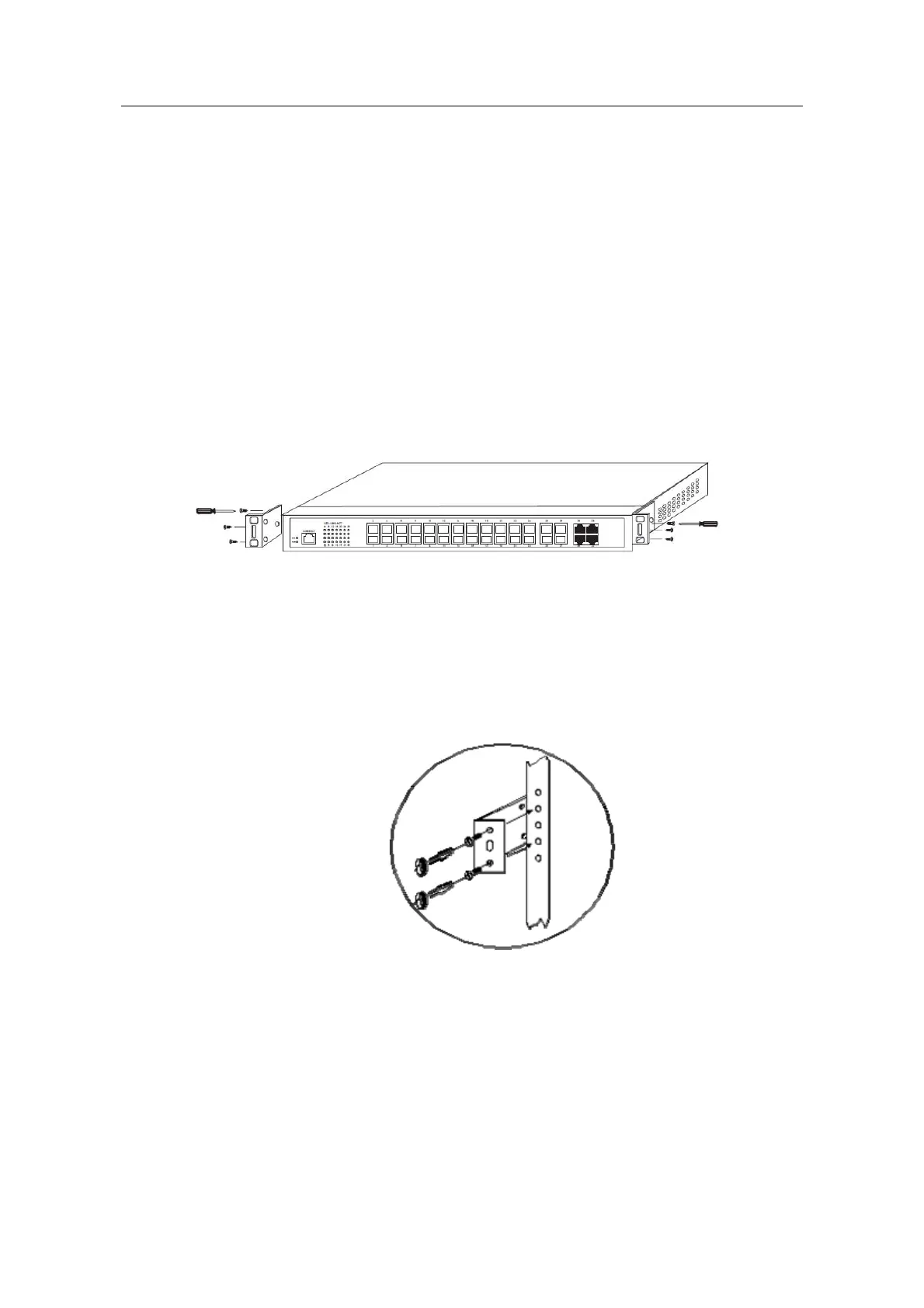

Figure 3-1 Fixing the chassis of the switch
Note: The switch shown in the previous figure does not represent real S2528GX
switch.
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3-2 Installing the switch on the cabinet
3.3 Connecting the Port
3.3.1 Connecting the Console Port
The switch of S2528GX has a Console port.
