S2528GX Hardware Installation Manual
Note: The switch shown in the previous figure does not represent real S2528GX
switch.
(5) Put the chassis aside after you open it. The main board of the system appears.
Note:
After taking off the chassis, put it horizontally and avoid it to be crushed or collided.
Otherwise, the chassis is hard to install.
4.2 Closing Chassis
The section mainly describes how to put the chassis and close the chassis. Do as
follows:
(1) Put them well according to their locations and joint them together along their
sides.

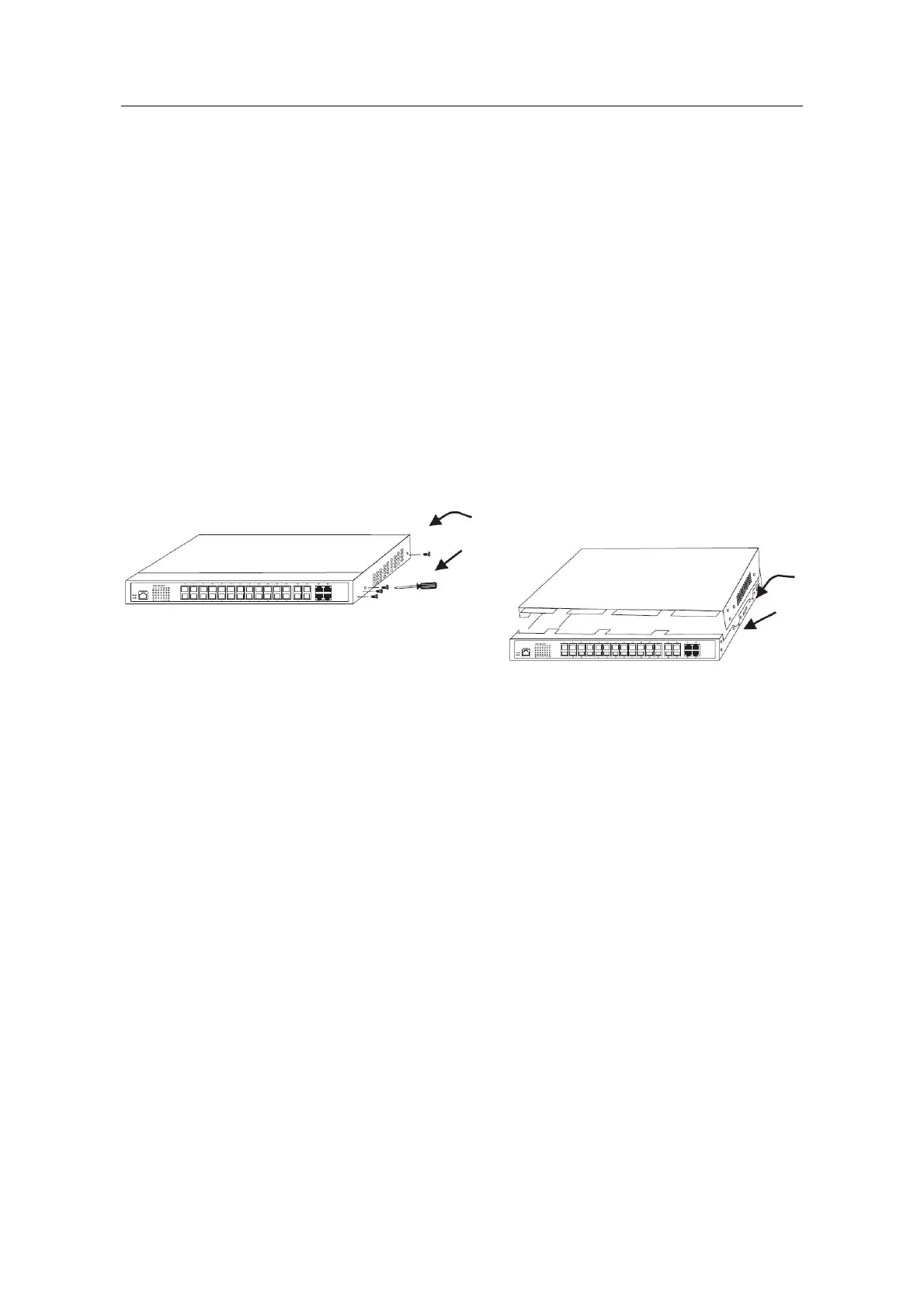

(2) See the following figure.
(3) When the cover and the bottom are closely tied, let the cover slide the slot of the
front template at the bottom.
(4) Nail the bolt and screw it tightly with the screwdriver.
(5) Reinstall the switch on the cabinet or the desk.
(6) Reconnect all cables of the switch.
4.3 Memory Upgrade
4.3.1 SDRAM Expansion
Because SDRAM of S2528GX adopts the patch design, you have to offer your
SDRAM expansion requirement before purchase.
