S2528GX Hardware Installation Manual
Chapter 1 Overview of S2528GX Switch
The document describes the characteristics and parameters of S2528GX and gives
an overview of S2528GX.
1.1 Standard Configuration
S2528GX has 24 gigabit SFP ports, 4 TX/SFP ports, 1 console port and 1 Phone
Jack power-supply port. For details, see table 1-1.
Table 1-1 Attributes of the necessary port
Port Attribute
Gigabit Ethernet port
SFP port and UTP port (RJ45), having LINK/ACT
LEDs
Console port An RJ45 port with a rate of 9600 bps
Port for power source
AC220V port which is used for power input

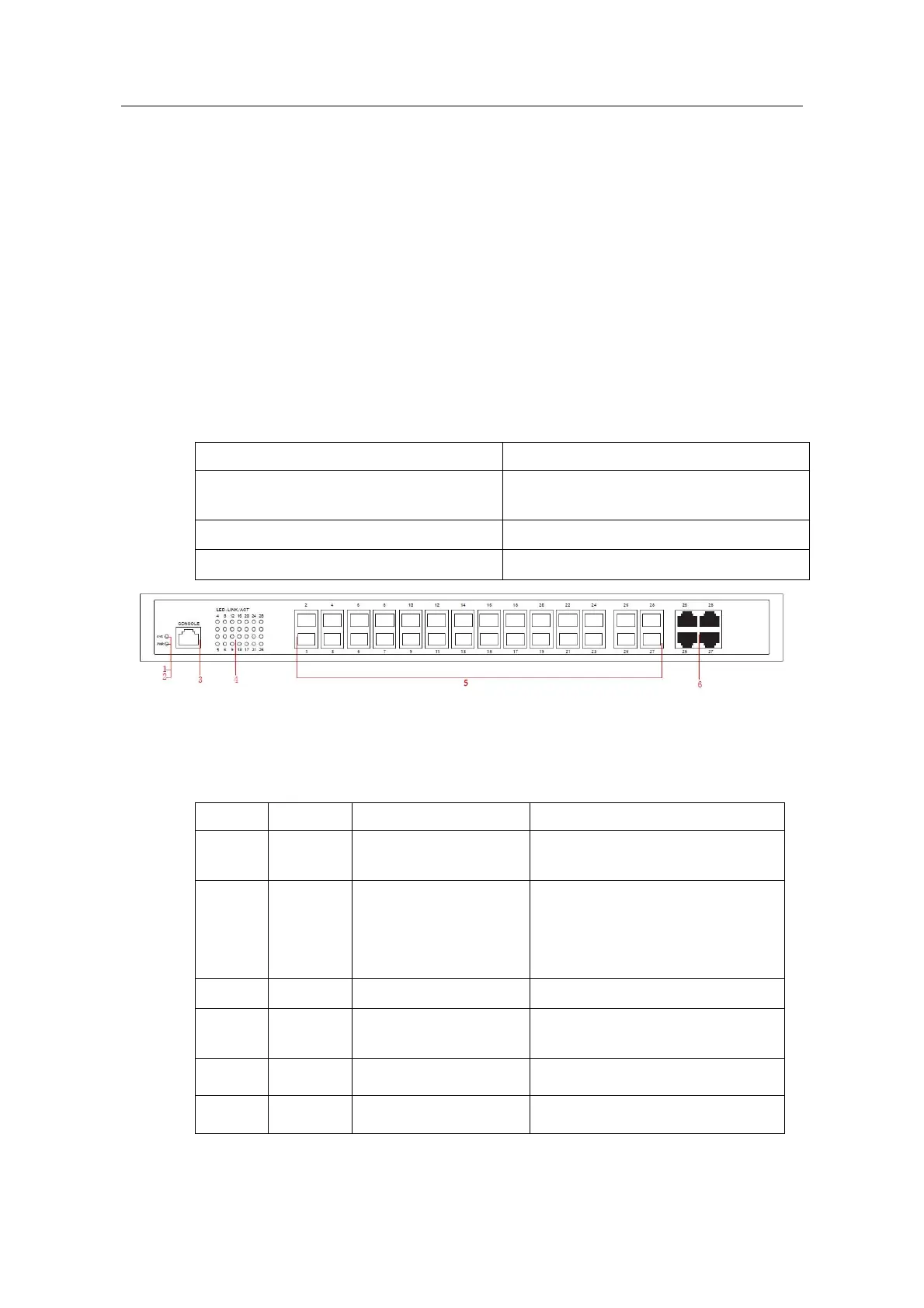

Figure 1-1 Front template of the S2528GX switch
Table 1-2 Parts at the front template of the S2528GX switch
No. Abbrev. Name Remarks
1 PWR
Power LED
If the switch is powered on, the LED is
on.
2 SYS
System LED
If the LED is always on, the system is
being started.
If the LED flickers, the system works
normally.
3 CONSOLE Console port Manages the switch locally.
4 LINK/ACT LED of each port
If the LED is always on, the link on the
port is normal.
5
28 gigabit SFP ports
6
4 gigabit TX ports
- 1 -
