Bdcom S5612 User Manual

S5612 Hardware Installation
- 1 -
Chapter 1 S5612 Introduction
The section describes the characteristics and parameters of S5612 and gives an
overview of S5612.
1.1 Appearance Description for Standard Configuration
The built-in ports of S5612 are: 8 gigabit Ethernet RJ45 ports, 12 10G SFP+ ports, 1
Console port.
See table 1-1.
Table 1-1 Attributes of the built-in port
Port
Attribute
Gigabit Ethernet port
RJ45 interface, LINK/ACT indicator
10G Ethernet port
SFP+ interface, LINK/ACT indicator
Console port
A rate of 9600bps, mini USB interface
S5612 has a grounding column, a power socket and a power on-off (ON: power on;
OFF: power off) at its back.

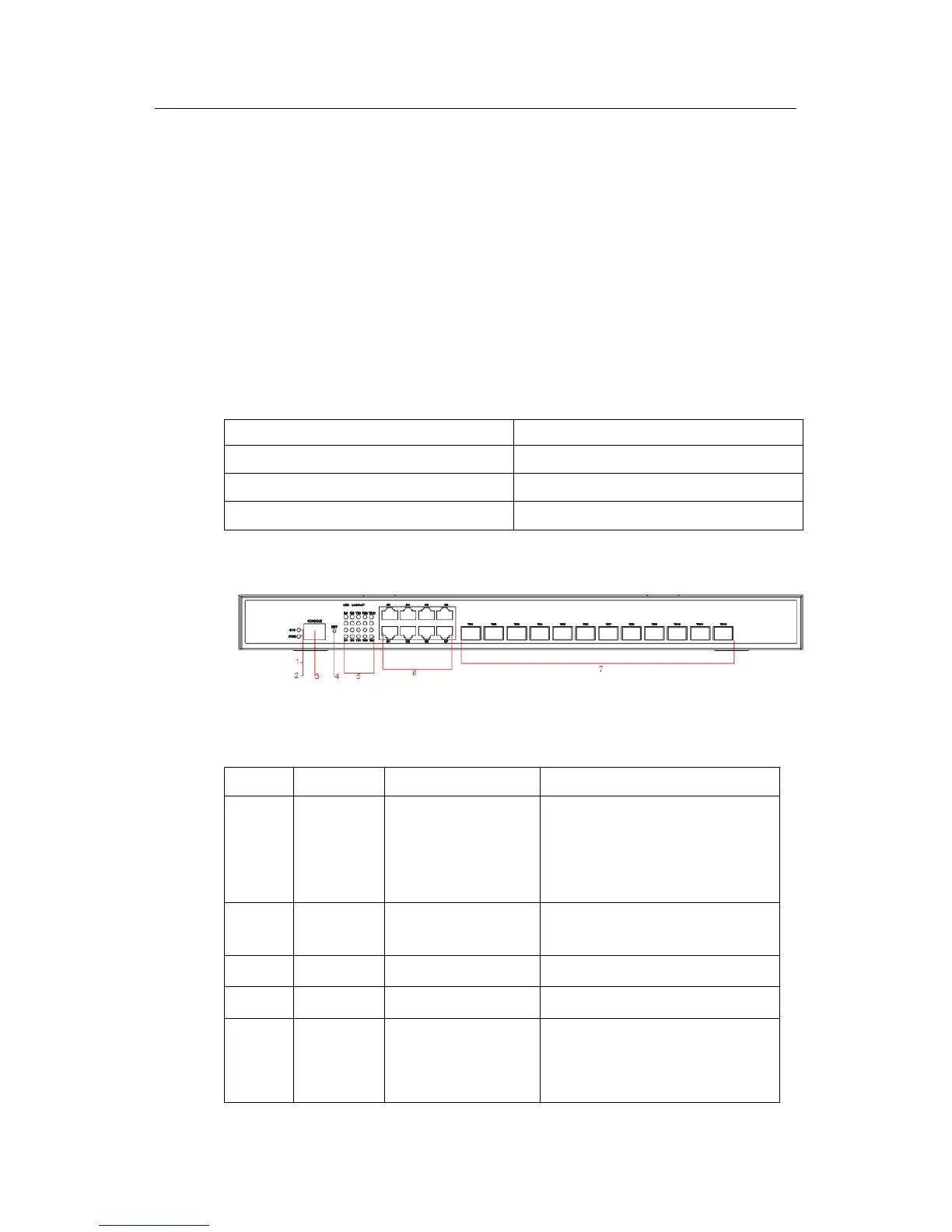

Figure 1-1 Front template of the S5612 switch
Table 1-2 Parts at the front template of the S5612 switch
No.
Abbrev.
Name
Description
1
SYS
System indicator
If the indicator is always on, the
system is normally started up.
If the indicator flickers, the system
works normally.
2
PWR
Power indicator
If the switch is powered on, the
indicator is on.
3
CONSOLE
Console port
Manages the switch locally.
4
RST
Reset
5
LINK/ACT
Port indicator
GE/10GE port link/ack indicator
If the indicator is always on, the
link on the port is normal.

Bdcom S5612 Specifications

General

Brand	Bdcom
Model	S5612
Category	Switch
Language	English
