Bdcom S5612 User Manual

S5612 Hardware Installation
- 2 -
If the indicator flickers, the data is
received or transmitted through
the port.
6
RJ45
8 Gigabit TX ports
8 Gigabit TX ports
7
SFP+
10G SFP+ ports
12 10G SFP+ ports

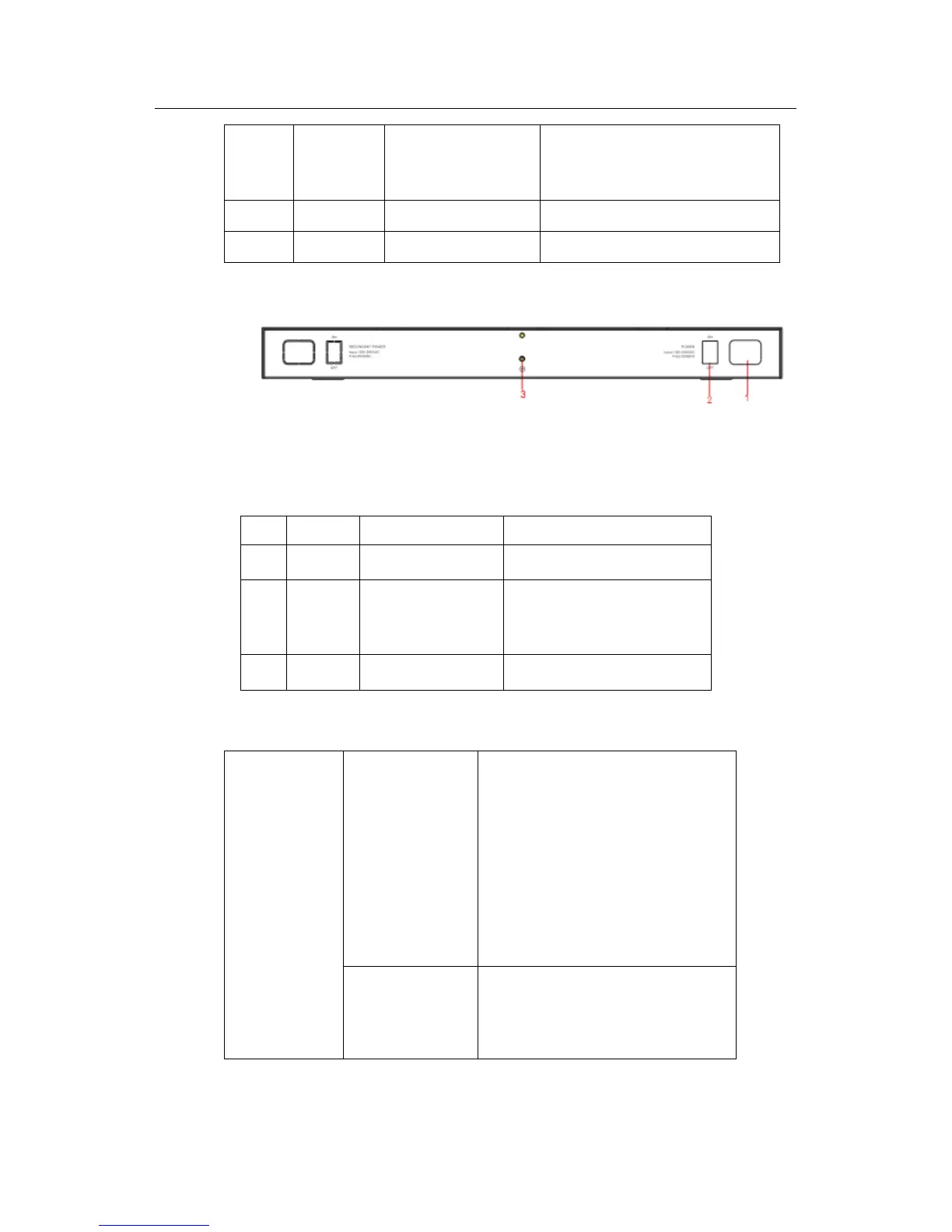

Figure 1-2 Back template of the S5612 switch
Table 1-3 Parts at the back template of the S5612 switch
No.
Abbrev.
Name
Description
1
/
AC power socket
AC100
～
240V.
2
switch
Power on-off
Pressing upwards is to power
on. Pressing downwards is to
power off.
3
/
Grounding column
The grounding must be fine.
1.2 S5612 Systematic Characteristic Parameters
Protocol
standard
Supported
standard
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1s multiple spanning trees
IEEE 802.1p Class of Service
IEEE 802.1q tagged VLAN
IEEE 802.3x Flow control
IEEE 802.3z asymmetric flow control
IEEE 802.3ad Link aggregation
IP routing protocol
standard
RFC 1058 RIP
RFC 1723 RIP v2
RFC 1583 OSPF v2
