S5612 Hardware Installation
- 10 -
3.2.2 Installing the Machine Box on the Cabinet
The machine box of the switch is fixed on the cabinet through the brackets. When you
fix the brackets, the front template of the switch faces forward. The detailed operations
are shown in Figure 3-1.

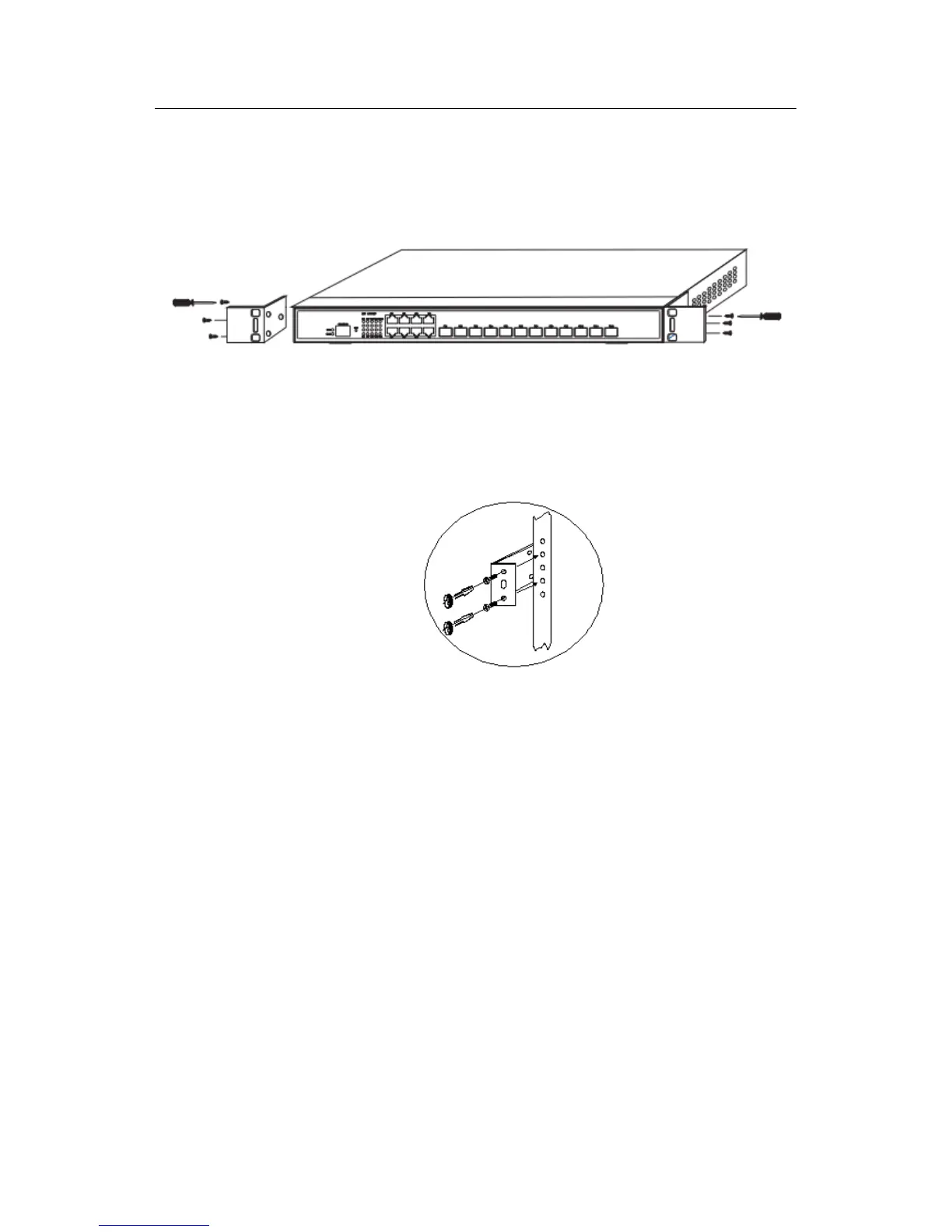

Figure 3-1 Fixing the machine box of the switch
Caution:
The switch shown in figure 3-1 does not represent the material S5612.
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3-2 Installing the switch on the cabinet
3.3 Connecting the Port
3.3.1 Connecting the Console Port
The switch of S5612 has a console port.
The rate of the console port is a value ranging from 1200bps to 115200bps. It has a
standard RJ45 plug. After you connect the console port to the serial port of PC through
a console cable, you can configure and monitor the switch of S5612 by running a
terminal emulation software, such as super Windows terminal. The cable is provided
according to the host. The communication parameters of the terminal serial port can be
set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic
control.
The RJ45 connector of the console port is shown in the following figure. The RJ45 plug
corresponds to the RJ45 socket, whose pins can be aligned from left to right with the
value from 1 to 8.
