20 | BDIUSA.COM CORRIDOR L-DESK 6531
NOTE: Do not use a power dril.
Do not over tighten screws; otherwise they will strip.

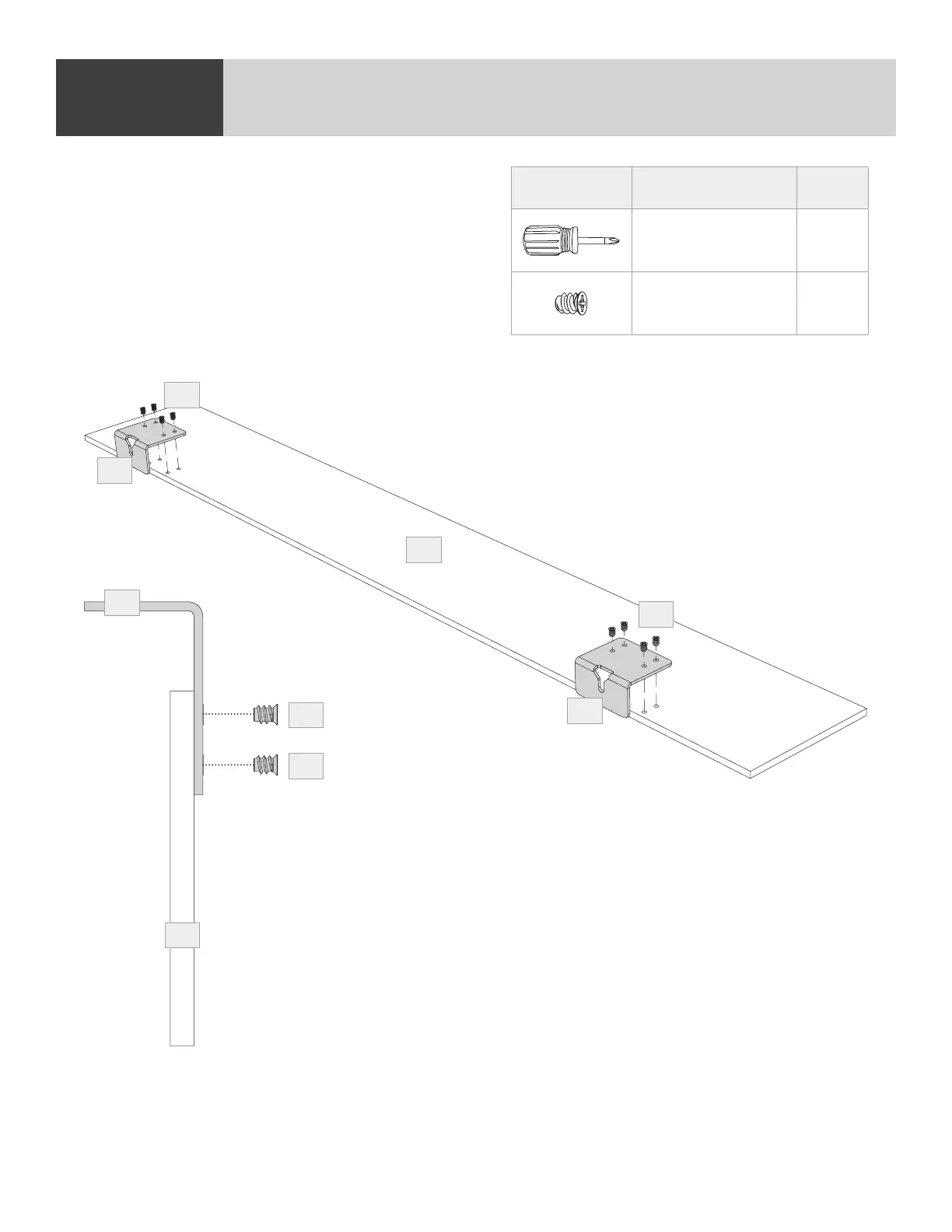

Fasten the (C14) Modesty Panel Brackets to the
(C13) Modesty Panel as shown with the bracket
return over the top of the panel. Use 8 (H12) Wood
Screws going into the 8 pilot holes located near
the inside top edge of the panel. Tighten with a
(T2) Phillips Screwdriver.
STEP 13. ASSEMBLE MODESTY PANELASSEMBLY
PART/DESCRIPTION QTY
T2-PHILLIPS
SCREWDRIVER
1
H12-SCREW 8
C13
H12
H12
C14
C14
Side view
C14
H12
H12
C13
To Next Page
