SEQUEL 6051/52
LIFT DESK
2

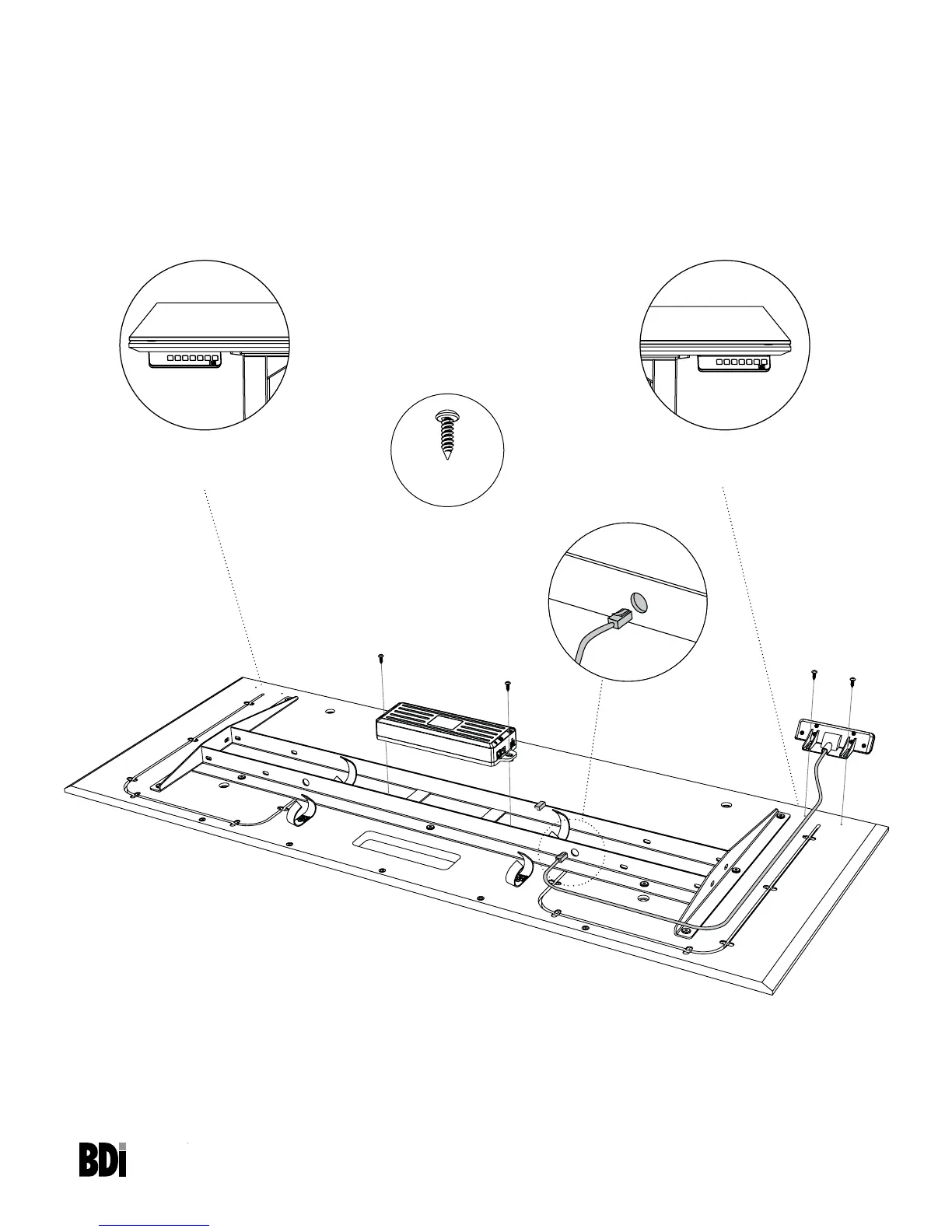

Step 2 - Install Control Module and Keypad
Lay top panel upside down on a soft surface (like carpet). Attach Keypad C4 on the desired side (left or right)
with 2 Wood Screws H1. Orient the Control Module C3 so that the Keypad port is facing the Keypad side and
secure between the 2 steel rails with 2 Wood Screws H1 as shown. Route the Keypad cord into the groove in
the panel and through the hole in the metal frame.
User’s left
hand side
User’s right
hand side
C3
C4
H1 x 4
