SEQUEL 6051/52
LIFT DESK
4

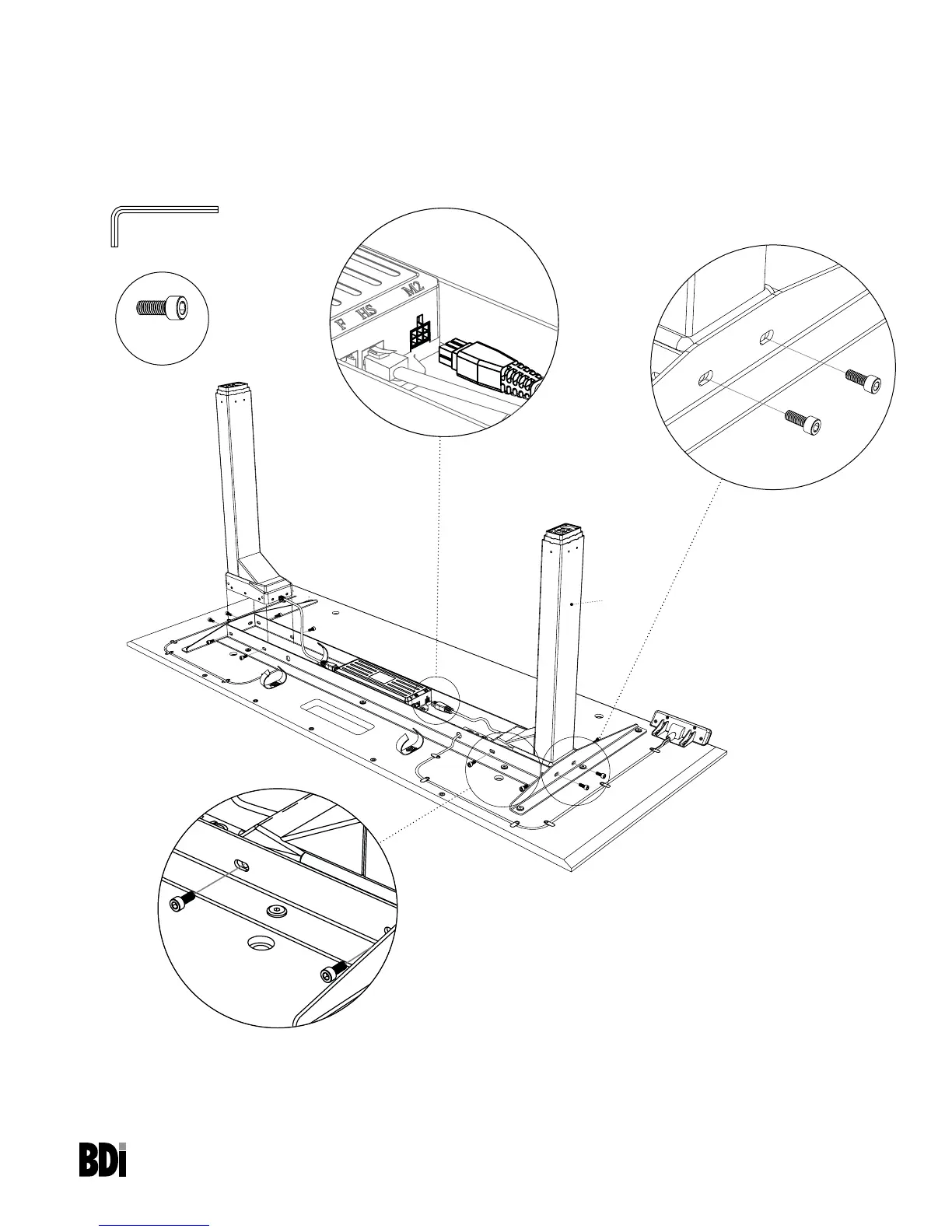

Step 4 - Attach 2 Legs C1 with 6 Screws H3 per Leg using Hex Wrench T1. Start all 6 screws before
tightening them down. Tighten the 2 outside screws first, then tighten the other 4 screws.
Step 5 - Connect the leg cords to the closest port of the control module and bundle up any slack using the
hook & loop tie.
C1 x 2
T1
1- Tighten the 2
outside screws first
2- Tighten the front/back screws next
H3 x 12
