BDS MAB 480 - Weldon Industrial Tool Holder

Preparations
MAB 480
19
Weldon industrial tool holder

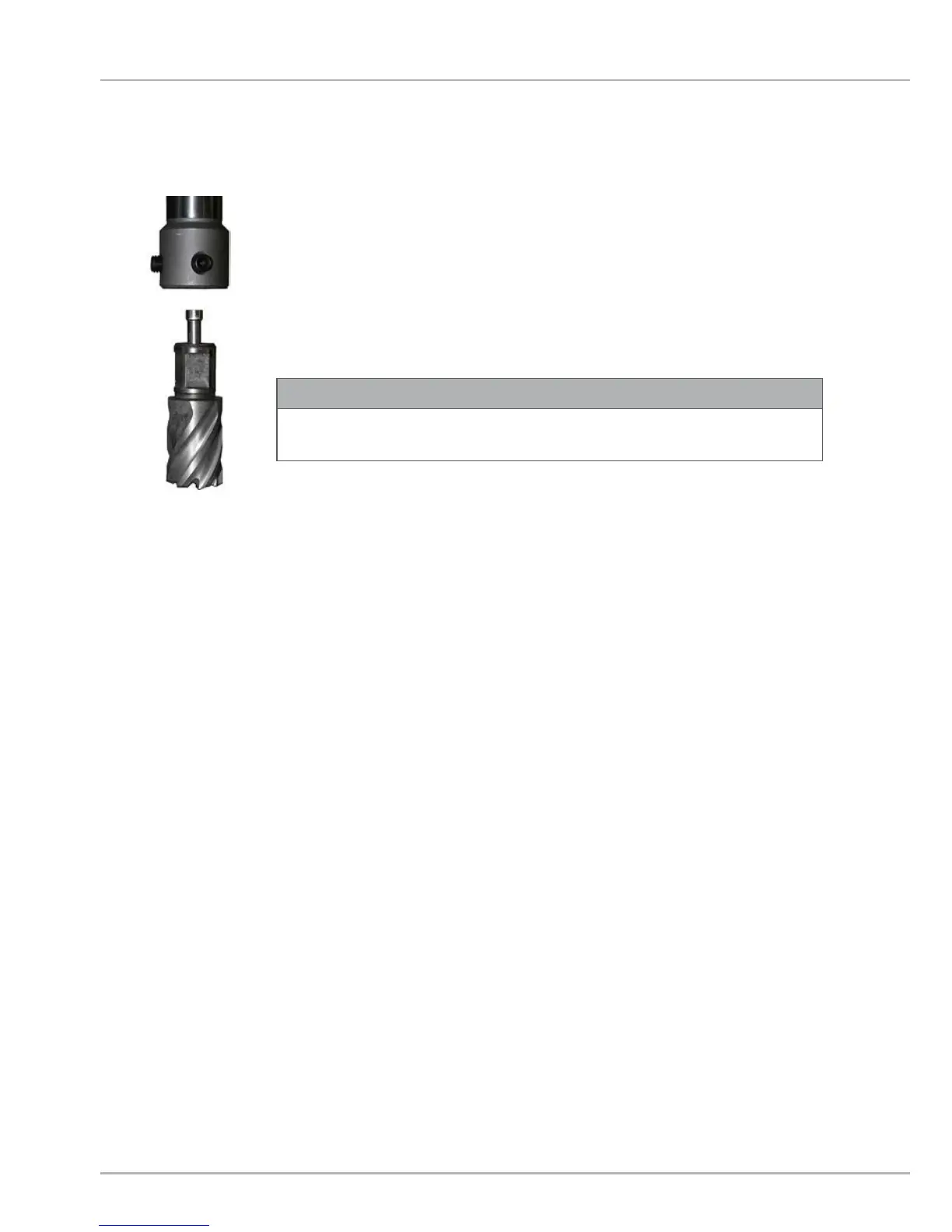

Inserting the tool
 Insert the MK2/19 mm Weldon industrial holder (A) into the
morse taper (3) of the machine.
 Before inserting, clean the Weldon shank of the tool and the
tool holder.
 Loosen both hexagonal socket screws in the tool mount (A)
with the corresponding
hexagonal o󰀨set screwdriver supplied.
 Insert the tool into the tool mounting
NOTE
► Insert the appropriate ejector pin (B,C) before inserting a
core drill.
 Tighten both hexagonal socket screws in the tool mount (A)
with the corresponding
hexagonal o󰀨set screwdriver supplied.
Removing the tool
 Loosen both hexagonal socket screws in the tool mount (A)
with the corresponding hexagonal o󰀨set screwdriver supplied
and remove the tool from below.
