EN
49

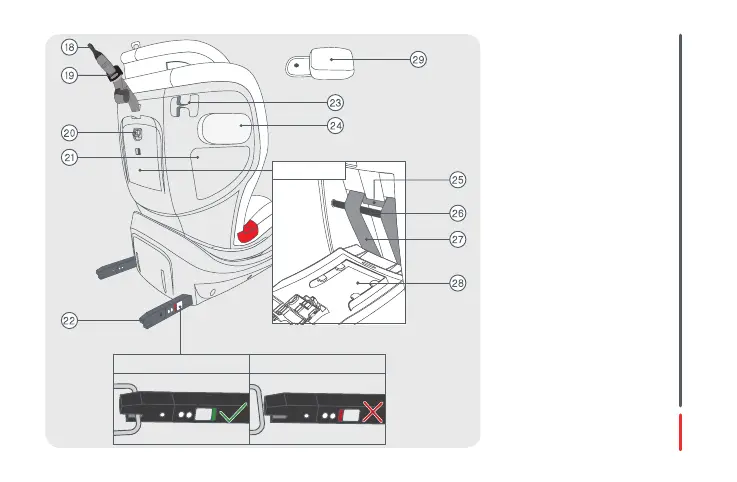

Parts of the safety seat (rear part)
18. Anti-rotation strap hook
19. Anti-rotation strap adjuster
20. Rear frame button
21. Installation instructions
22. ISOFIX connector (G0+l) ISOFIX
connector (G II + lll)
23. Guide slot for the rear facing
position
24. Side protection
25. Shoulder connection harness
26. Harness axle
27. 2 shoulder straps of the harness
28. Slot to store the manual in
29. Anti-collision sponge (only used
for rear facing installation for
children from 0-18 kg)
ISOFIX no anchor status
ISOFIX anchor status
Rear frame
