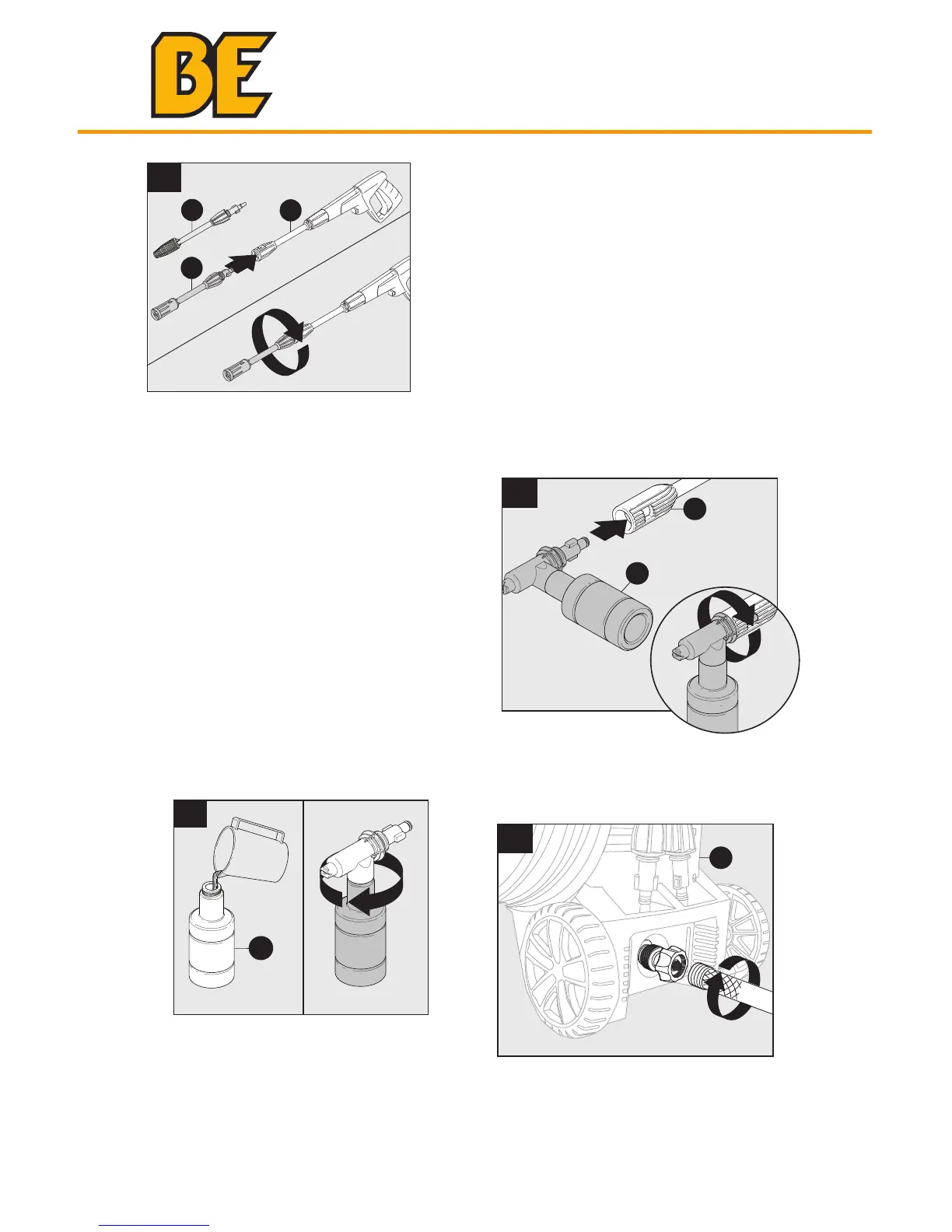

Variable Spray Nozzle Lance
installation
Insert variable spray nozzle (I)
or Turbo lance(K) or detergent
bottle (H) into the end of the
extension lance by inserting
and pushing together turning
clockwise simultaneously. To
remove push together and turn
counterclockwise.
Note: Push the safety lock button
to lock the trigger when changing
lances to ensure that they do not
accidentally eject with force during
removal.
Insert detergent bottle (H) into
extension lance (J), push in and
turn clockwise
9
2
1
9
I
J
Variable Spray Nozzle Lance installation
Insert variable spray nozzle lance (I) or detergent bottle
(H) into the end of the extension lance by inserting and
pushing together turning clockwise simultaneously. To
remove push together and turn counterclockwise.
Note: Push the safety lock button to lock the trigger
when changing lances to ensure that they do not
accidentally eject with force during removal.
Insert detergent bottle (H) into extension lance (J),
push in and turn clockwise
10
2
1
H
Detergent Bottle Installation
The detergent bottle comes with a straw which is tted
into screw-on top. If you do not see the straw, look
inside the bottle and attach it to the screw-on top. When
using detergent bottle, ll it with a properly formulated
detergent or cleaner with a water ratio according to
instructions on the container.
• Pressure washer detergents are recommended. See
page 12 for more information.
• DO NOT use thick or gel-like detergents as they will
clog the power washer and can cause damage.
1
J
H
11
2
12
C
Attach a garden hose to built in garden hose
adapter located on the back of the power washer
unit (C). The water is now connected to your power
washer.
Note: Flush out garden hose before connecting
to garden hose adapter.
