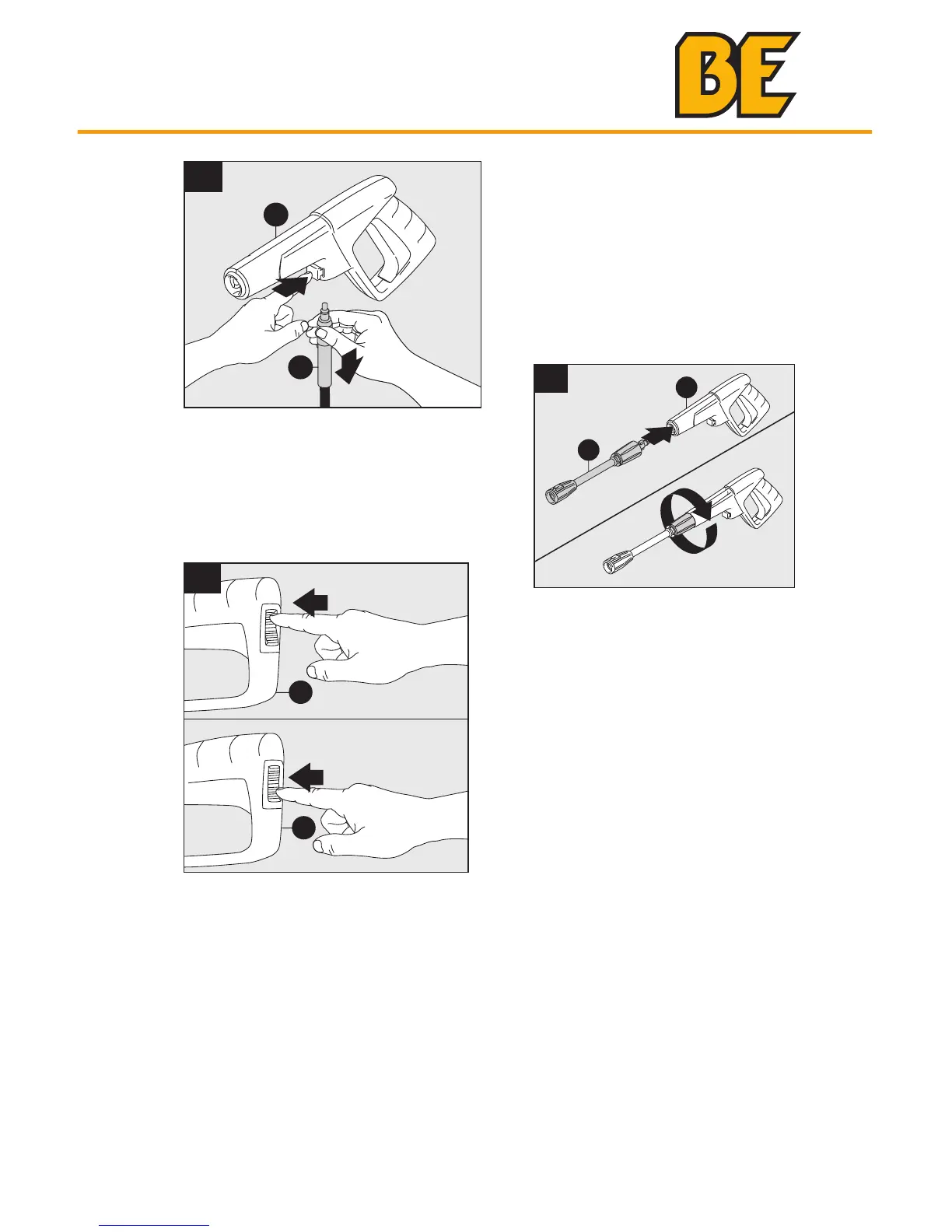

To release hose (E) from spray gun (F),
press button on underside of gun to-
ward trigger guard. The hose will slide
out from connection.
Locking Spray Gun (before Lance
installation)
To lock trigger of spray gun (F), point
gun away from you and press bottom
half of lock button to engage lock.
Squeeze or pull trigger to make sure it
is locked.
ALWAYS leave lock button in locked
position when not in use. This ensures
the gun is in “safe” mode until it is
ready for use. To unlock, press top half
1
2
8
J
F
Extension Lance installation
With spray gun (F) in locked
position, attach extension lance
(J) directly to spray gun. Insert
lance extension into gun, pushing
together and turning clockwise
simultaneously. Turn the extension
collar clockwise to lock into place.
To remove extension lance (J), turn
extension collar counterclockwise
to unlock, then push together and
turn counterclockwise to release.
Note: The extension lance must be
inserted in gun before using any of
the other attachments, and in place
for storage. It is recommended that
once extension is connected to
leave it in place.
of lock button to release.
Note: The trigger lock prevents
trigger from being accidentally
engaged.
