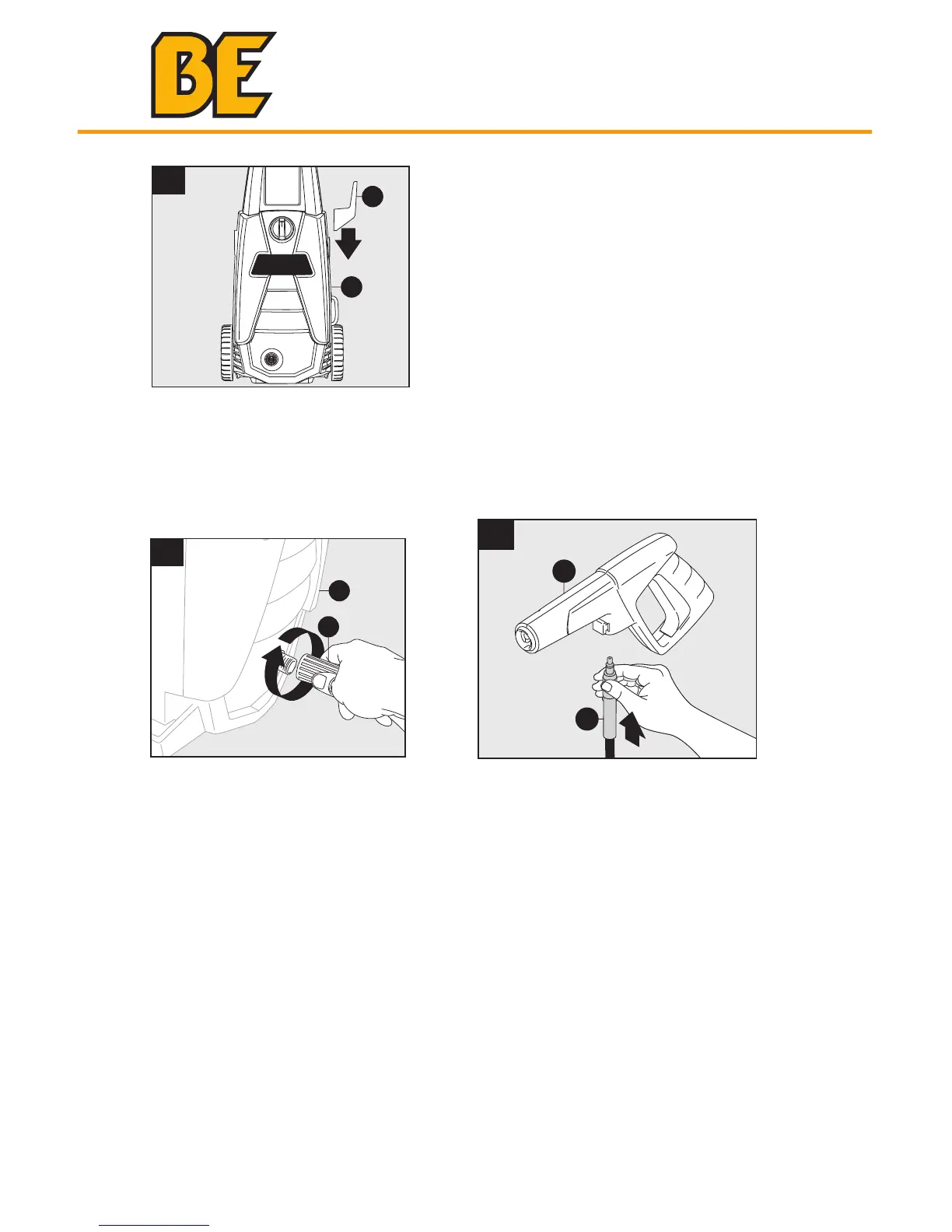

Slide cord hook holster (D) onto
right side, when facing unit, of power
washer unit (C) as shown.
Note: This step does not require any
screws.
4
C
E
Soft PVC High Pressure Hose
Assembly
Screw Soft PVC high pressure
hose (E) clockwise onto bottom
front of power washer unit (C).
Pull back collar and insert o-ring
post into water outlet far enough
so collar can thread onto outlet
threads until hand tight. If it
takes fewer than six turns you
have not properly tightened the
Soft PVC high pressure hose
fitting. It is easier to position
the power washer in front of
you to ensure that the threads
5
E
F
Connect the other end of Soft PVC
high pressure hose (E) to spray gun
(F) by inserting the silver metal tip of
Soft PVC high pressure hose into the
fitting just ahead of trigger guard. It
will lock into spray gun with a “click”.
Confirm hose is locked into spray gun
by slightly pulling on hose. The hose is
now securely attached to spray gun.
Note: DO NOT press button on under-
side of gun when connecting hose to
gun.
are started correctly. Failure to
properly tighten Soft PVC high
pressure hose will result in the
hose slipping or popping o
immediately upon turning unit on.
Do not worry about damage if this
occurs–just reinstall and take extra
care when screwing on the Soft
PVC high pressure hose fitting.
Note: DO NOT use pliers or
locking pliers to tighten.
OFF/O
ON/I
3
C
D
