Beam IsatDock2 PRO - Equipment Overview

IsatDock2 PRO - User Manual
13

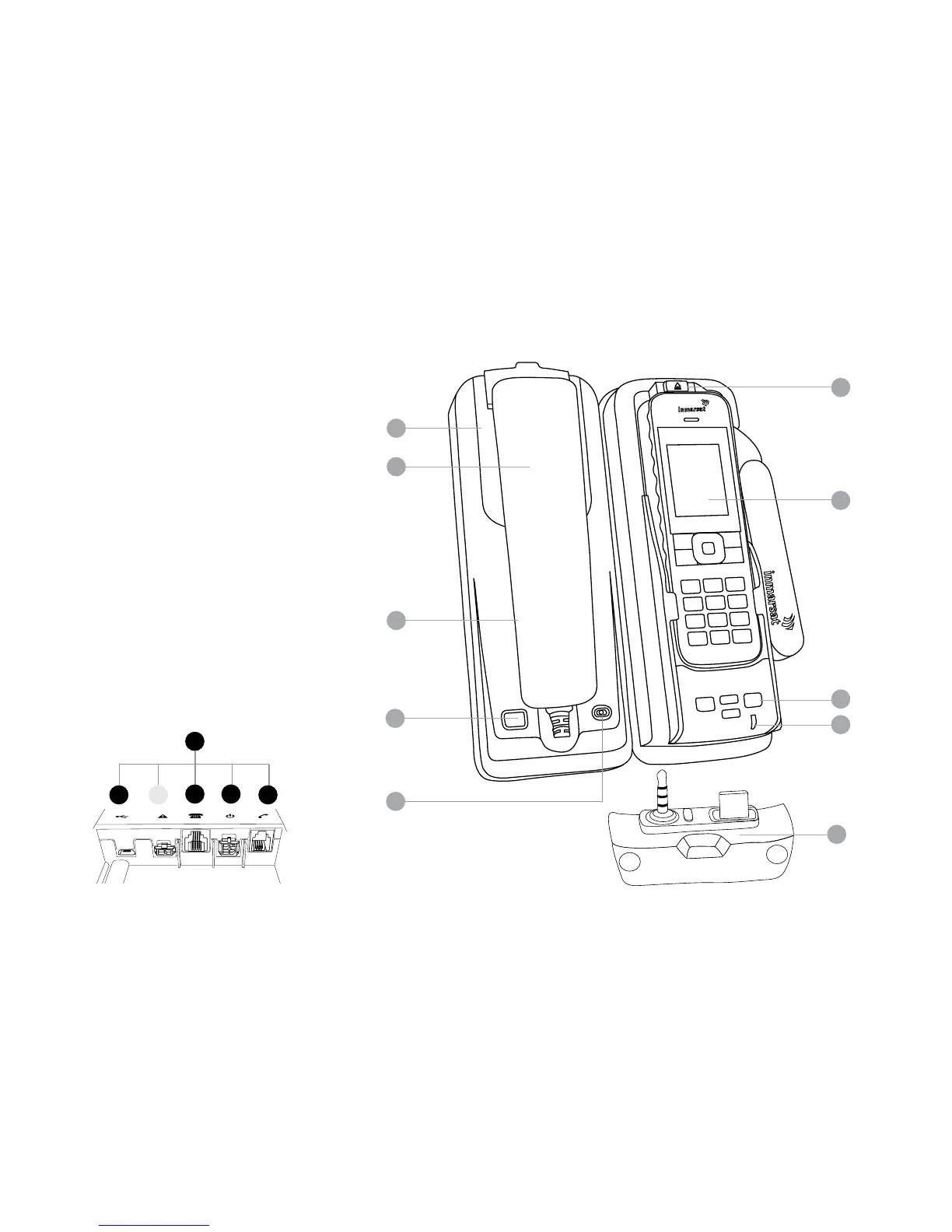

Equipment Overview
IsatDock2 PRO
1. Mounting Cup (spring or
springless cup options)
2. Privacy Handset
3. Speaker (under handset)
4. Speakerphone Button
5. Microphone
6. IsatPhone 2 Eject Button
7. IsatPhone 2 (not included)
8. Function Buttons
9. Status Indication Light
10. Back Panel Connectors
a. USB Data Interface
b. Beam Alert loop connection - not in use
c. RJ11/POTS interface
d. DC power and accessory input
e. RJ9 Privacy handset
11. IsatDock2 Adapter
