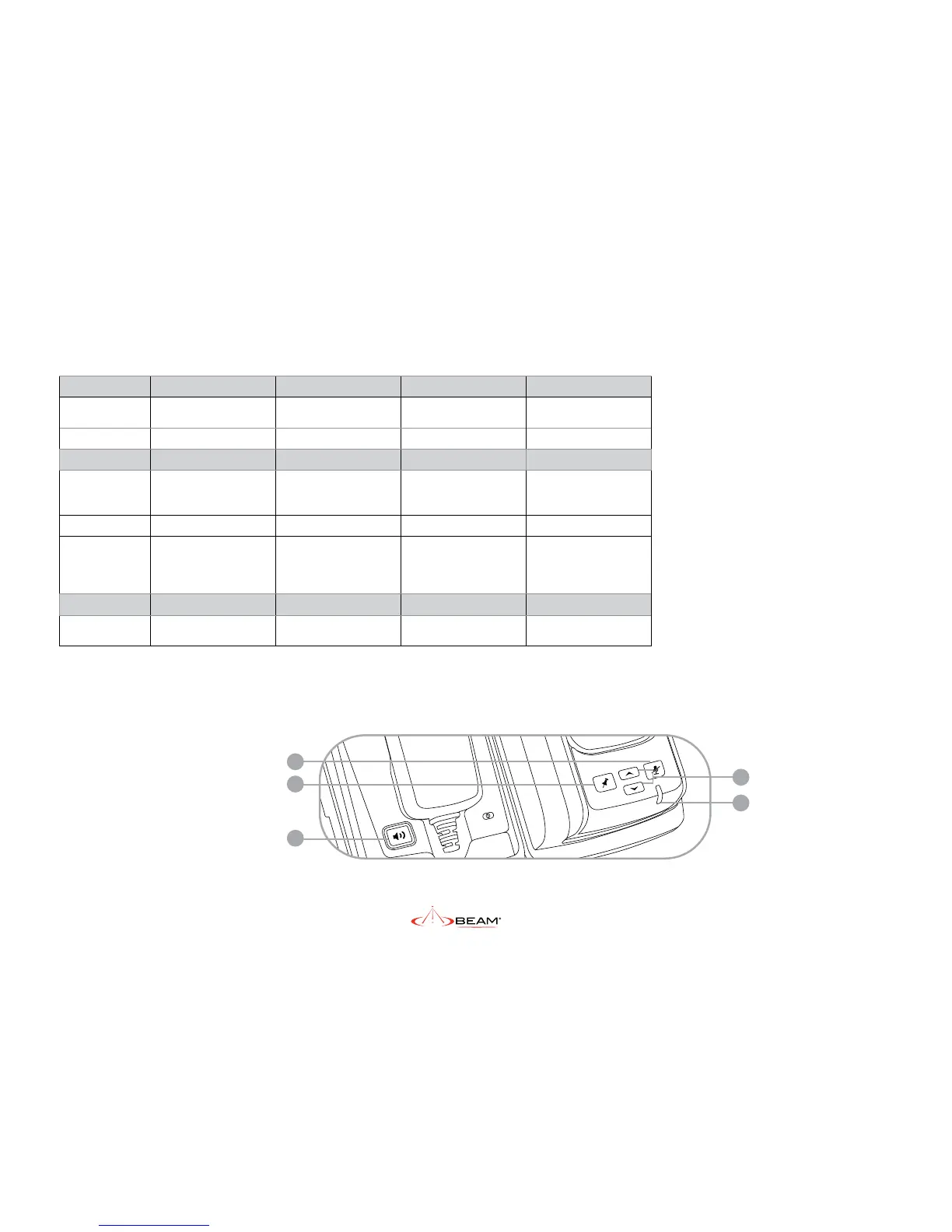

IsatDock2 PRO Buttons/LED lights
MUTE GREEN RED YELLOW WHITE/OFF
ILLUMINATED
N/A Outgoing audio is
muted
N/A Outgoing audio is not
muted
FLASHING
N/A N/A POTS/RJ11 in use N/A
LED STATUS
GREEN RED YELLOW WHITE/OFF
ILLUMINATED
Handset registered and
able to make a call
Handset not registered/
no signal and cannot
make or receive calls
N/A N/A
FLASHING
Call in Progress N/A N/A N/A
ALTERNATING
N/A Error detected in
communicating with
IsatPhone 2 handset.
Flashing Red/Blue
N/A N/A
SPEAKER
GREEN RED YELLOW WHITE/OFF
ILLUMINATED
Speakerphone Mode
active
N/A N/A Speakerphone Mode
inactive
1. Mute
2. Personal Alert button
3. Speakerphone Button
4. UP & DOWN
5. Status LED
2
3
1
5
4
