20
(2) Spring Cup - Heavy duty use cup
In harsh environments, the Privacy handset is
actively retained in the mounting cup. This is
achieved by using the ‘spring’ mounting cup. To
remove the handset from the cup, the phone is
lifted up against the pressure of the spring until
it clears the lower mounting pip and can be
removed from the docking station.

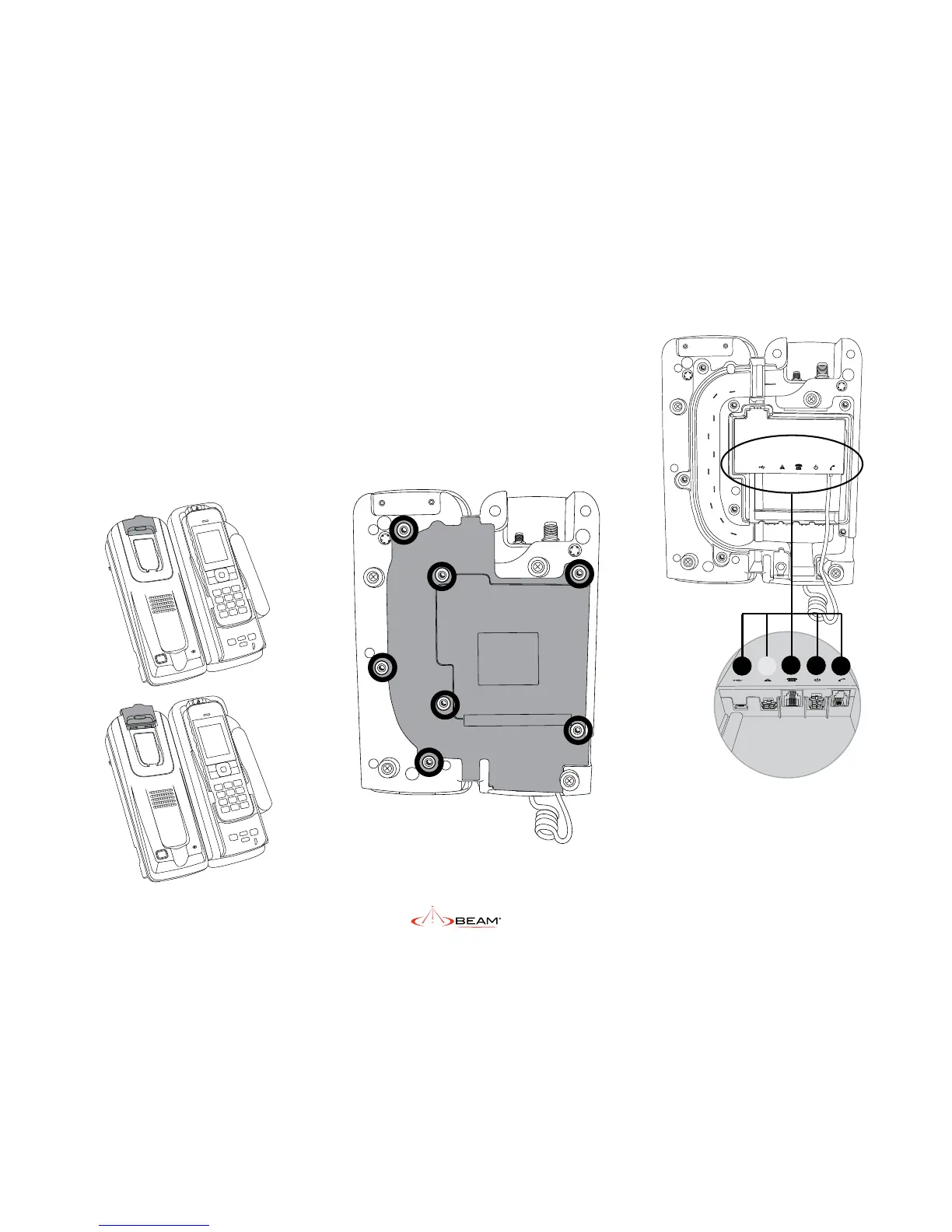

4) Access to Rear Connector Bay
For the IsatDock2 PRO, the external cable
interfaces are at the rear of the docking station.
The cover panel creates the IP rating for the
electrical interface and retains the cables in their
respective channels. The cover panel is xed in
place by 7 screws.
a. USB Data Interface
b. Beam Alert loop connection - NOT IN USE
c. RJ11/POTS interface
d. DC power and accessory input
e. RJ9 Privacy handset
a b e
c
d
