Beamz BS271F - DMX 512 Connection; Master;Slave Operation

4
DISPLAY
The control board offer several features: you can simple set the starting address,
run the pre-programmed program or make a reset. The main menu is accessed
by pressing the Mode-button, browse through the submenu by pressing Up or
Down.
Press the Enter-button in order to select the desired menu.
You can change the selection by pressing Up or Down. Confirm every selection
by pressing the Enter-button.
You can leave every mode by pressing the Mode-button. The functions provided
are described later in this manual.

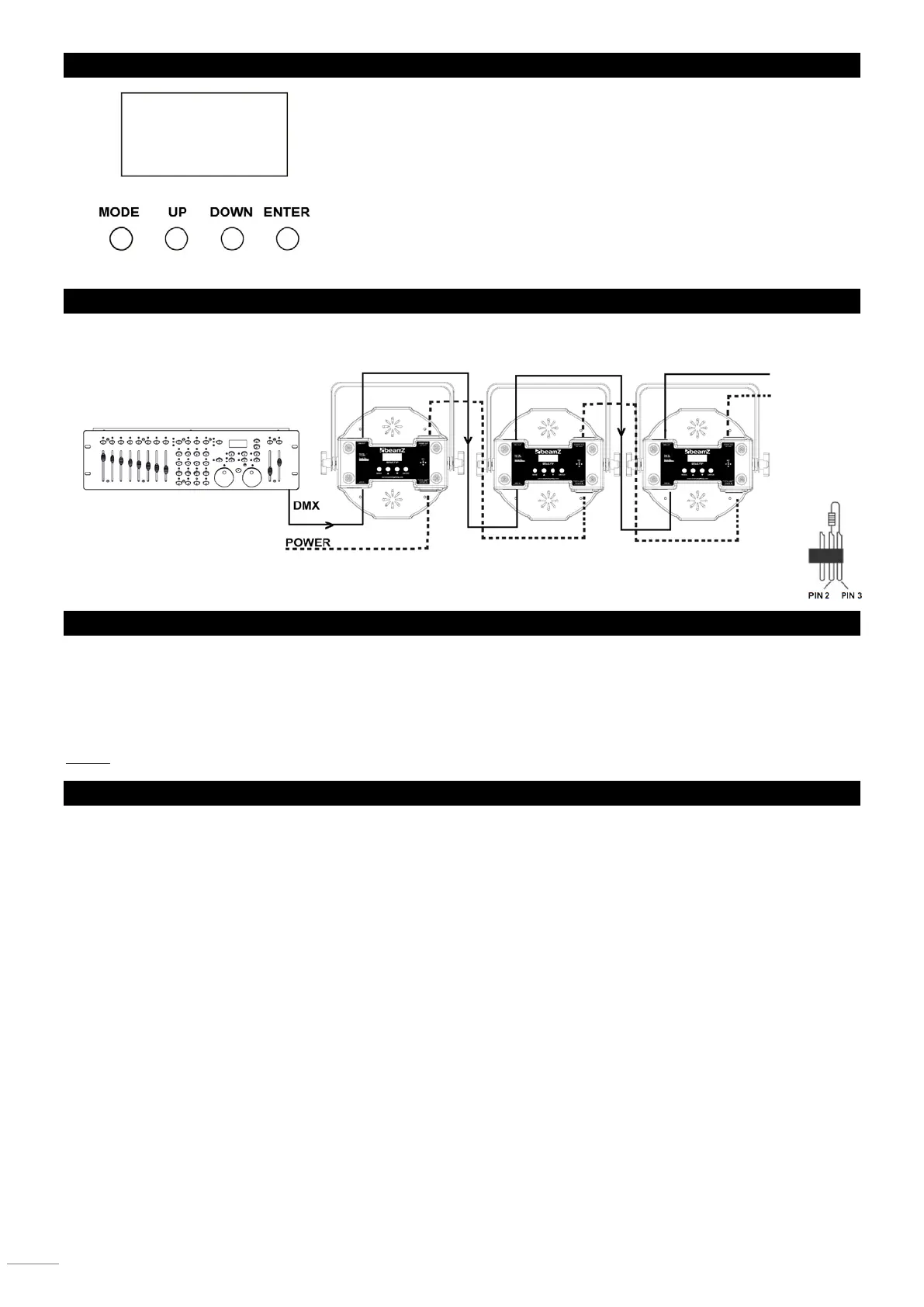

DMX-512 CONNECTION
If you are using a standard DMX controller, you can connect the DMX-output of the controller directly to the DMX-input of the
first unit in a DMX-chain. Always connect the output of one unit with the input of the next unit until all units are connected.
If you use a controller with 5 pin DMX connection you will need to use a 5-pin to 3-pin adapter.
At the last fixture, the DMX cable has to be terminated. Solder a 120 Ohm resistor between signal (-) and signal (+)
into a 3-pin XLR connector and plug this into the DMX output of the last fixture in the chain.
MASTER/SLAVE OPERATION
The master/slave operation enables that several same units can be controlled by one “master” unit.
Connect the first unit “DMX OUT” socket with the second unit “DMX IN”, using a 3pin DMX Cable. Repeat this process with the
third, fourth etc. or see a above section “DMX-512 connection”. Choose the unit that will control all other and set this in master-
mode via display. The other units that must react on the master, you must set in slave-mode. The “Slave” will synchronously
follow the “Master” .
Noted: Any unit can be the “Master” or “Slave”.
FUNCTION MODES AND OPERATION
1）Set DMX address
1．Press MENU to enter EDIT interface
2. Press UP/DOWN to choose, then press ENTER to enter address setting.
3．Press Up/Down to choose address 001~XXX.
4．Press ENTER to confirm, or press "MENU" to exit.
2
）Select channel
1. press MENU to enter EDIT interface
2. press UP/DOWN to choose, then press ENTER to enter (CHND).
3. press UP/DOWN to choose 7CH or 34CH.
4. press ENTER to confirm, or press "MENU" to exit.
3
）Master-slave setting
1. press MENU to enter EDIT interface
2. press UP/DOWN to choose, then press ENTER to enter (SLND).
3. press UP/DOWN to choose (Mast) or (SL1).
4. press ENTER to confirm, or press "MENU" to exit.
4) No signal mode
1. press MENU to enter EDIT interface.
2. press UP/DOWN to choose, then press ENTER to enter (Lost).
3. press <Up/Down> to choose hold/blackout/auto/sound, press <Enter> to enter.
4. press ENTER to confirm, or press "MENU" to exit.
