3
The fixture is designed to work on AC 100-240V 50-60Hz. All units must be powered
directly from a switched circuit. This unit cannot be run on a rheostat or dimmer
circuit even if used solely for a 0% to 100% switching.

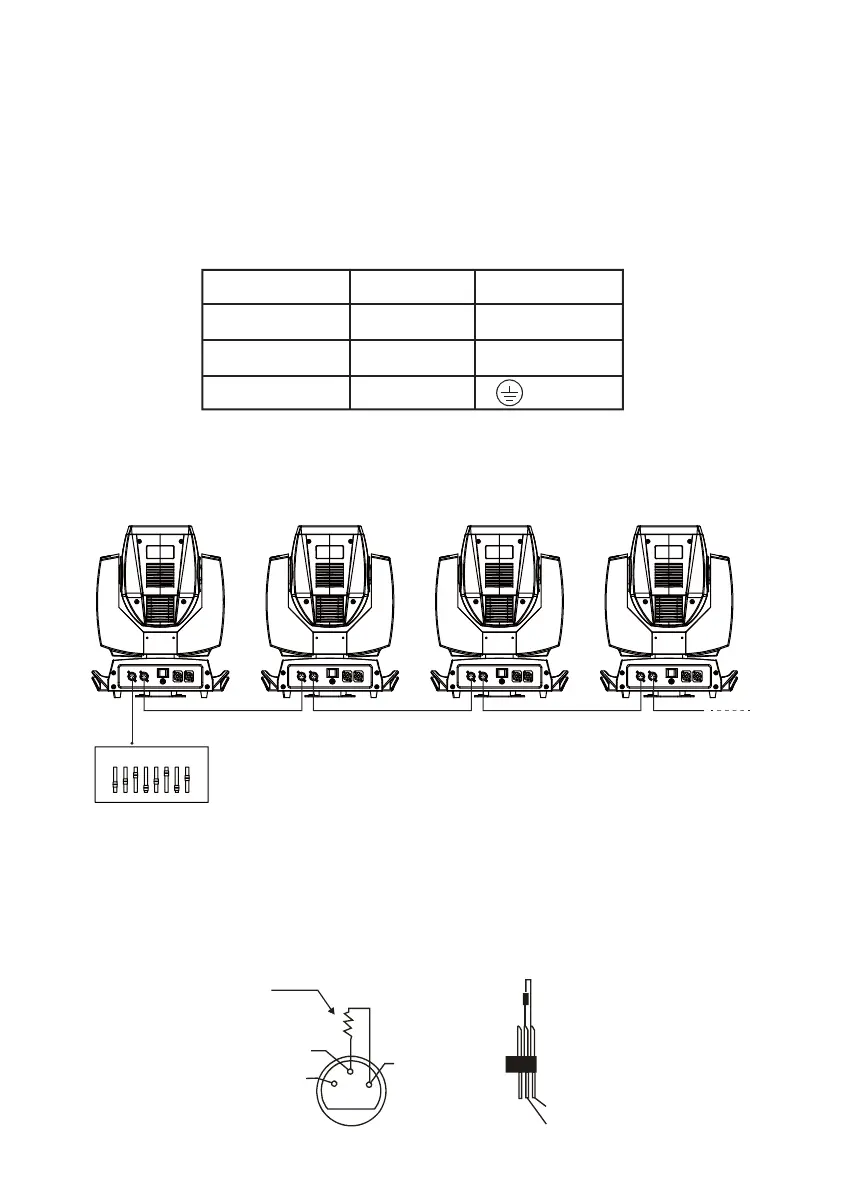

You can link the Moving Head 7R to a DMX controller using a 3- or 5-pin DMX cable.
2.3 AC Power
2.4 DMX Linking
WARNING!!! All fixtures must be connected to circuits with a
suitable Earth Ground.
Wire
Brown
Blue
Yellow/Green
Pin
Live
Neutral
International
L
N
Earth
The occupation of connection-wire is as follows:
DMX OutDMX In
It is recommended to use a DMX terminator for installations where the DMX cable
has to run a long distance, or is in an electrically noisy environment. The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and
3,which is then plugged into the output XLR socket of the last fixture in the chain.
Please see illustrations below.
1
2
3
PIN 3
PIN 2
120Ω
