4
A Li polymer battery is already incorporated in the unit. To charge up the battery,
connect the output plug of supplied 5V 1A AC adapter to USB port 21 . With the unit
being switched off, the power indicator 18 will light up red. Once the battery is fully
charged up (normally it takes around 4 hours), the power indicator 18 will go off or
turn steady green (if unit is switched on). Now the unit is ready for operation. Either
you can disconnect the AC adapter or keep connecting will cause no damage to the
battery. In the latter case, when the battery is being consumed and voltage falls to a
certain level, the AC adapter will automatically start charging up the battery again.
Set the lock lever to open position, slide open the battery
door in direction as shown. Install 3 pcs AA (UM-3) alkaline
batteries, observe correct polarities. Slide back battery
door and set the lever back to lock position. The battery life
can last for 90 days when using battery such as Duracell.

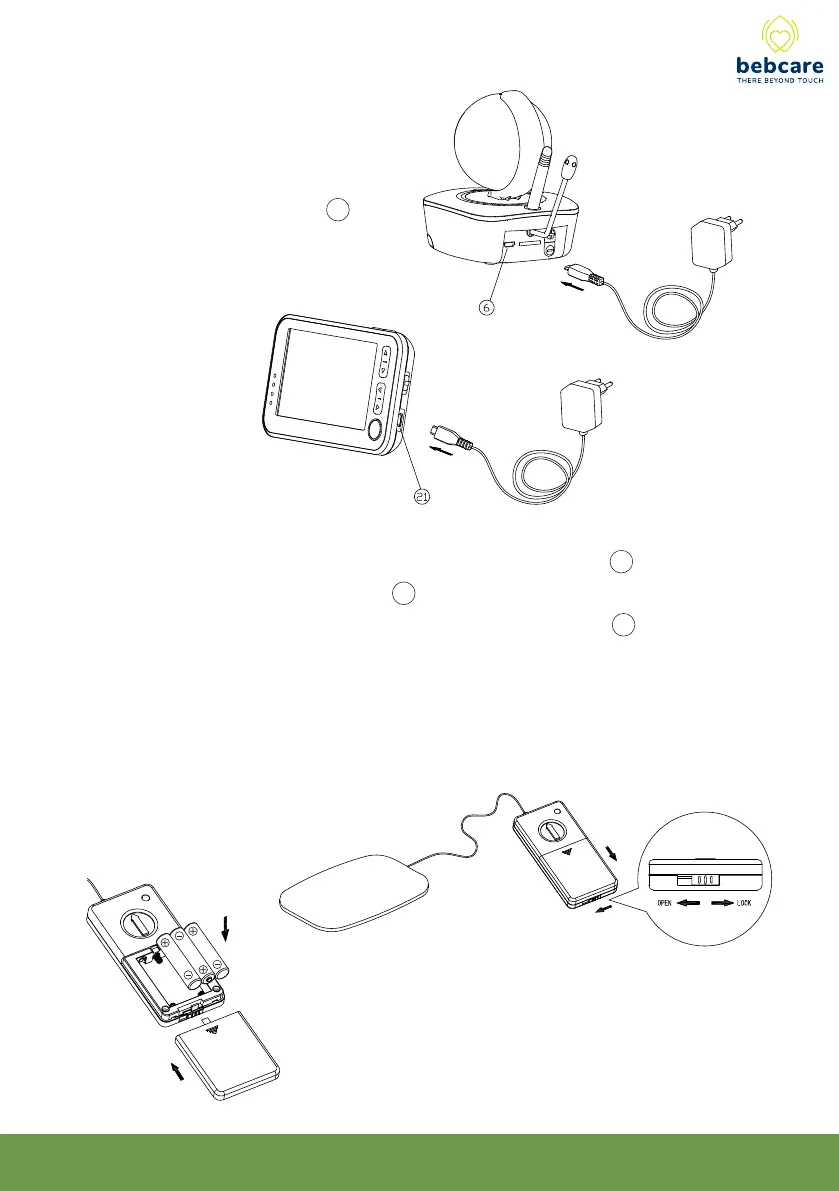

POWER SUPPLY
(A) Camera
Insert the output plug of supplied
5V 1A AC adapter to USB port 6 .
(B)Parent Unit (PU)
(C)Movement Senor Mat (optionally purchased)
