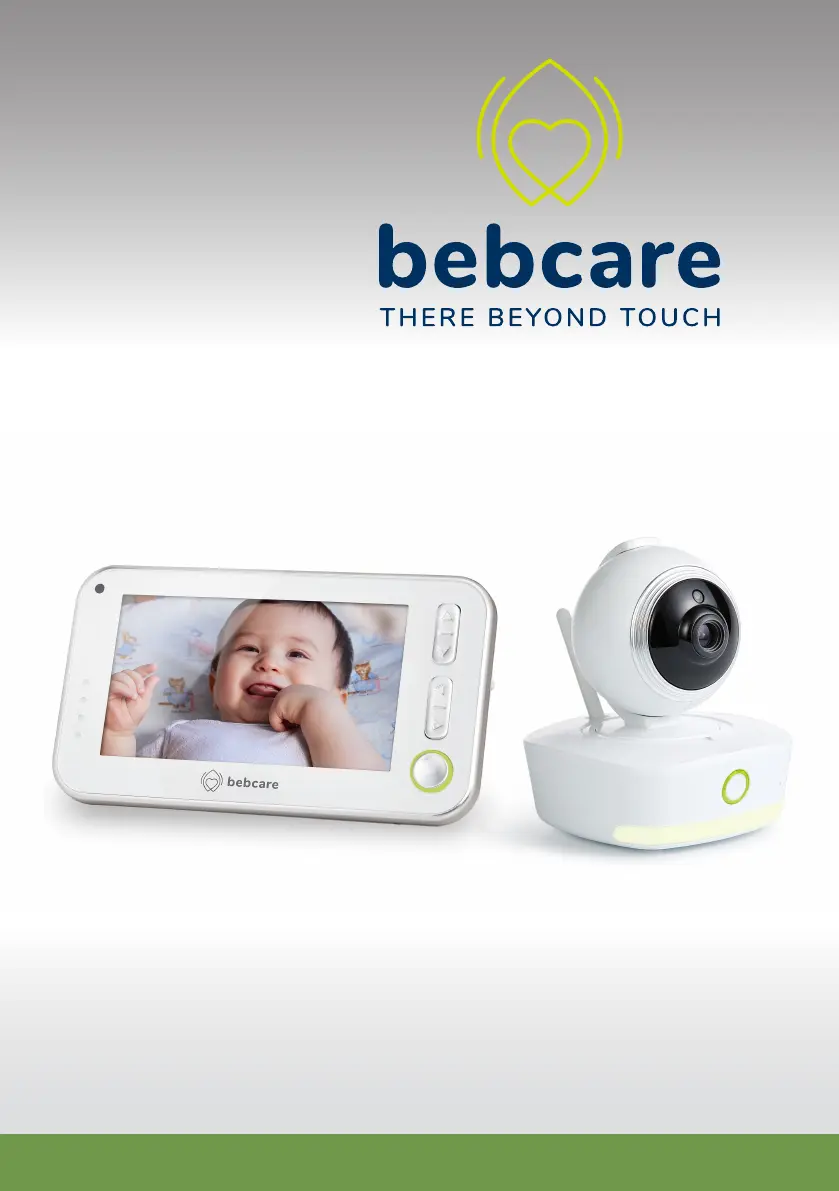

Bebcare Motion - User Manual

Questions and Answers

G
garnerchristineJul 27, 2025
Why does my Bebcare Motion Baby Monitor PU show low battery so often?
- M
  Michael FoxJul 27, 2025
  If your Bebcare Baby Monitor frequently shows a low battery warning on the Parent Unit (PU), it could be due to several reasons. First, the battery may simply need recharging; try using the AC adapter to recharge it. Another reason could be that the 'Screen On' mode is activated without auto-off. Setting it to auto-off or VOX mode can help conserve battery life. Lastly, the rechargeable battery itself might be damaged, in which case you should replace it with a new one.
M
Mrs. Andrea Logan MDJul 31, 2025
What to do if my Bebcare Baby Monitor image is not smooth?
- M
  marymartinJul 31, 2025
  If the image on your Bebcare Baby Monitor screen is not smooth, becomes still, or turns black and white, it could be due to several factors. You might be reaching the operating range limit; try moving the parent unit closer to the camera. Alternatively, the light intensity in the baby’s room may be too low, causing the camera to operate in night vision mode. Increase the light or adjust the night vision settings in the parent unit's menu. Interference from other electronic devices like WiFi routers can also cause this issue; move the source of interference away from the baby monitor.
L
Lisa WebsterAug 4, 2025
Why is the out-of-range alarm always on for my Bebcare Motion Baby Monitor?
- B
  brian86Aug 4, 2025
  If your Bebcare Baby Monitor's out-of-range alarm is always on, there are a few potential causes. First, ensure the camera is switched on and has a proper power supply by checking the AC adapter. Second, the distance between the camera and the Parent Unit (PU) might be exceeding the operating range; try moving them closer together. Finally, the pairing between the camera and PU may have been lost or not performed correctly; in this case, perform the pairing process again.
J
Jennifer WardAug 9, 2025
How to stop my Bebcare Baby Monitor from always transmitting?
- J
  Jack WilliamsonAug 9, 2025
  If your Bebcare Baby Monitor is always transmitting, it's likely because the mic sensitivity or movement sensitivity is set too high. Try adjusting these sensitivities to a lower level. Also, check if the 'Screen On' mode is activated without auto-off. If so, set the monitor to auto-off or VOX mode.
L
Lori HunterAug 13, 2025
Why is there no audio or video on my Bebcare Motion Baby Monitor?
- E
  Elizabeth RochaAug 13, 2025
  If you are not getting any audio or video signal from your Bebcare Baby Monitor, it could be due to a couple of reasons. First, the camera's mic sensitivity might be set too low. You can adjust the mic sensitivity higher using the setting menu in the Parent Unit (PU). Another possible cause is that the AC adapter is improperly connected to the camera; make sure to check the connection.
T
Tyler MorrisAug 17, 2025
Why is the communication range so short on my Bebcare Baby Monitor?
- M
  Michelle TuckerAug 17, 2025
  If you are experiencing a too short communication range with your Bebcare Baby Monitor, it might be due to too many partitions between the camera and the Parent Unit (PU). Try re-locating the camera and PU to reduce the number of obstructions.
J
Jeffrey ArmstrongAug 21, 2025
What to do if there is no audio under split screen mode on my Bebcare Motion?
- C
  Casey DoyleAug 21, 2025
  If there is no audio under split screen mode on your Bebcare Baby Monitor, it means that the Parent Unit (PU) is currently listening to another camera. Press the OK button to switch listening to your preferred camera.

Summary

Features and Warnings

Controls Layout

Power Supply

Pairing

Operation

Camera Operation

Details on placing, switching on, and adjusting the camera unit for optimal use.

Parent Unit Operation

Instructions for operating the parent unit, including volume and talk-back features.

Movement Sensor Mat Setup

Guide on placing and setting up the movement sensor mat for breathing monitoring.

Precautions

Standard Accessories

Trouble Shooting Guide

Specifications

Bebcare Motion Specifications

Power

power supply	Tx 5V DC 1A external supply
battery	Rx 3.7V 1400mAh Li polymer battery
charging current	300mA

Operating Environment

operating frequency	2410.000MHz ~ 2473.000MHz
operating distance	300 m
operating temperature	-10℃ to +50℃

Camera

RF power output	17dbm（50m W ）
VOX sensitivity	level 1 50-55db /level 2 55-60db/ level 3 60-65db /level 4 65-70db/level 5 70-75db
night vision changeover	level +2 5 Lux/ level +1 4 Lux/level 0 2 Lux/level -1 1 Lux/level -2 0.5 Lux

Power Consumption
