BEC MX-210NP - Front Panel Leds

Quick Start Guide
2

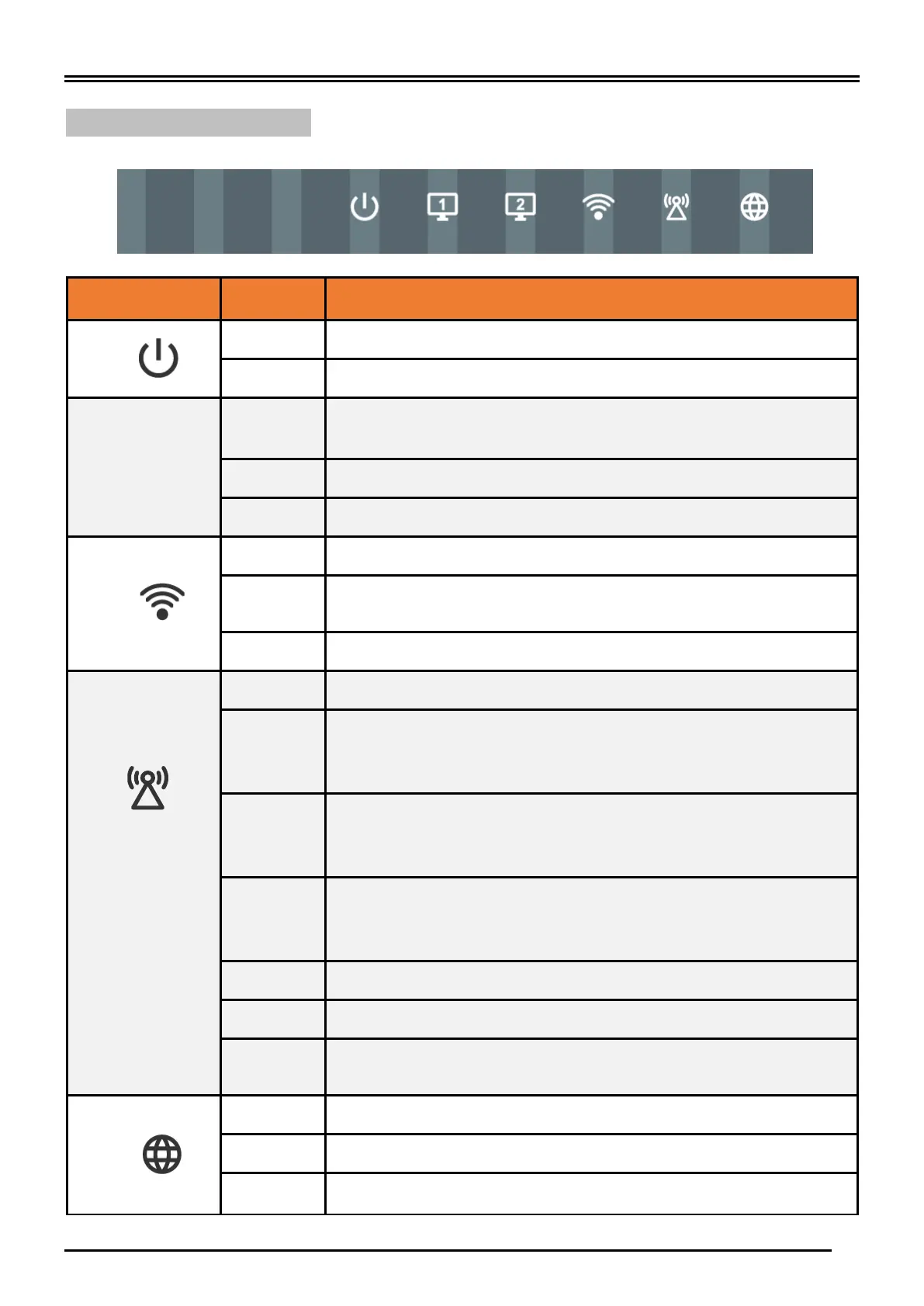

Front Panel LEDs
LED
STATUS
DESCRIPTION
Power
Green
System is up and ready
Red
Boot failure
Ethernet Port
LAN 1 - 2
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
Wireless
Green
Wireless connection established
Green
blinking
Data being transmitted / received
Orange
WPS configuration is in progress
LTE
(Received Signal
Strength
Indicator)
Green
RSSI greater than -69 dBm. Excellent signal condition
Green
Flashing
quickly
RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing
quickly
RSSI from -99 to -81 dBm. Fair signal condition.
Orange
Flashing
slowly
RSSI less than -99 dBm. Poor signal condition.
Orange
No signal and the cellular module is in service
Off
No LTE module or LTE module fails
Green &
Orange
MX-210NP is either in debug mode or in upgrading firmware process
Internet
Green
IP address has received; traffic is passing thru the device.
Red
IP address request has failed.
Off
MX-210NP is either in bridged mode or WAN connection not ready.
