Becker AR 3201 - Operating Instructions; Controls and Indicators Overview

Section 3 Operating Instructions
3.1 Control and Indicators

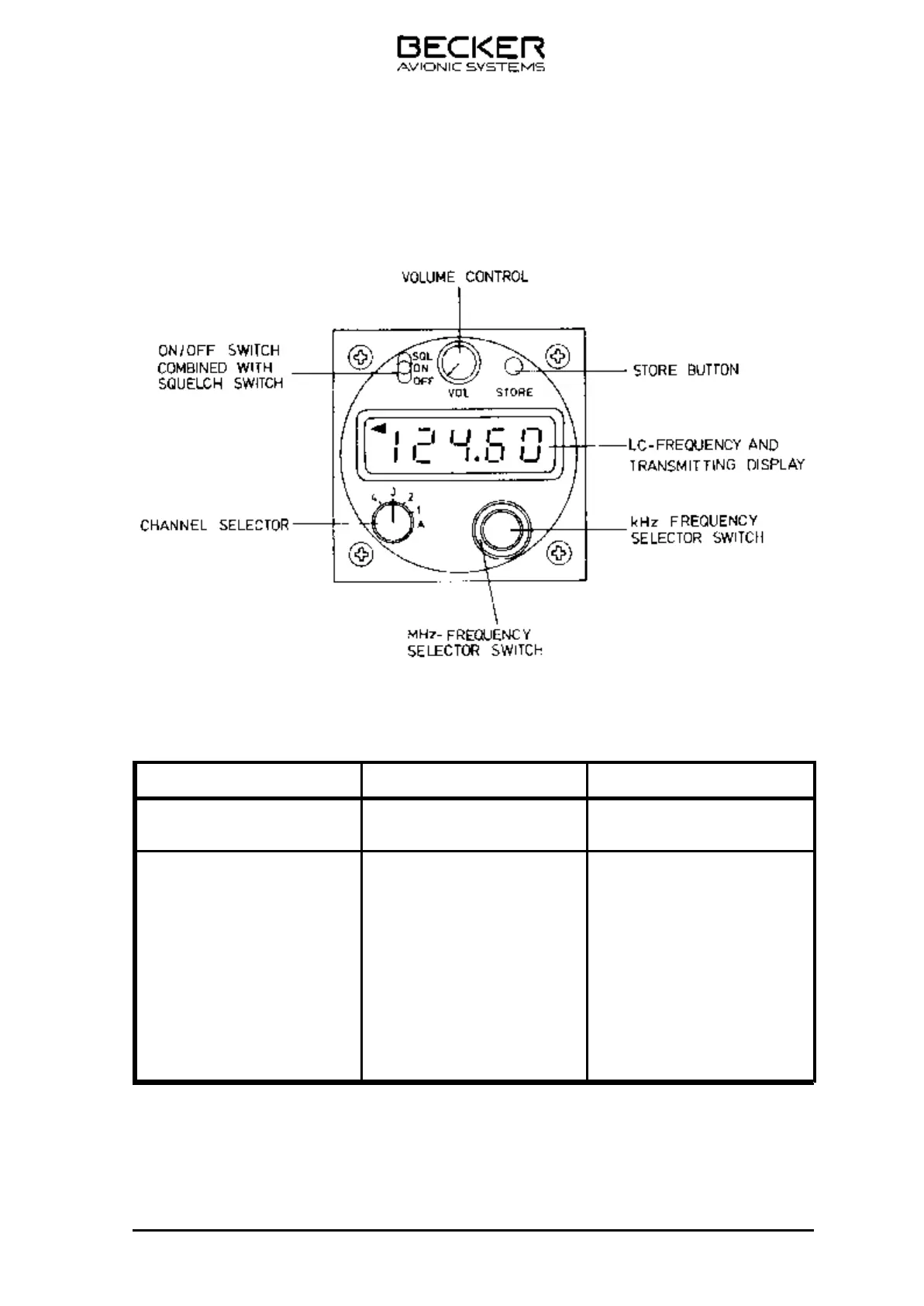

Fig. 3-1 Controls and indicators
Controls and indicators Description Function
Volume control Potentiometer Turning control clock-wise
increases volume continuously.
ON/OFF switch combined with
squelch
3-position rocker switch Postion OFF :
VHF transceiver OFF.
Position ON :
VHF transceiver ON, squelch
OFF
(input noise audible).
Position SQL :
Transceiver ON, Squelch ON.
Input limited to transmitters
having a field strength
exceeding the set squelch
threshold
AR 3201 - ( )
DV 28110.03/04 Issue 02/92 Page 3-1
