CSD - Version: 26/99
BE
5

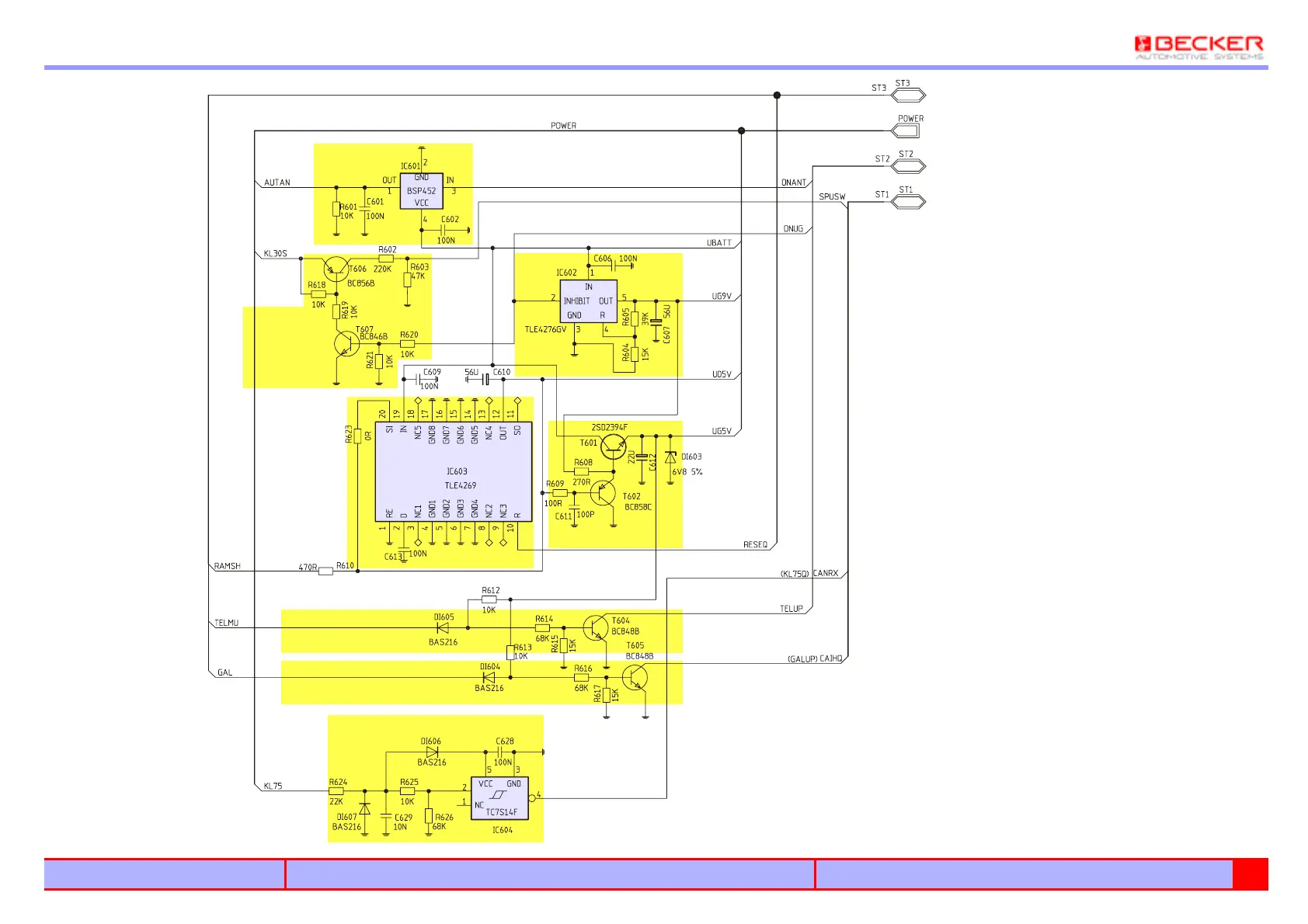

Circuit diagram - Mercedes Benz MY98
Power supply UG9V; UD5V; UG5V (Board 4010) 3301Audio 30 DIN Export
GAL-input
Inverter -Ignition KL75-
Voltage
control
UG5V
UG9V
12V out
UG9V
Tel.- Mute- input
