CSD - Version: 26/99
BE
16

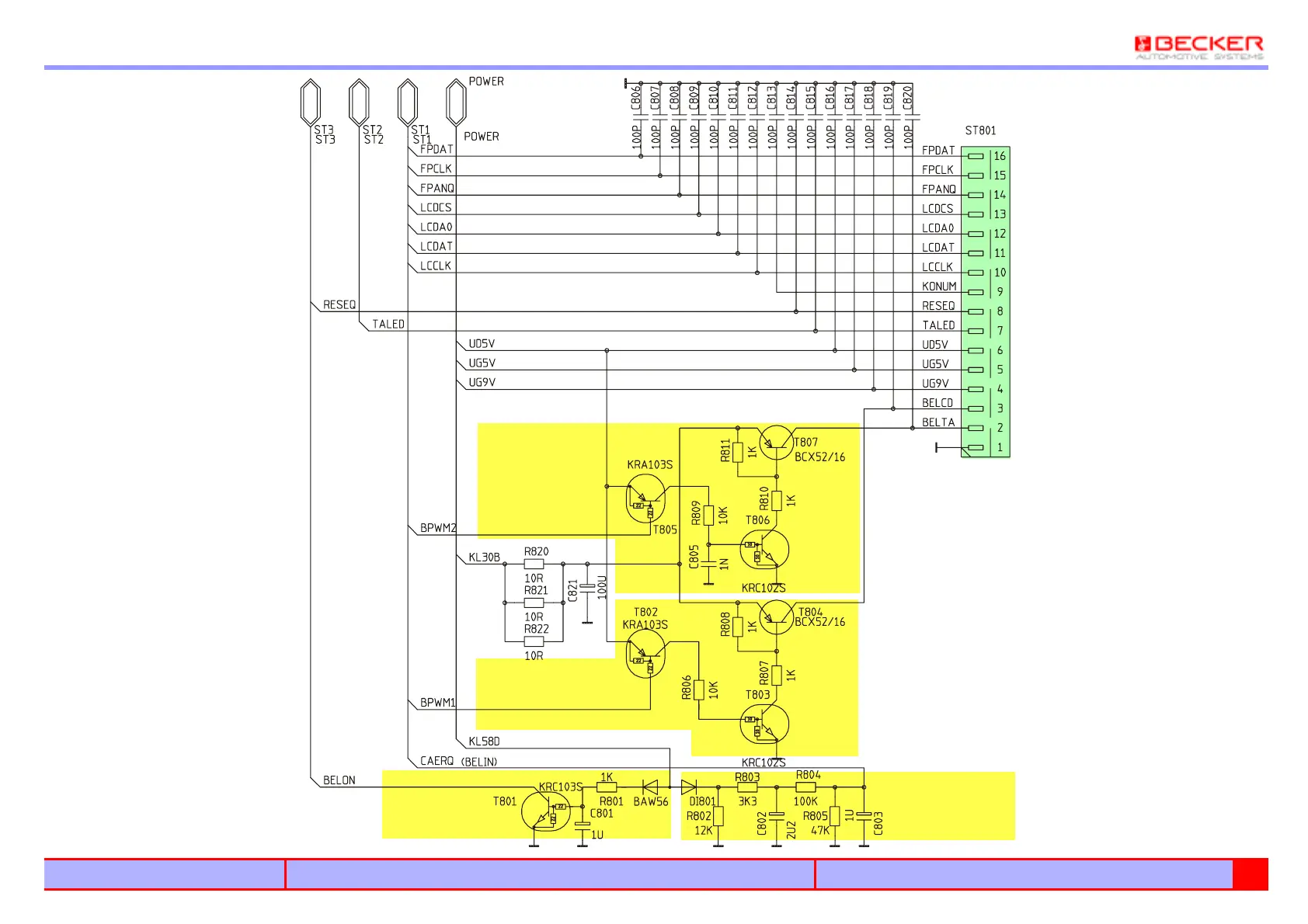

Circuit diagram - Mercedes Benz MY98
Illumination
-on-
Illumination
control
Display
Illumination
control
Keyboard
Illumination
-Brightness-
Front Front-Interface (Board 4010)
16
3301Audio 30 DIN Export
