Assembly and Operating Instructions
Connectionasadrivecontroller
 Warning
• Riskofinjurybyelectricshock.
• Terminalconnectionsmustbecarriedoutbyanauthorisedelectri-
cian!
• IfmorethanonedriveiscontrolledusingtheSWC52,thedrivesmust
bedecoupledbyrelaycontrols.Thisdecouplingisnotapplicableto
Beckerdriveswithelectroniclimitstop.
 Alwaysobservetheswitchedcurrentofthedevice.

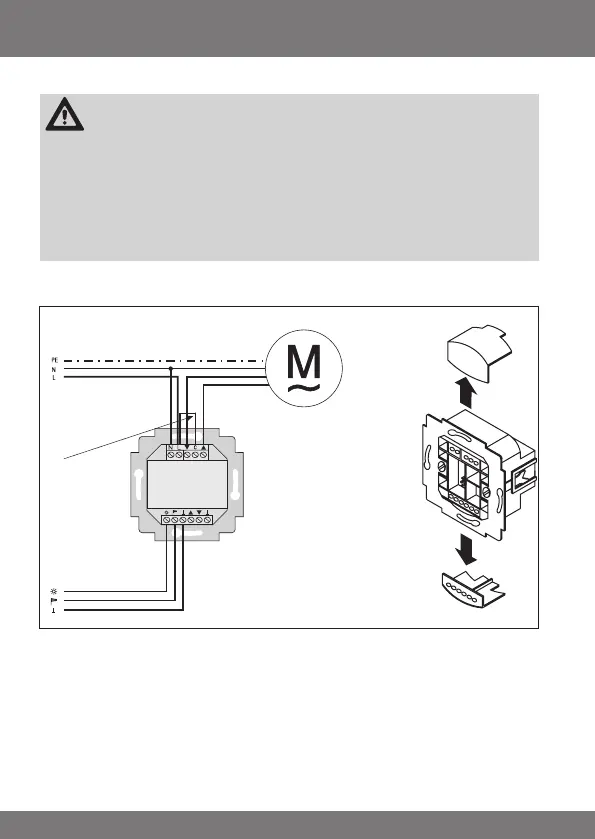

1. Connect the power supply unit to the SWC52 as follows:
2. Put the protective caps back on the power supply unit.
3. Fix the power supply unit in the box.
4. Put the operating device in the frame and plug it into the power supply unit.
Sensor
green/yellow
blue
brown/black
bridge
Tubular drive
central
command
black/brown
SWC52
