Intended use
The type of tubular drive in these instructions is intended exclusively for the operation of articulated-arm awnings, cassette awn-
ings, drop-arm awnings, screens and conservatory shades. To function properly, this type of tubular drive needs a fixed stop in the
retracted limit position (e.g., retracted awning).
It may only be used in networked systems if all the individual drives are exactly synchronised and reach the limit positions at the
same time.
For roller shutter applications, please use only the types of tubular drive designed for this purpose.
This type of tubular drive is designed for use in single systems (one drive per barrel).
The tubular drive must not be used in potentially explosive areas.
The connecting cable is not suitable for transporting the drive. Always carry the drive by the housing tube.
Other applications, uses and modifications are not permitted in order to protect the safety of the users and others, since these ac-
tions can impair the system’s safety and carry the risk of personal injury and property damage. The drive manufacturer does not
accept liability for damages or injury arising from such actions.
Always observe the information in these instructions when operating or repairing the system. The drive manufacturer does not ac-
cept liability for damage or injury resulting from improper usage.
Assembling and disassembling the plug-in connecting cable
Assembling the plug-in connecting cable
Insert the dead connecting cable into the drive head until the locating lug clicks into place in the drive. If necessary, use a suitable
flathead screwdriver to assist with insertion. Set the screwdriver into one of the two plug grooves provided for this purpose.
Check that the cable is properly engaged.

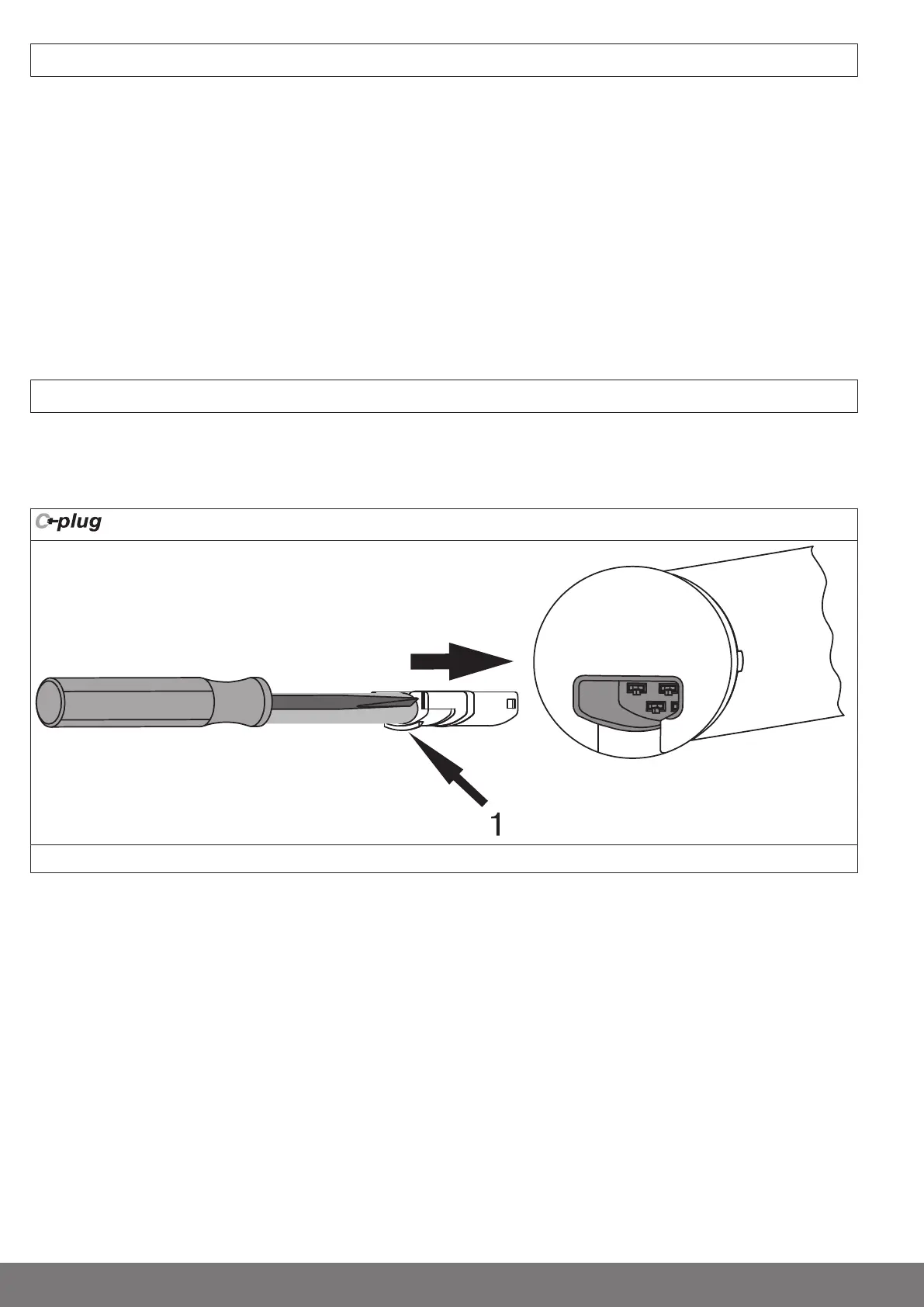

1 = locating lug
6
