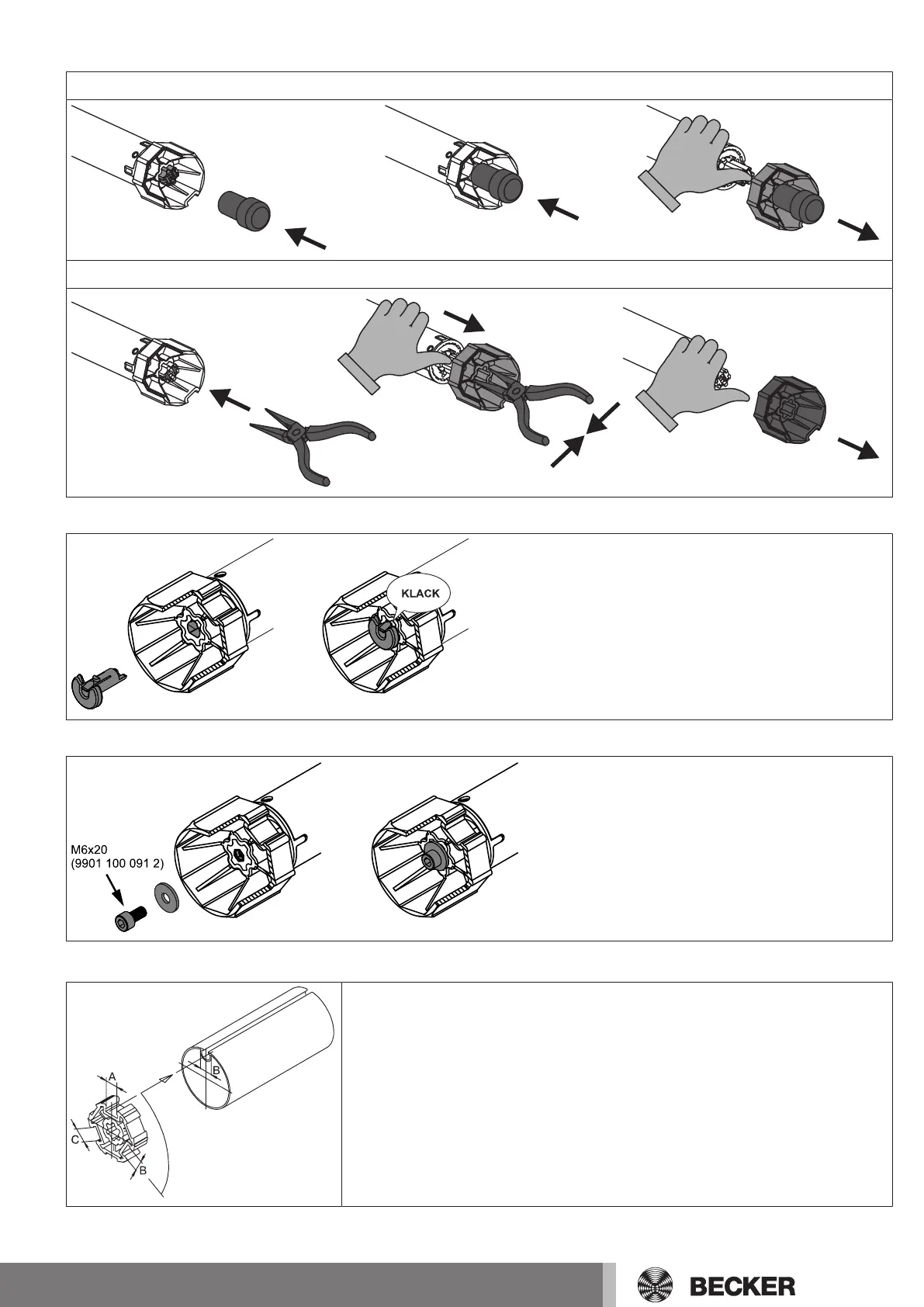

Disassembling the drive adapter with safety catch on the drive shaft
Disassembly with disassembly tool, Item no. 4930 300 606 0
Disassembly with long nose pliers
Assembling and disassembling the drive adapter with separate drive adapter safety catch
Assembling and disassembling the drive adapter with screw connection
Mounting the drive in the tube
For profile tubes:
In the case of some drive adapters, tolerances of the groove widths in different bar-
rels can be offset by rotating the drive adapter into a different groove recess. These
groove recesses have different sizes and allow the drive to fit exactly.
