4.3 Technical data
Technical data CX8090
Processor 32bit, 400MHz, ARM9
Internal main memory 64 MB RAM (internal, not extendable)
Operating system Microsoft Windows CE 6.0
Web-based Management yes
Flash memory MicroSD card (ATP) 512 MB (optionally 1, 2, 4, 8 GB)
Interfaces 1 x USB device (behind the front panel)
1 x RJ45 Ethernet, 10/100 Mbit/s
2 x RJ45 switched, 100 Mbit/s
Protocols Realtime-Ethernet, ADS, ModbusTCP, TCP/IP, UDP/
IP
Interface for I/O terminals K-bus or E-bus, automatic detection
Process data at K-Bus max. 2kByte input data
max. 2kByte output data
Diagnostics LED 1 x power, 1 x TC status, 2 x bus status
Clock Internal clock with battery backup (RTC) for time and
date (battery replaceable)
Operating system Microsoft Windows CE
Control software TwinCAT PLC runtime (from version 2.11 R3)
Programming TwinCAT PLC
Programming languages IEC 61131-3
Online Change Yes
Up/download code Yes/Yes
Power supply 24 V
DC
(-15 %/+20 %)
UPS 1-second UPS
Power supply for I/O terminals (K-Bus or E-Bus) 2 A max.
Power contact current load 10 A max.
Max. power loss 3,0 W (including system interfaces)
Dielectric strength 500 V (supply / internal electronics)
Dimensions (W x H x D) 64 mm x 100 mm x 73 mm
Weight approx. 180 g
Permissible ambient temperature during operation 0°C to +55°C
Permissible ambient temperature during storage -25°C to +85°C
see notes under: Transport and storage [}11]

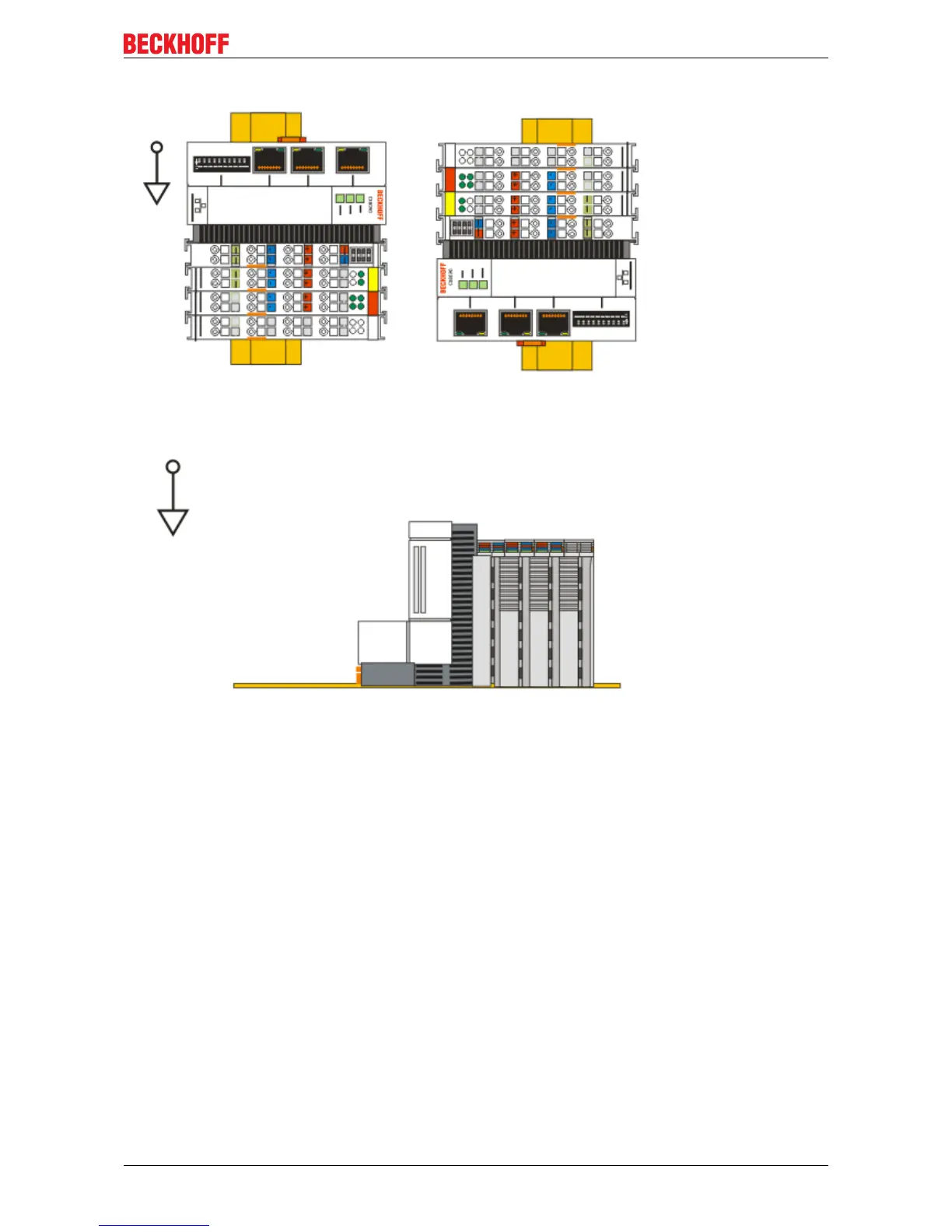

Installation position See chapter Installation positions
Relative humidity 95 % no condensation
Vibration / shock resistance conforms to EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2 / EN 61000-6-4
Protection class IP20
System data Ethernet (CX8090)
Number of I/O modules depending on controller
Number of I/O points depending on controller
Transmission medium 4 x 2 twisted pair copper cable, category 5 (100
Mbaud), shielded
Cable length 100 m
Data transfer rate 100 MBaud
Topology Star-form cabling, line topology
