Beckhoff CX9020 User Manual

Mounting and wiring
3.3 Installation on the mounting rail

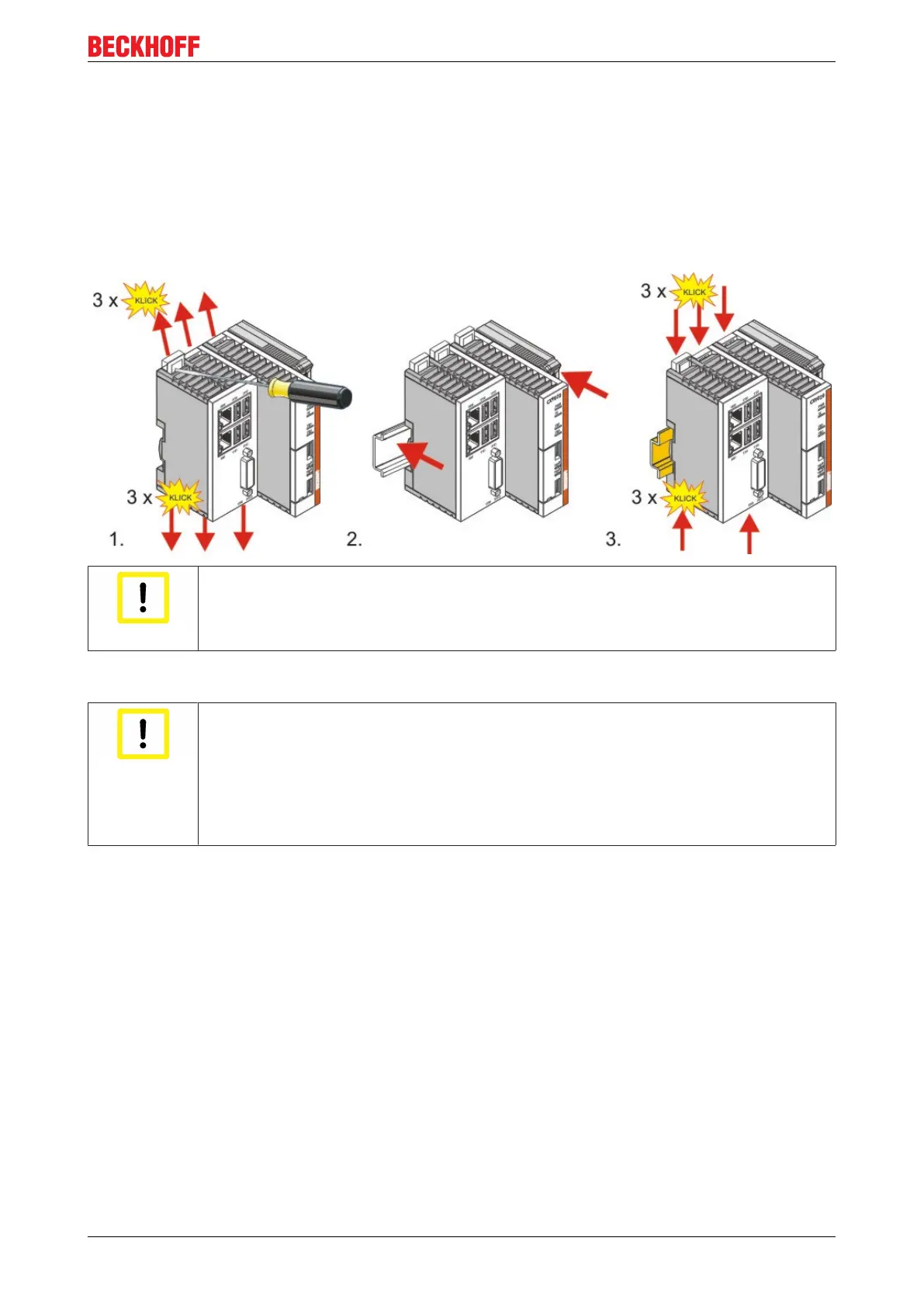

Snapping onto the mounting rail
The CX9020 can simply be snapped onto the mounting rail. The bar clips are inserted on the top side and
underside Then simply position the block on the mounting rail and push it slightly until it engages on the
right-hand side. This is indicated by a distinct click. The bars are then engaged again. The engagement of
the individual bars is indicated by a distinct click.
Attention
Avoid damage!
Do not force the module or apply excessive pressure!
Installation position
Attention
Comply with the permitted installation position and minimum distances!
The maximum ambient temperature for CPU modules mounted on a top-hat rail is 60°C.
The orientation in which the device is fitted must be selected in such a way that cooling air
can flow vertically through the ventilation holes. The images below show the permitted and
two incorrect installation positions. Mounting must provide a clearance of 30 mm both
above and below a CX9020 device combination to ensure adequate ventilation of the base
CPU module and the power supply unit.
CX9020 19Version: 1.5

Beckhoff CX9020 Specifications

General

CPU	ARM Cortex-A8, 1 GHz
Power Supply	24 V DC (-15 %/+20 %)
Protection Class	IP 20
Operating System	Windows Embedded Compact 7
Operating Temperature	-25 °C to +60 °C
Flash Memory	256 MB
