2.2.2.2 EK1101-0080 - Introduction

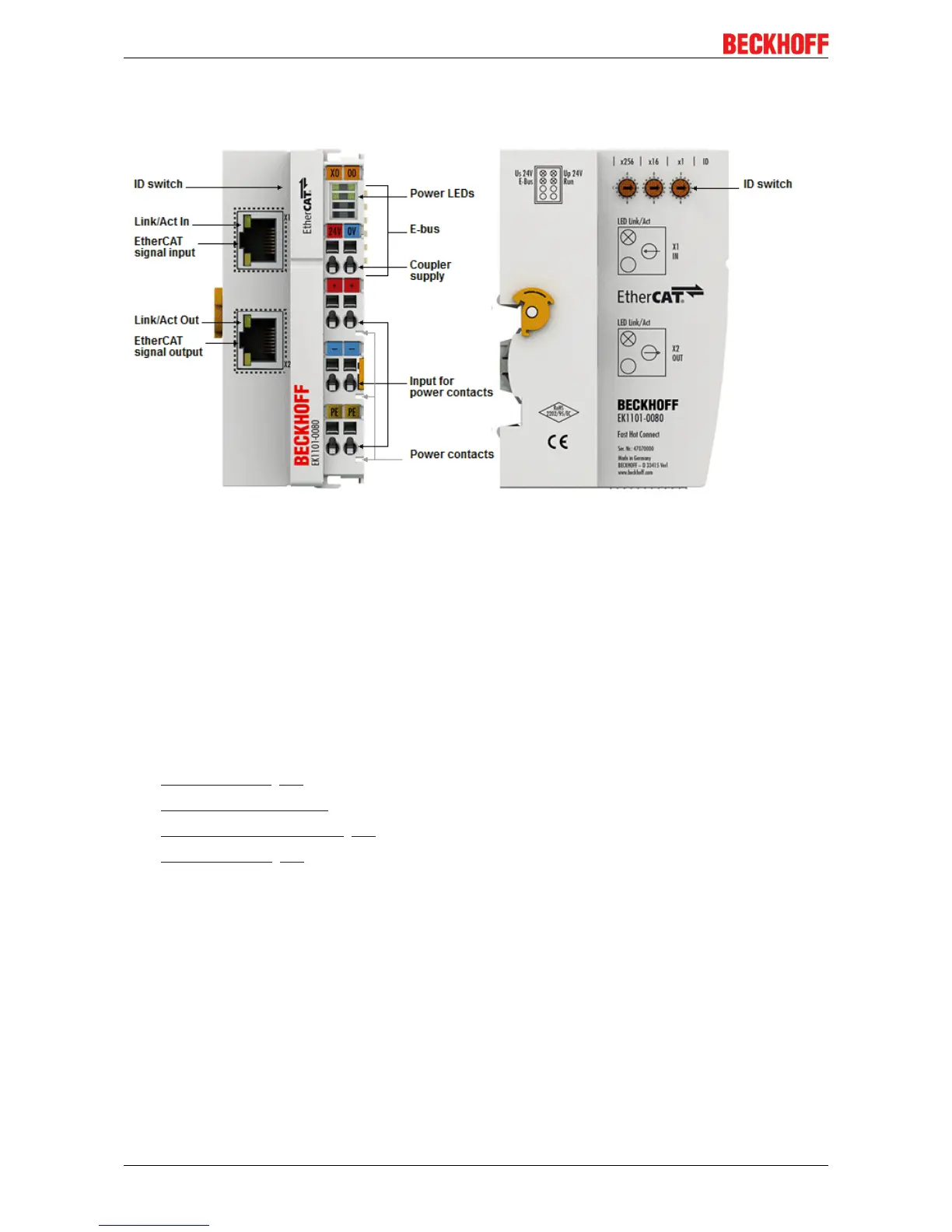

EK1101-0080 EtherCAT coupler with ID switch
The EK1101-0080 EtherCAT coupler with Fast Hot Connect technology is an extension of the EK1101
coupler.
Hot Connect is an EtherCAT feature for changing topologies through direct coupling or uncoupling during
operation. Coupled EtherCAT components are already quickly linked to the data communication after
connection as standard. Fast hot-connect technology further reduces the connection time significantly,
enabling even faster tool changes. Fast hot-connect ports may only be connected to each other, which is
why they are specially identified.
The EK1101-0080 EtherCAT coupler with Fast Hot Connect is complemented by the EK1122-0080
EtherCAT junction with Fast Hot Connect.
Quick links
• EtherCAT basics [}31]
• Configuration instructions
• Notes on Fast Hot Connect [}19]
• Diagnostic LEDs [}66]

Beckhoff EK1100 Specifications

General

Product Type	EtherCAT Coupler
Number of Ports	2
Fieldbus	EtherCAT
Bus Interface	EtherCAT
Protection Class	IP20
Max. Current Supply for the E-bus	2 A
Electrical Isolation	500 V (E-bus/Fieldbus)
Weight	approx. 150 g
Relative Humidity	95%, no condensation
Vibration/Shock Resistance	Conforms to EN 60068-2-6/EN 60068-2-27
EMC Immunity/Emission	Conforms to EN 61000-6-2/EN 61000-6-4
Approvals/Markings	CE, UL, ATEX, IECEx
Power Supply	24 V DC (-15%/+20%)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Current Consumption Power Contacts	10 mA
Number of I/O Modules	64
Installation Position	any
