Appendix
EK110x, EK15xx 75Version: 3.6

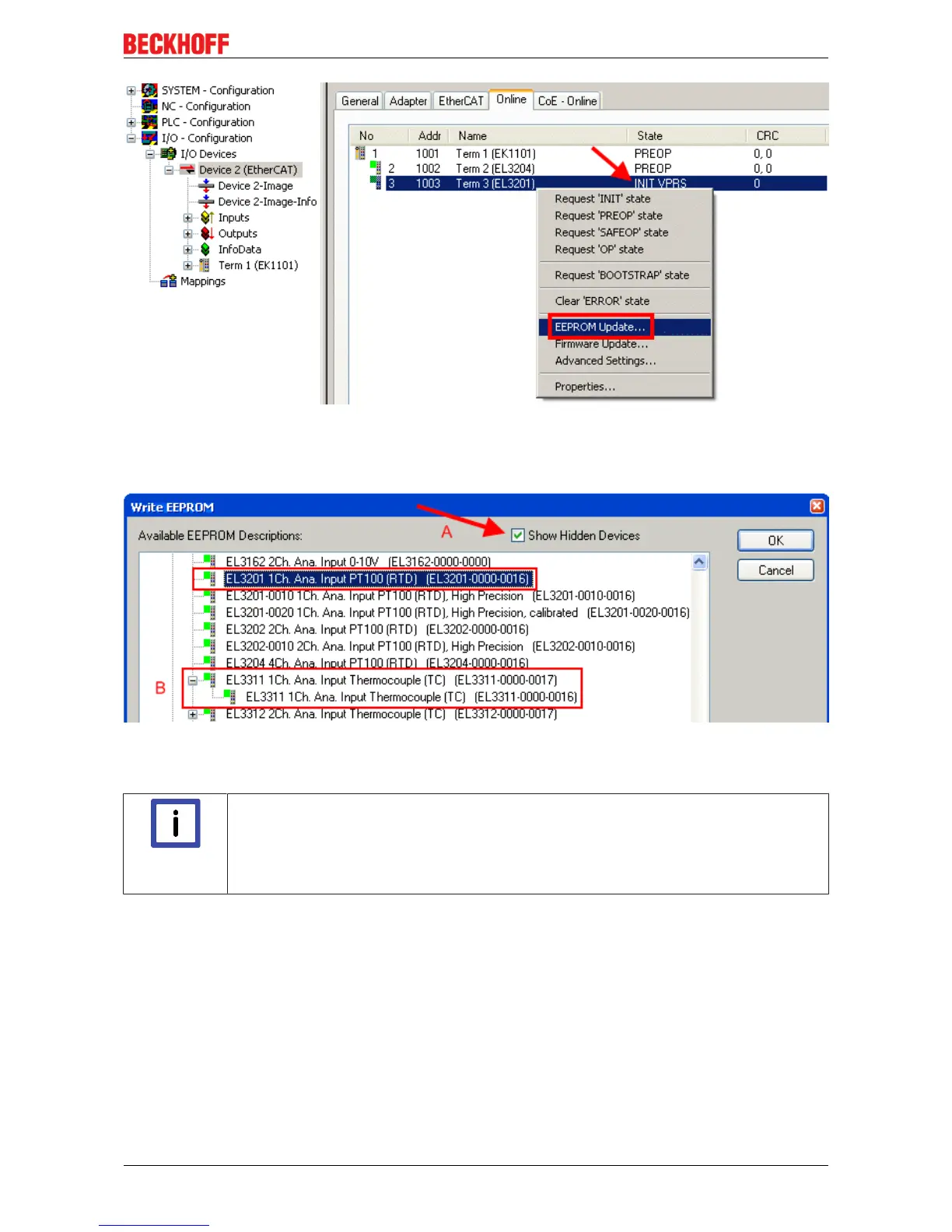

Fig.59: EEPROM Update
The new ESI description is selected in the following dialog, see Fig. Selecting the new ESI. The checkbox
Show Hidden Devices also displays older, normally hidden versions of a slave.
Fig.60: Selecting the new ESI
A progress bar in the System Manager shows the progress. Data are first written, then verified.
Note
The change only takes effect after a restart.
Most EtherCAT devices read a modified ESI description immediately or after startup from
the INIT. Some communication settings such as distributed clocks are only read during
power-on. The EtherCAT slave therefore has to be switched off briefly in order for the
change to take effect.
7.4.2 Firmware explanation
Determining the firmware version
Determining the version on laser inscription
Beckhoff EtherCAT slaves feature serial numbers applied by laser. The serial number has the following
structure: KK YY FF HH

Beckhoff EK1100 Specifications

General

Product Type	EtherCAT Coupler
Number of Ports	2
Fieldbus	EtherCAT
Bus Interface	EtherCAT
Protection Class	IP20
Max. Current Supply for the E-bus	2 A
Electrical Isolation	500 V (E-bus/Fieldbus)
Weight	approx. 150 g
Relative Humidity	95%, no condensation
Vibration/Shock Resistance	Conforms to EN 60068-2-6/EN 60068-2-27
EMC Immunity/Emission	Conforms to EN 61000-6-2/EN 61000-6-4
Approvals/Markings	CE, UL, ATEX, IECEx
Power Supply	24 V DC (-15%/+20%)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Current Consumption Power Contacts	10 mA
Number of I/O Modules	64
Installation Position	any
