Beckhoff EK1100 User Manual

Product overview
EK110x, EK15xx 27Version: 3.6
2.4.2 EK1501-0010
2.4.2.1 EK1501-0010 - Introduction

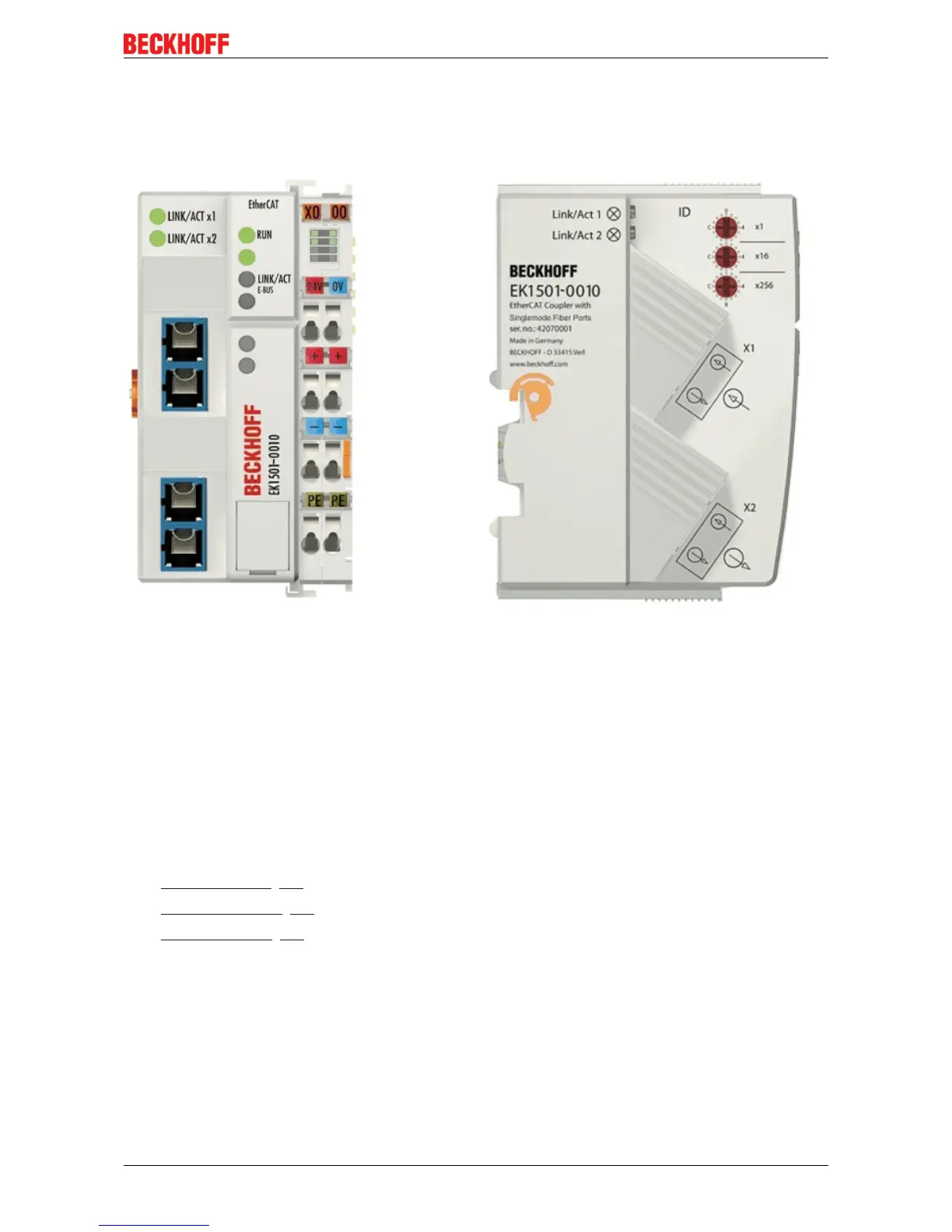

EK1501-0010 EtherCAT coupler with ID switch, single-mode optical fiber connection
The EK1501-0010 coupler differs from the EK1501 only in the transceiver used. Transmission ranges of up
to 20 km can be attained with the single-mode technique using appropriate optical fiber cables.
An attenuation budget of 10 dBm is available between the EK1501-0010 and the associated EK1521-0010
branch. The following factors can be taken as a basis for the estimation of the attenuation:
• Two SC plug connectors: 0.25 dBm each
• typical optical fiber cable with 0.4 dB/km attenuation
The sum of all attenuations may not exceed 10 dBm. The installed fiber optic section is to be validated by
measurement if necessary.
Quick links
• EtherCAT basics [}31]
• Application notes [}56]
• Diagnostic LEDs [}66]

Beckhoff EK1100 Specifications

General

Product Type	EtherCAT Coupler
Number of Ports	2
Fieldbus	EtherCAT
Bus Interface	EtherCAT
Protection Class	IP20
Max. Current Supply for the E-bus	2 A
Electrical Isolation	500 V (E-bus/Fieldbus)
Weight	approx. 150 g
Relative Humidity	95%, no condensation
Vibration/Shock Resistance	Conforms to EN 60068-2-6/EN 60068-2-27
EMC Immunity/Emission	Conforms to EN 61000-6-2/EN 61000-6-4
Approvals/Markings	CE, UL, ATEX, IECEx
Power Supply	24 V DC (-15%/+20%)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Current Consumption Power Contacts	10 mA
Number of I/O Modules	64
Installation Position	any
