Beckhoff EK1100 User Manual

Commissioning/application notes
EK110x, EK15xx58 Version: 3.6
Note
Installation notes
• permitted bending radius
• permitted tensile strength
• sensitivity of the exposed contact ends
Further information can be found in the following documents:
• ITU recommendation ITU-T G.651 - G.655
• EN 50173:2002
• EN 60793-2
Connecting and releasing the optical fiber cable at the junction
Attention
Risk of damage to the cable!
To disconnect the optical fiber cable always pull the connector to release the locking mech-
anism - never pull the optical fiber cable itself.
Note
Crossover cables
Not that crossover cables may have to be used for connecting the EK1521, EK1521-0010
with the EK1501/ EK1501-0010.
Practical tip:
The infrared light emission can be made visible via a digital or smartphone camera at the
junction or at the coupler (see figure). Avoid 'light meeting light' when connecting the optical
fiber cable (Tx → Tx). In this case no connection can be established, and crossover cables
must be used (Tx → Rx).

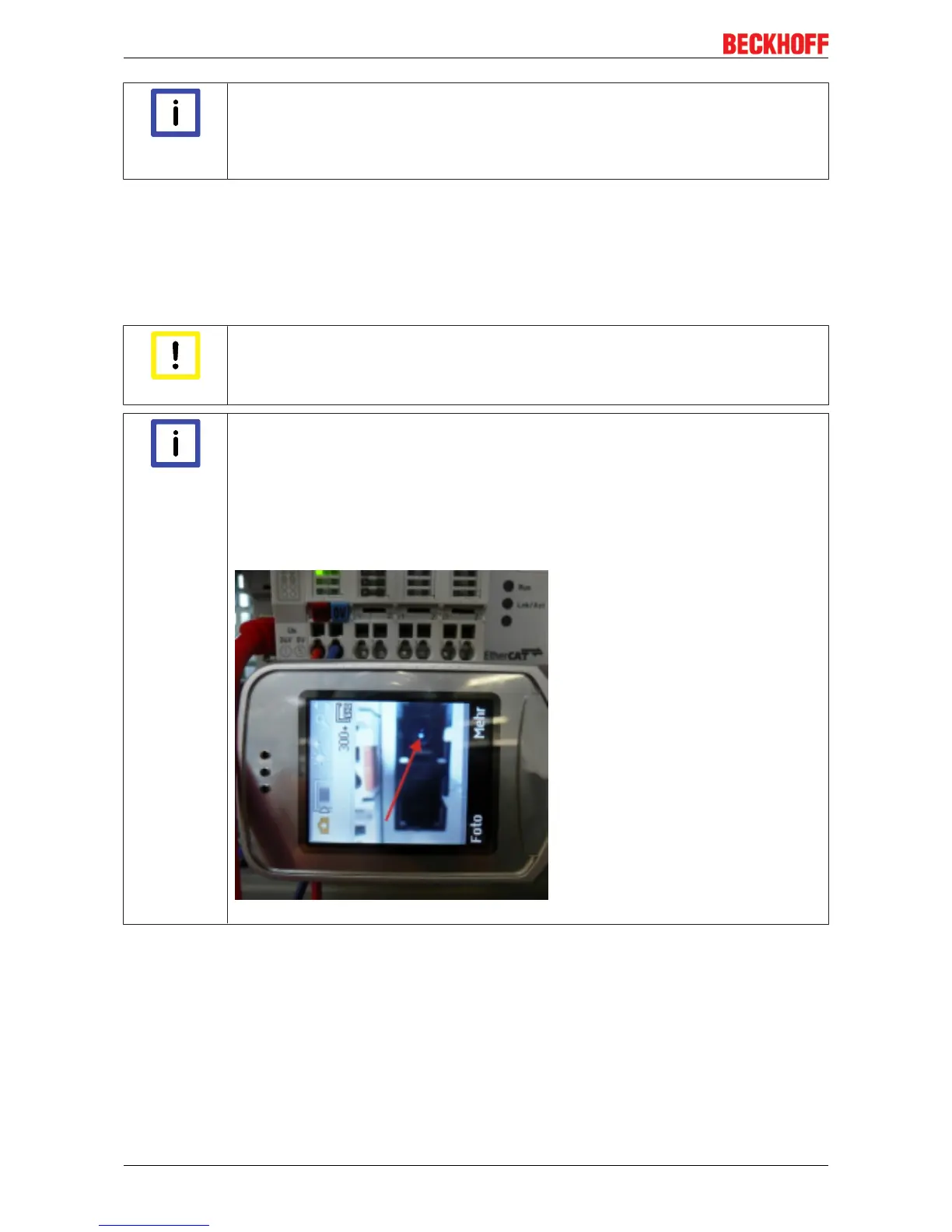

Figure: Visualization of infrared light at the SC duplex connector

Beckhoff EK1100 Specifications

General

Product Type	EtherCAT Coupler
Number of Ports	2
Fieldbus	EtherCAT
Bus Interface	EtherCAT
Protection Class	IP20
Max. Current Supply for the E-bus	2 A
Electrical Isolation	500 V (E-bus/Fieldbus)
Weight	approx. 150 g
Relative Humidity	95%, no condensation
Vibration/Shock Resistance	Conforms to EN 60068-2-6/EN 60068-2-27
EMC Immunity/Emission	Conforms to EN 61000-6-2/EN 61000-6-4
Approvals/Markings	CE, UL, ATEX, IECEx
Power Supply	24 V DC (-15%/+20%)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Current Consumption Power Contacts	10 mA
Number of I/O Modules	64
Installation Position	any
