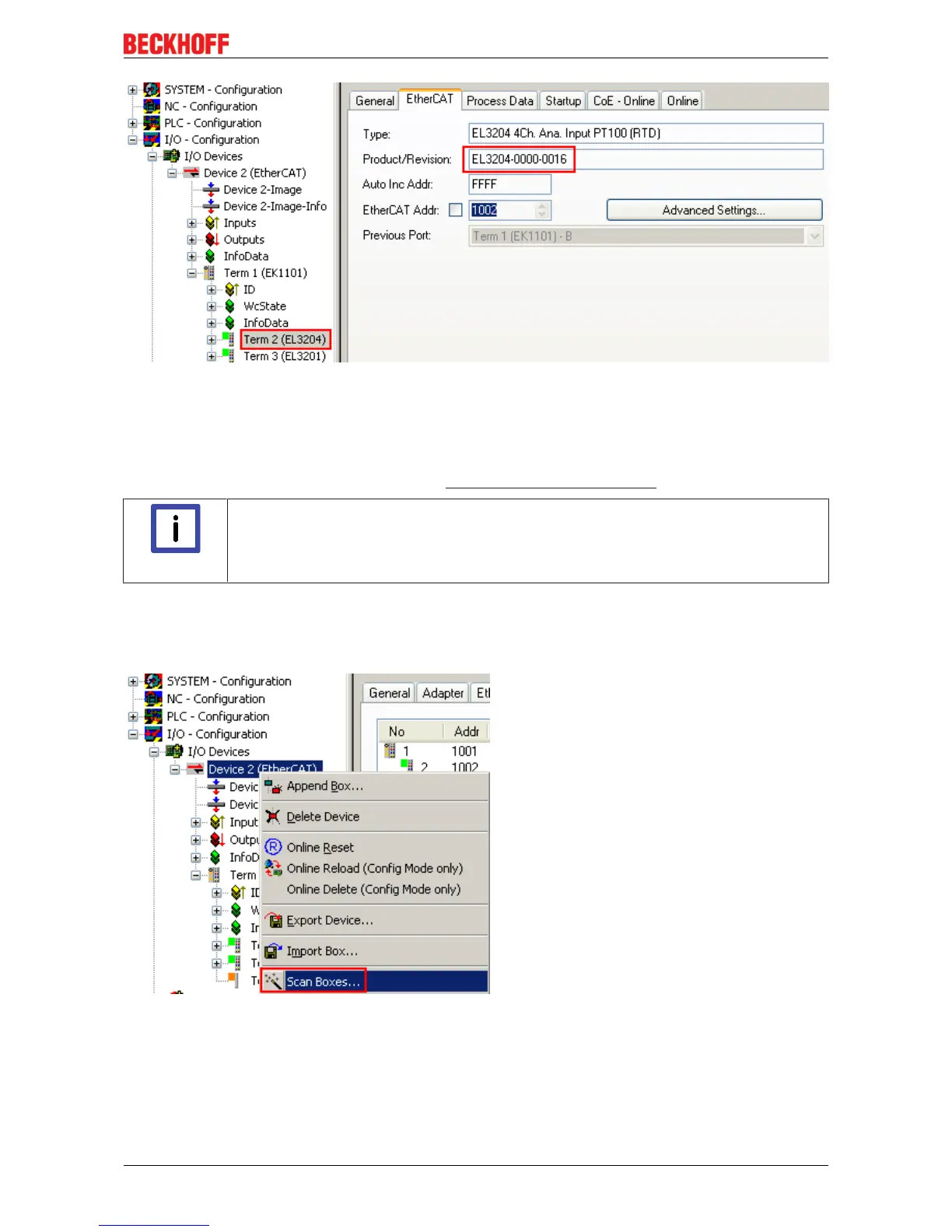

Fig.55: Device identifier consisting of name EL3204-0000 and revision -0016
The configured identifier must be compatible with the actual device description used as hardware, i.e. the
description which the slave has loaded on start-up (in this case EL3204). Normally the configured revision
must be the same or lower than that actually present in the terminal network.
For further information on this, please refer to the EtherCAT system documentation.
Note
Update of XML/ESI description
The device revision is closely linked to the firmware and hardware used. Incompatible com-
binations lead to malfunctions or even final shutdown of the device. Corresponding updates
should only be carried out in consultation with Beckhoff support.
Display of ESI slave identifier
The simplest way to ascertain compliance of configured and actual device description is to scan the
EtherCAT boxes in TwinCAT mode Config/FreeRun:
Fig.56: Scan the subordinate field by right-clicking on the EtherCAT device in Config/FreeRun mode
If the found field matches the configured field, the display shows

Beckhoff EK1100 Specifications

General

Product Type	EtherCAT Coupler
Number of Ports	2
Fieldbus	EtherCAT
Bus Interface	EtherCAT
Protection Class	IP20
Max. Current Supply for the E-bus	2 A
Electrical Isolation	500 V (E-bus/Fieldbus)
Weight	approx. 150 g
Relative Humidity	95%, no condensation
Vibration/Shock Resistance	Conforms to EN 60068-2-6/EN 60068-2-27
EMC Immunity/Emission	Conforms to EN 61000-6-2/EN 61000-6-4
Approvals/Markings	CE, UL, ATEX, IECEx
Power Supply	24 V DC (-15%/+20%)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Current Consumption Power Contacts	10 mA
Number of I/O Modules	64
Installation Position	any
