Appendix
EK110x, EK15xx80 Version: 3.6

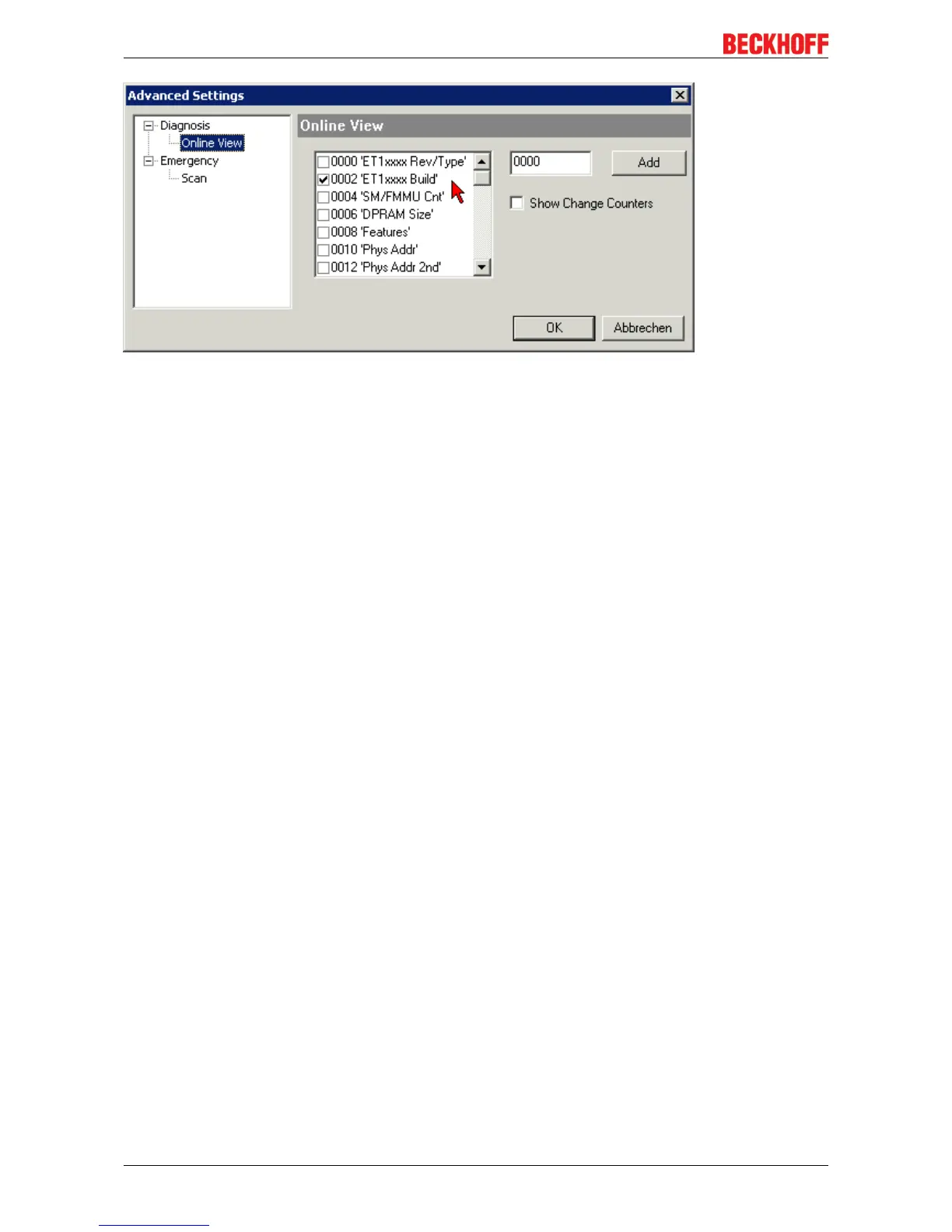

Fig.65: Dialog Advanced Settings
Update
For updating the FPGA firmware
• of an EtherCAT coupler the coupler must have FPGA firmware version 11 or higher;
• of an E-Bus Terminal the terminal must have FPGA firmware version 10 or higher.
Older firmware versions can only be updated by the manufacturer!
Updating an EtherCAT device
The following sequence order have to be met if no other specifications are given (e.g. by the Beckhoff
support):
• Switch TwinCAT system to ConfigMode/FreeRun with cycle time >= 1ms (default in ConfigMode is
4ms). A FW-Update during real time operation is not recommended.

Beckhoff EK1100 Specifications

General

Product Type	EtherCAT Coupler
Number of Ports	2
Fieldbus	EtherCAT
Bus Interface	EtherCAT
Protection Class	IP20
Max. Current Supply for the E-bus	2 A
Electrical Isolation	500 V (E-bus/Fieldbus)
Weight	approx. 150 g
Relative Humidity	95%, no condensation
Vibration/Shock Resistance	Conforms to EN 60068-2-6/EN 60068-2-27
EMC Immunity/Emission	Conforms to EN 61000-6-2/EN 61000-6-4
Approvals/Markings	CE, UL, ATEX, IECEx
Power Supply	24 V DC (-15%/+20%)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Current Consumption Power Contacts	10 mA
Number of I/O Modules	64
Installation Position	any
