Parameterization and commissioning
EL6731
105
Version: 2.8

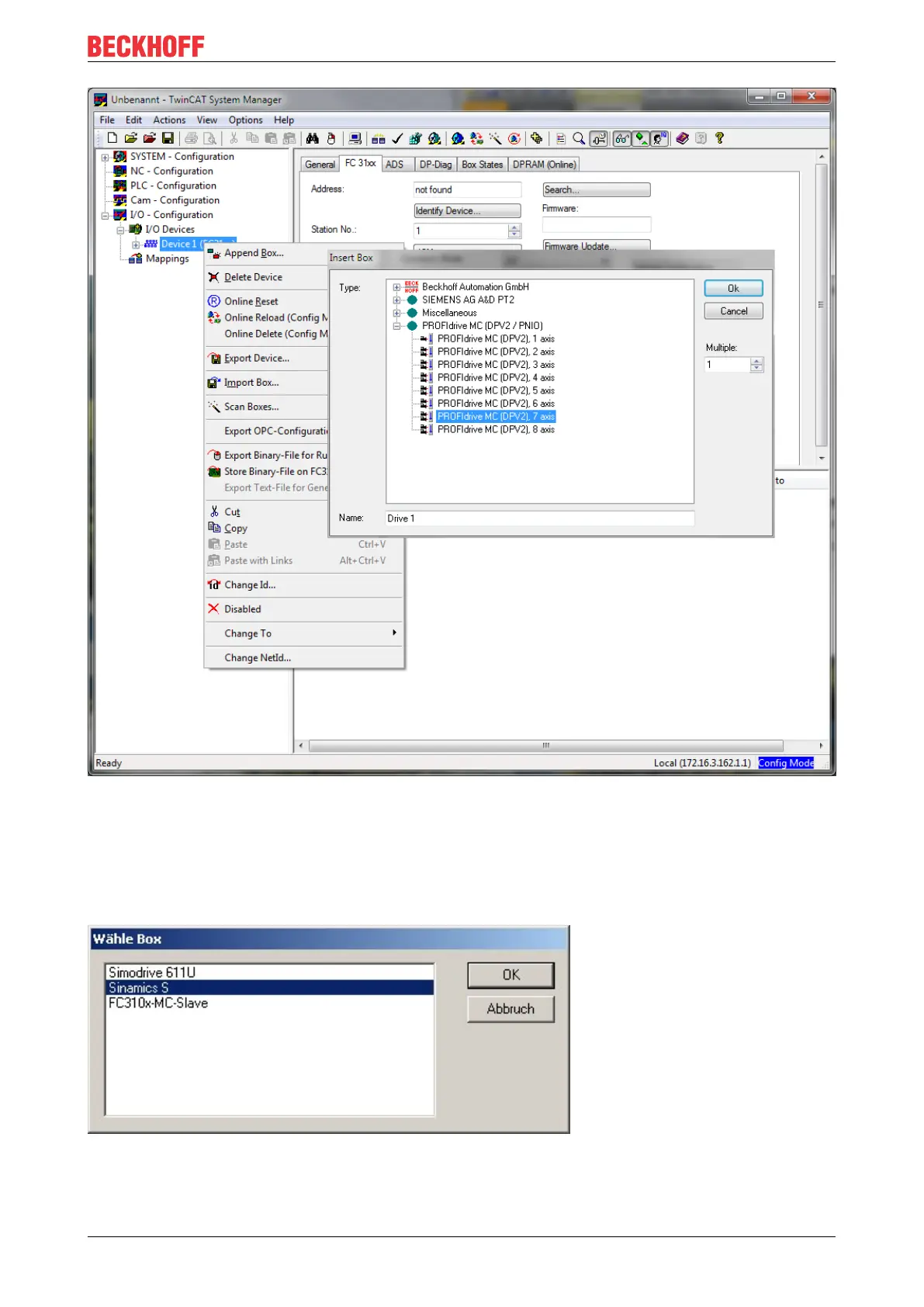

Fig.104: Inserting a box
GSG file
Please select "Sinamics S" from the "Select Box" dialog:
Ensure that the file Profidrive2.dat and the GSG file (editor) referred to in this file are in directory \TwinCAT
\IO\Profibus\
Fig.105: Selection dialog
Example Profidrive2.dat:
104
106
Table of Contents
Table of Contents
3
