Commissioning
EL600x, EL602x130 Version: 4.6

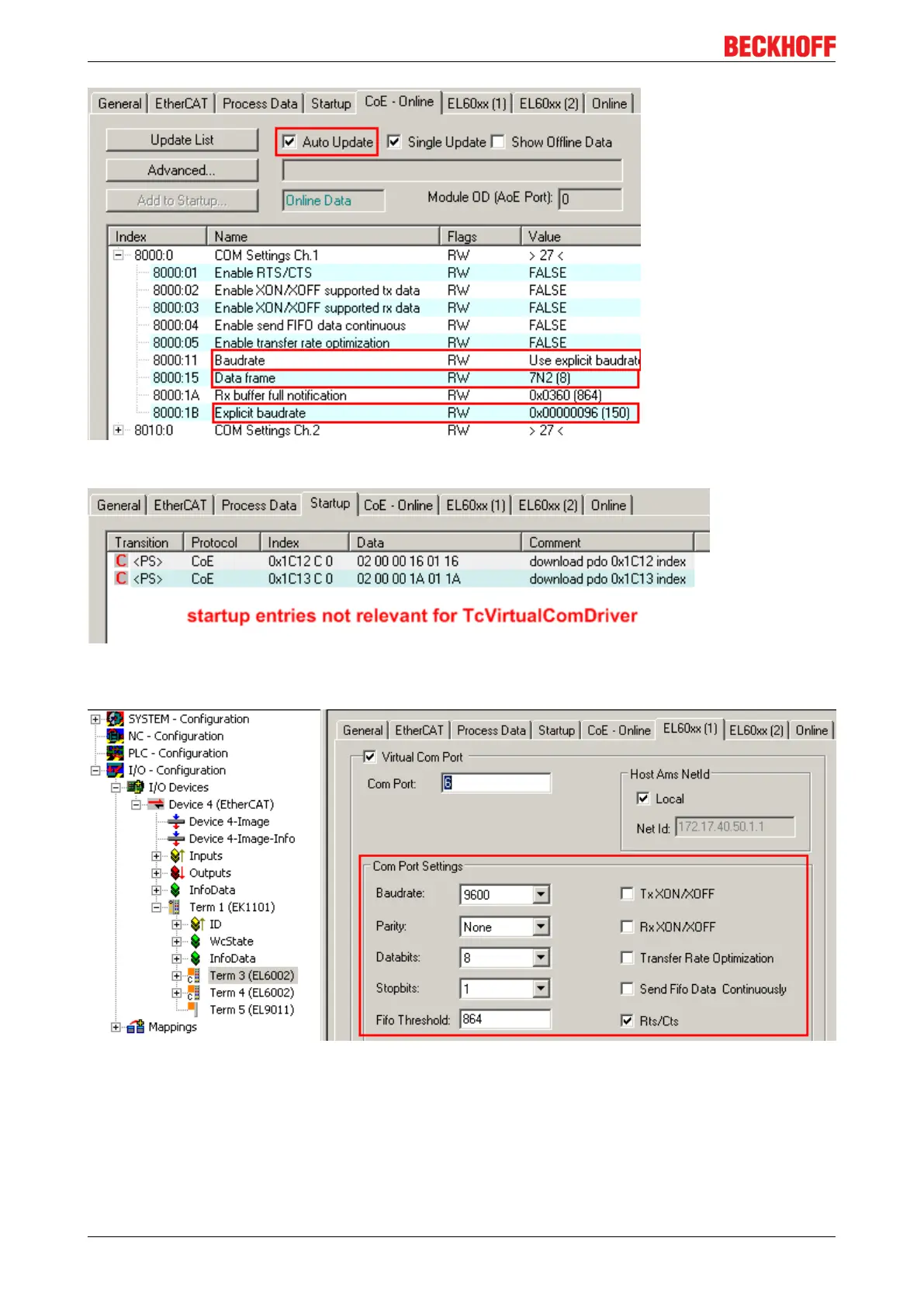

Fig.148: Checking the settings desired by the COM application in the CoE
Fig.149: Default startup entries of a EL6002 (example) – only the default entries (in this case 0x1C12 and
0x1C13) are required
Fig.150: VirtualComDriver Settings (example)
The settings are relevant only if no specification of the COM features is made or can be made from the
application. The COM port is opened with these default settings.
Exception: TransferRateOptimization, SendFifoDataContinously and FiFoThreshold are to be set only from
TwinCAT.
