Product overview
EL600x, EL602x 17Version: 4.6

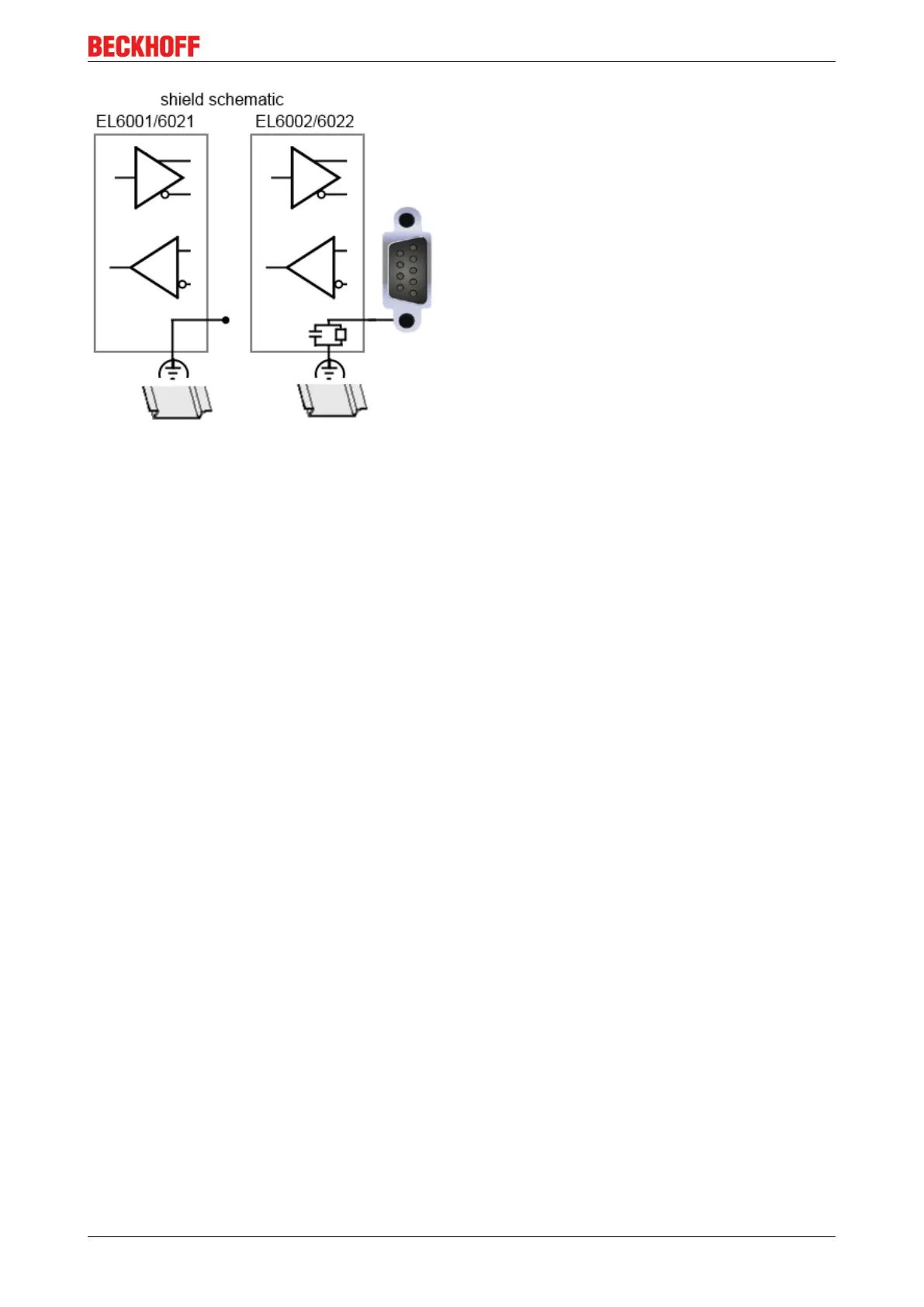

Fig.12: EL60xx shield connection
In the 2-channel versions the D-Sub 9 shield is connected with the mounting rail via a high-resistance RC
combination.
