Section VII
Systems Description
BEECHCRAFT Bonanza
V35, V35A & V35B thru D-9947
]=-,,,.., ..
==1-,- S000'1164to1218
f
TAKE-OFF &
CLIMB POWER
RANGE
~-1-000_·_1oo_s,_0_11_ss ______ ..t... __
75%918101020
65%810to900
SS%690to792
==:=}- 45%582to678
FUEL FLOW PPH
t
CRUISE
POWER
RANGE

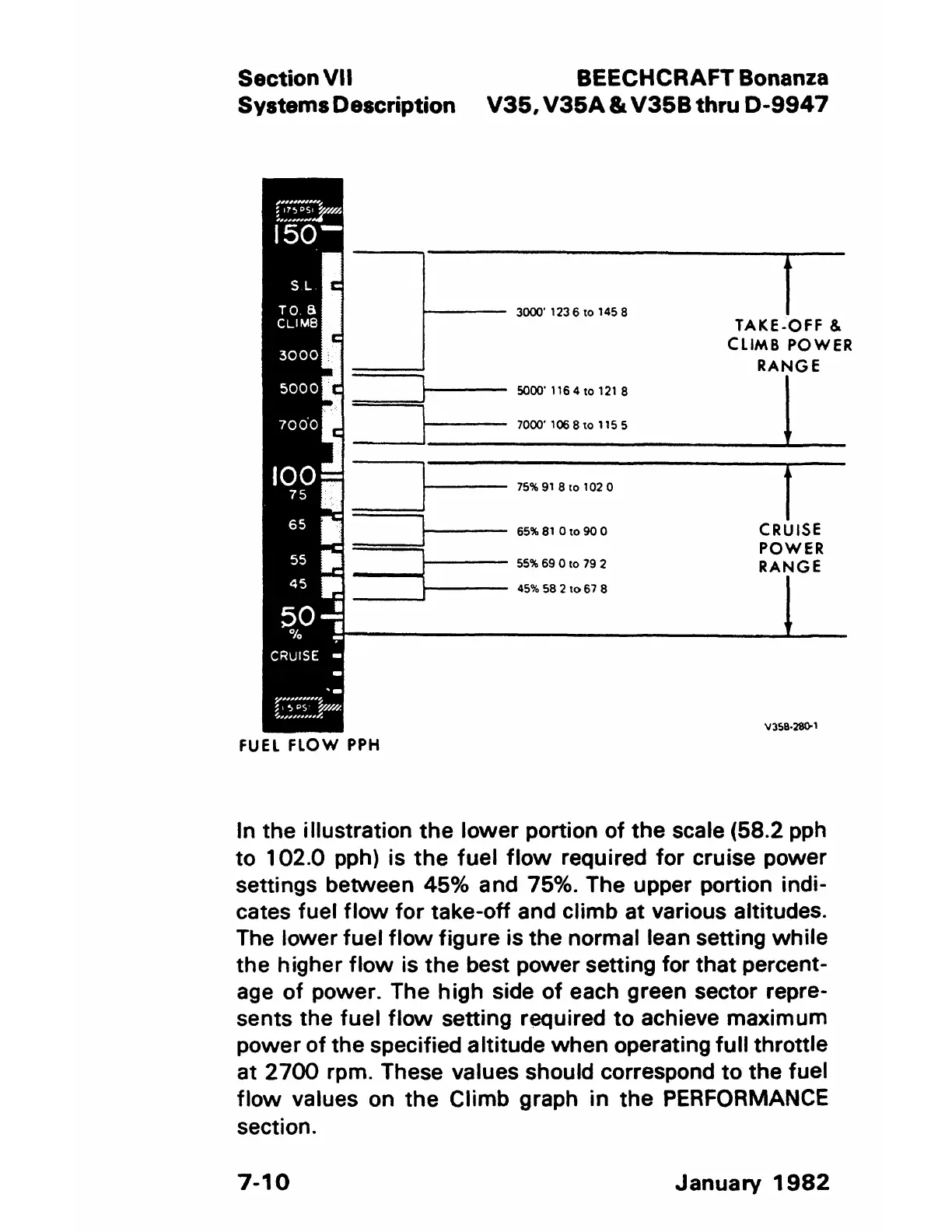

In the illustration the lower portion of the scale (58.2 pph
to 102.0 pph) is the fuel flow required for cruise power
settings between 45% and 75%. The upper portion indi-
cates fuel flow for take-off and climb at various altitudes.
The lower fuel flow figure is the normal lean setting while
the higher flow is the best power setting for that percent-
age of power. The high side of each green sector repre-
sents the fuel flow setting required to achieve maximum
power of the specified altitude when operating full throttle
at 2700 rpm. These values should correspond to the fuel
flow values on the Climb graph in the PERFORMANCE
section.
7-10
January 1982
